Name of parts
7
PMML0317A rev.1 - 11/2013
ENGLISH

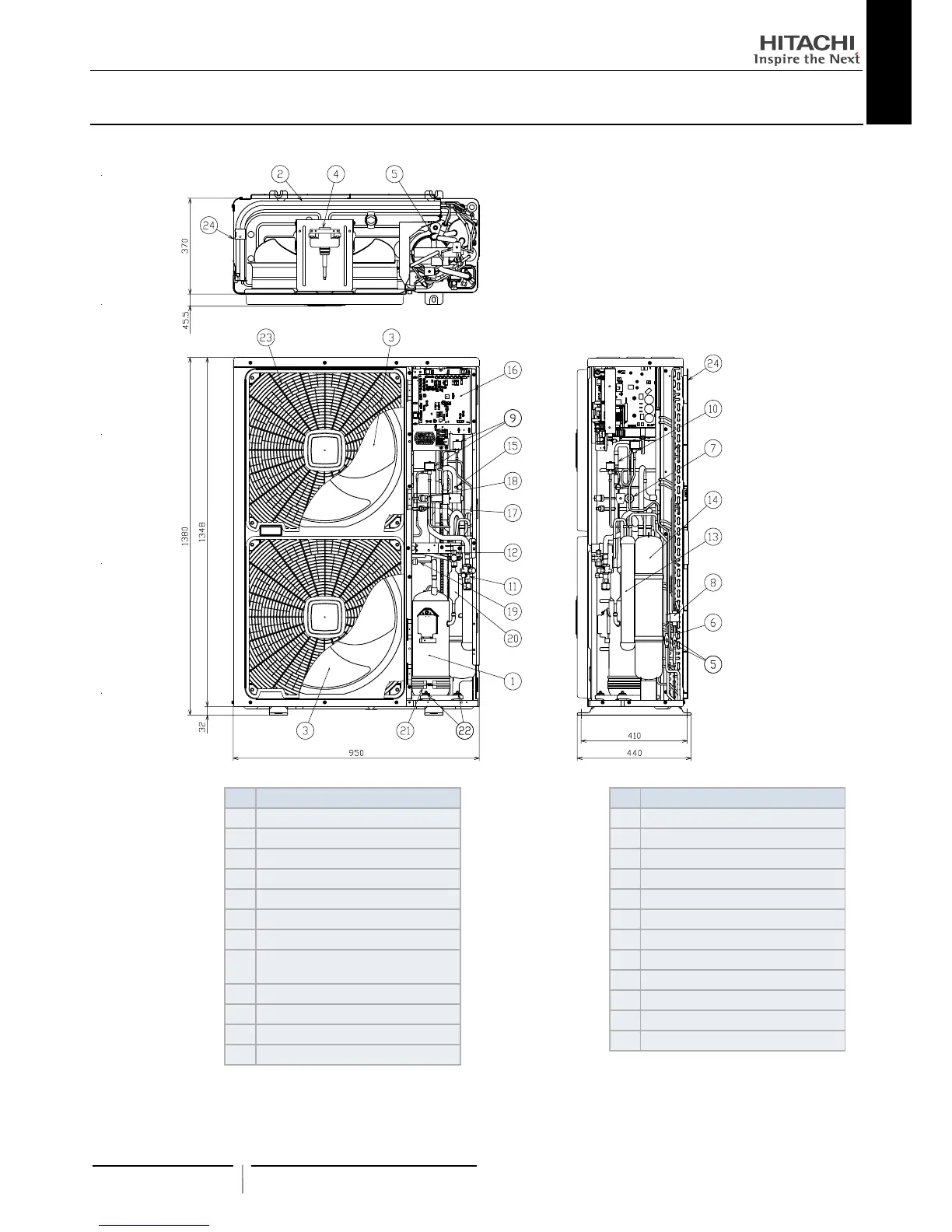

10.2 Example of RAS-(4-6)H(V)NP1E
No. Part Name
1 Compressor
2 Heat exchanger
3 Propeller fan (2pcs.)
4 Fan motor (2pcs.)
5 Strainer
6 Distributor
7 Reversing Valve
8
Micro-computer control expansion
valve
9 Solenoid valve
10 Check valve
11 Stop valve for gas line
12 Stop valve for liquid line
No. Part Name
13 Receiver
14 Accumulator
15 Check joint
16 Electrical box
17 High pressure switch for protection
18 Sensor for refrigerant pressure
19 Pressure switch for control
20 Silencer
21 Crankcase heater
22 Vibration absorbing rubber (4pcs.)
23 Air outlet
24 Air inlet
7T143459
