Hitachi RAS-8HNCE User Manual

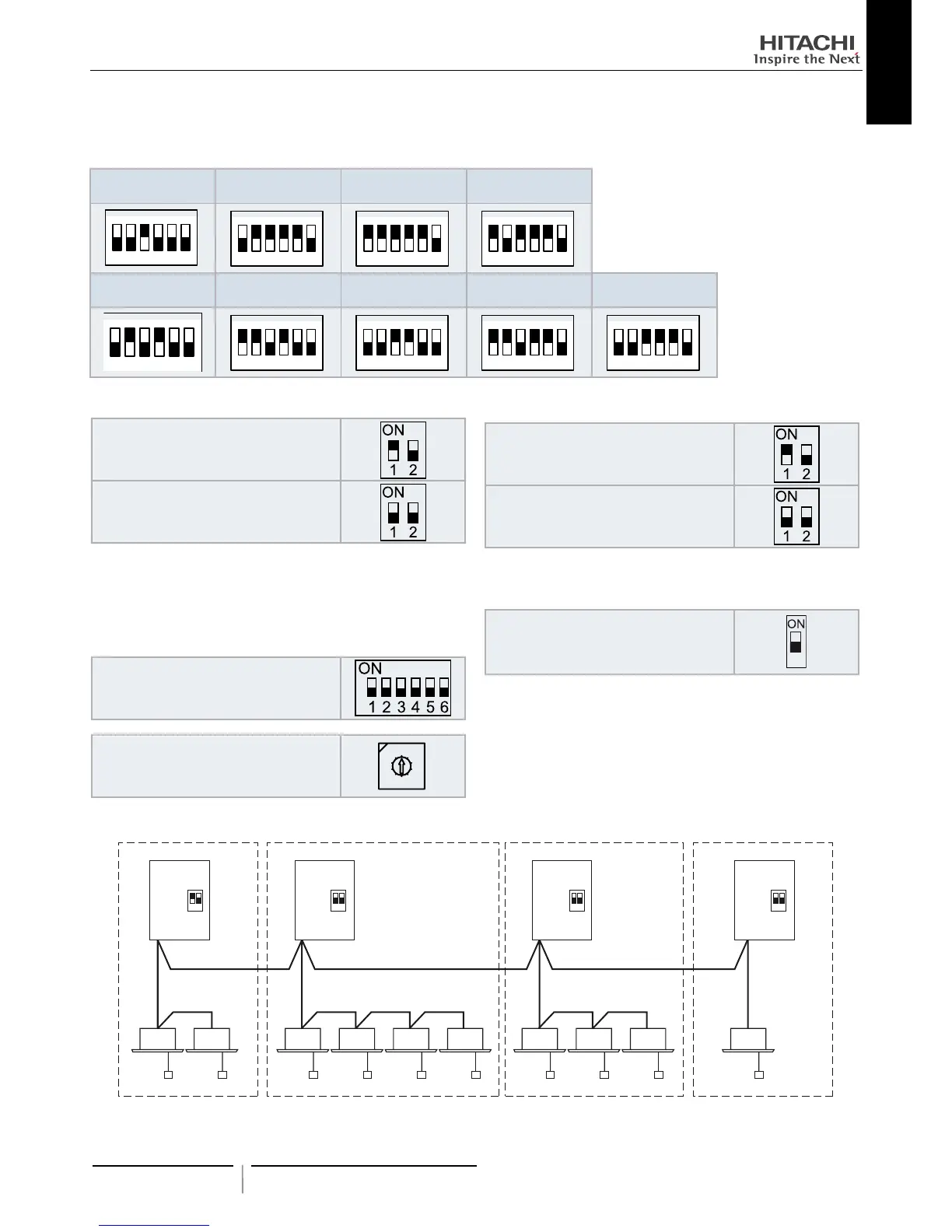

Electrical wiring
27
PMML0317A rev.1 - 11/2013
ENGLISH

DSW3: Capacity
Factory setting
RAS-3HVNP1E
RAS-4HVNP1E
RAS-4HVRNS3E
RAS-5HVNP1E RAS-6HVNP1E
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
RAS-4HNP1E
RAS-4HRNS3E
RAS-5HNP1E RAS-6HNP1E
RAS-8HNPE
RAS-8HNCE
RAS-10HNPE
RAS-10HNCE
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON

DSW5: Transmission Setting of End Terminal Resistance
Factory setting
Cancellation
In the case that the outdoor units quantity in the same H-LINK
is 2 or more, set No. 1 pin of DSW5 at “OFF” side from the 2nd
refrigerant group outdoor unit. If only one outdoor unit is used, no
setting is required.

DSW4 / RSW1: Refrigerant Cycle No. Setting
Factory setting
(Setting for the ten digit).
Factory setting
(Setting for the last digit).
0
9
8
7
6
5
4
3
2
1

DSW6: Optional function setting (IVX series only)
For individual operation
(factory setting position)
For IVX series
For simultaneous operation
DSW6: Only for ES series
Factory setting

Example of DSW5 setting
1 2
DSW5
1 2
DSW5
1 2
DSW5
1 2
DSW5
( H-LINK) ( H-LINK)
( H-LINK)
