9 Servicing
RPI-(0.6-6.0)FSN4E - Ducted indoor unit
SMGB0099 rev.0 - 12/2016
292

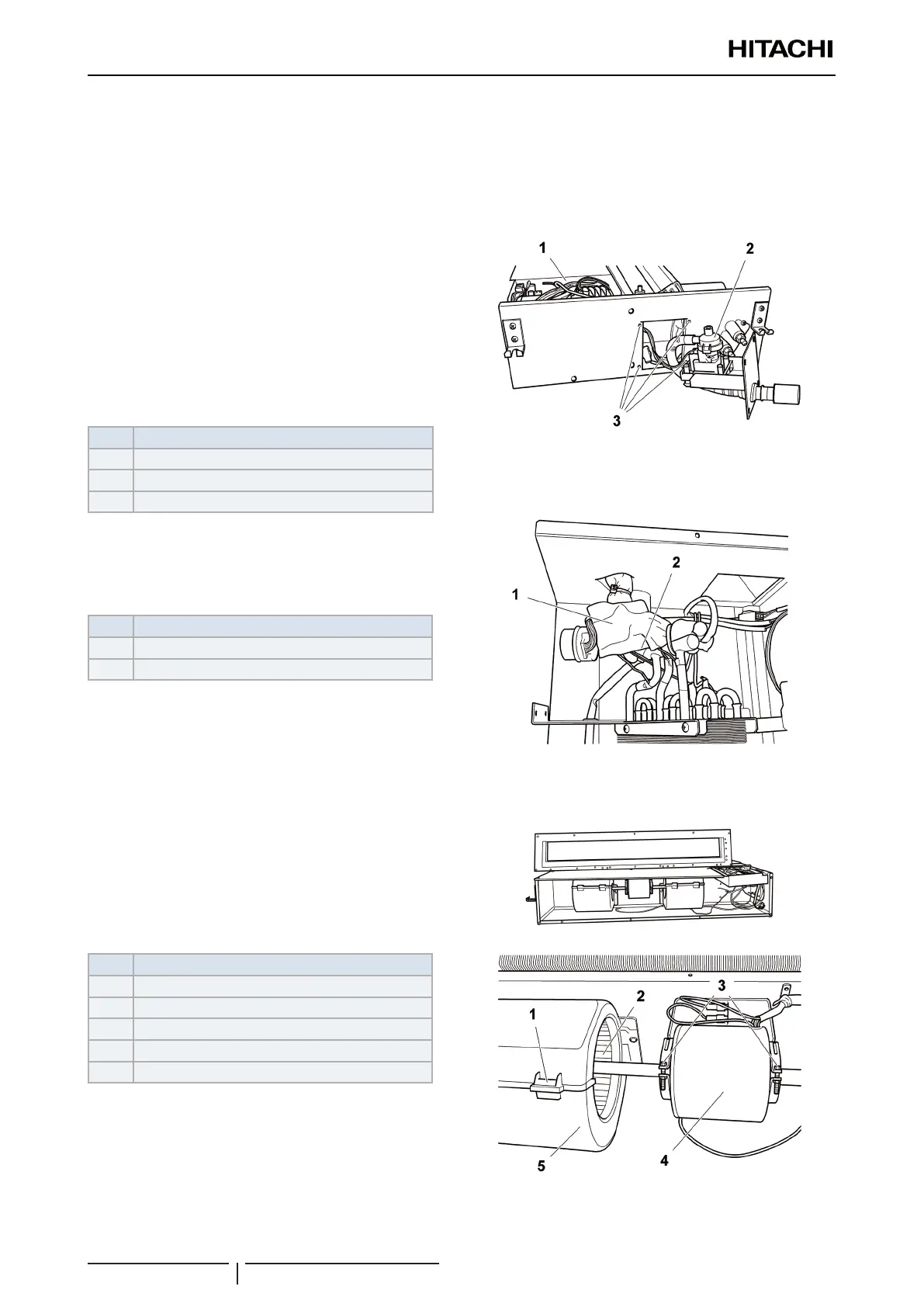

9.6.3  Removal of the thermistors from the liquid and gas pipes
? NOTE
•  To disconnect and remove the appropriate thermistor, previously
see the chapter corresponding to the wiring diagrams in this
Manual.
•  Cover the thermistors with cork tape or pipe insulation,
depending on the location. Both materials are factory-supplied.
Replace them if damaged during maintenance work.
1  Remove the electrical box cover.
2  Remove the service cover.
The liquid and gas pipe thermistors are secured to the
copper piping by a special clamp.
•  Liquid pipe thermistor: covered with cork tape.
•  Gas pipe thermistor: covered with pipe insulation.
Nº Part
1 Electrical box
2 Drain pump
3 Screws
? NOTE
•  Black connector: liquid thermistor.
•  Yellow connector: gas thermistor.
Nº Part
1 Location of the thermistor
2 Location of the thermistor
9.6.4  Removal of the fan parts
Fan parts: fan motor, fan casing and duct.
Nº Part
1 Locks
2 Duct
3 Fixture supports
4 Fan motor
5 Fan casing
