Hitachi RCI-4.0FSN4 - RPF(I)-(1.0-2.5)FSN2 E - Floor and Floor Concealed Type

9 Servicing
RPF(I)-(1.0-2.5)FSN2E - Floor and Floor concealed type
SMGB0099 rev.0 - 12/2016
332
9.10 RPF(I)-(1.0-2.5)FSN2E - Floor and Floor concealed type

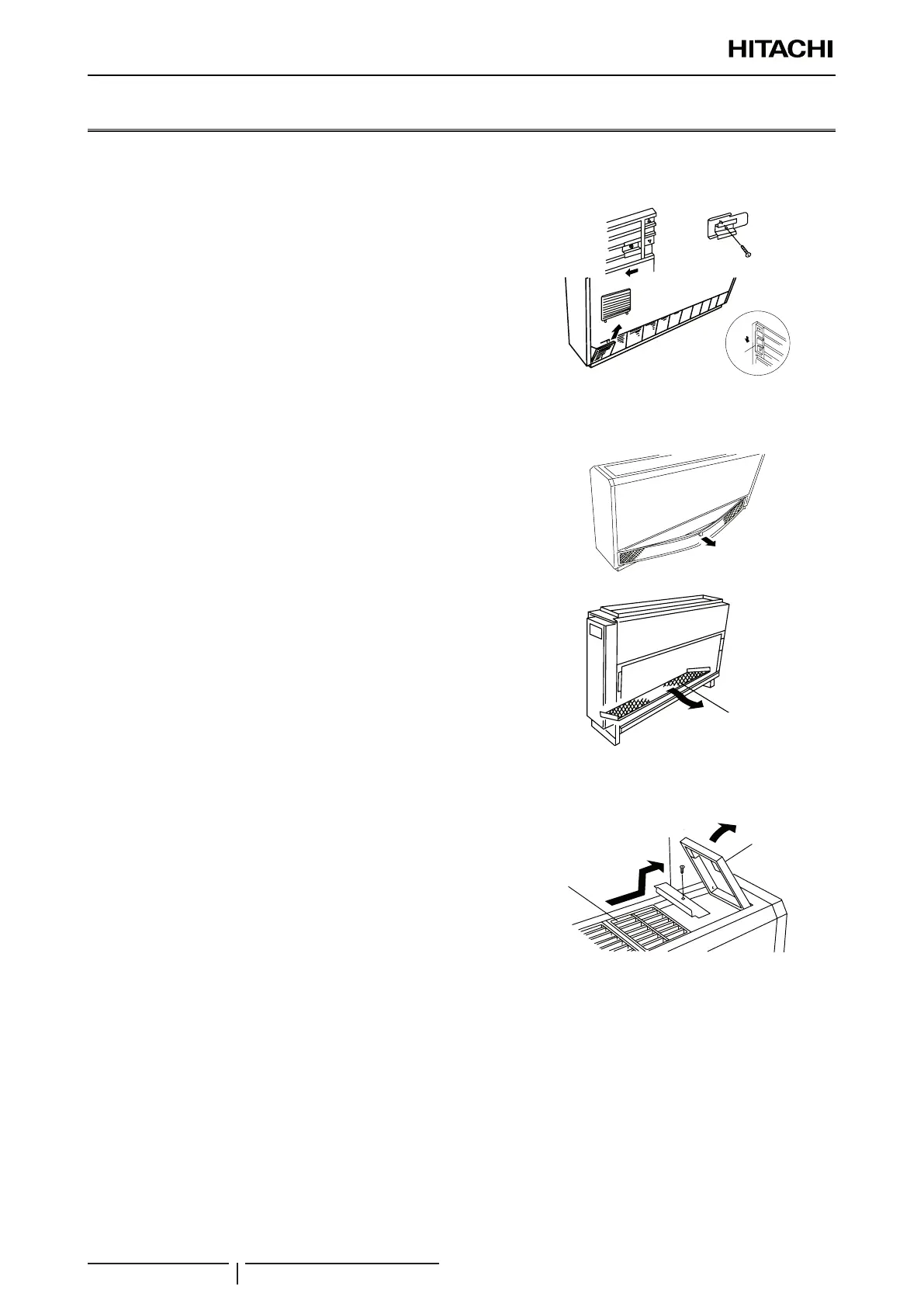

9.10.1 Removal of the air inlet grille
RPF-(1.0-2.5)FSN2E
1 Loosen the screws on the securing plate of the right part of the
grille then remove the plates.
2 Press the button on both sides of the grille in the direction
indicated by the arrow. The grille can be opened at a 30° angle.
3 Remove the air inlet grille from the hinges.
Knob
9.10.2 Removal of the air lter
RPF-(1.0-2.5)FSN2E
The air lter is located inside the air inlet grille.
1 Remove the air inlet grilles as indicated in section “9.10.1
Removal of the air inlet grille”.
2 Remove the lter by pulling the lter button.
Air lter
9.10.3 Removal of the air outlet grille
RPF-(1.0-2.5)FSN2E
1 Remove the screw holding the securing plate.
2 Open the upper panel so that it is vertical.
3 Slide and remove the air outlet grille.
Top panel
Fixing plate
Discharge air
grille
