9 Servicing
RPC-(3.0-6.0)FSN3E - Ceiling type
SMGB0099 rev.0 - 12/2016
279
9

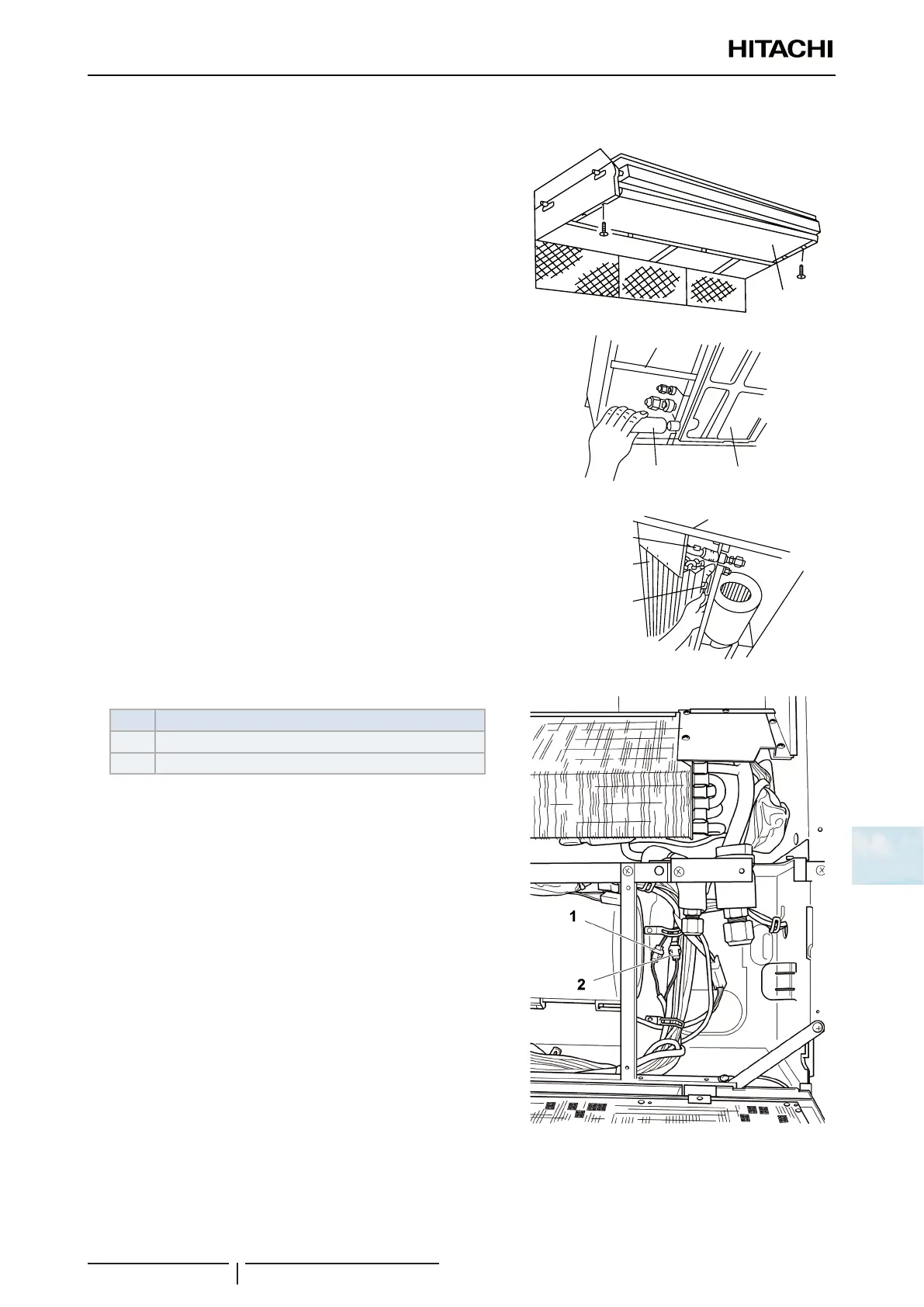

9.4.8 Removal of the thermistors from the liquid and gas pipes
1 Remove the side panel in line with the instructions given in
chapter “9.4.2 Removal of the side panel”.
2 Remove the lower panel.
Lower panel
Stay
Drain hose Drain pan
3 Disconnect the drain hose and remove the drain pan.
Side panel
Thermistor for the
liquid pipe
Thermistor for the
gas pipe
Heat exchanger
4 Remove the thermistors from the liquid and gas pipe.
Nº Part
1 Gas thermistor (yellow connector)
2 Liquid thermistor (black connector)
