2 Unit installation
RCI - 4-way cassette
SMGB0099 rev.0 - 12/2016
26

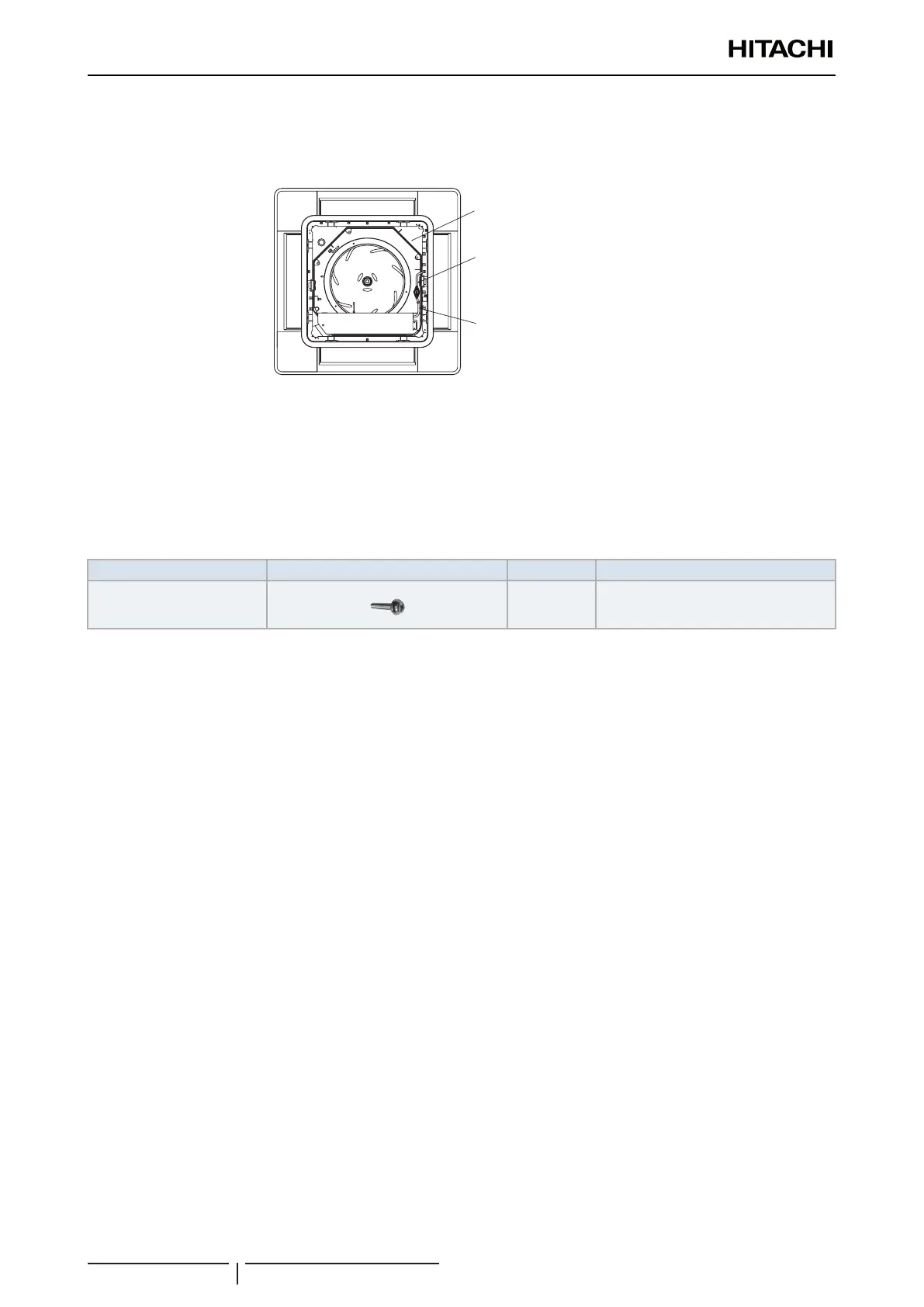

Electrical connection of the air panel
1 The following connectors are used in the air panel. Remove the tape xing the wiring connectors on the air panel and
pull out them as shown in the gure below. Connect them with the wiring connectors on the indoor unit.
>PS<
HS-HB
Electrical box
Motor wiring for auto louver
(on air panel) (connector for
low voltage: 18 poles, white)
Motor wiring for auto louver (on
indoor unit) (Connector for low
voltage: 18 poles, white)
Condition without air
intake grille
2 After completing the wiring connection of the air panel, attach the air inlet grille. Perform the attaching work in the
reverse procedure of removing.
2.1.4 Accessories supplied with the air panel P-N23NA2
Check that the following accessories are supplied with the unit.
? NOTE
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Long bolt (M6 x 50)
4 For panel xing
