10.3.13 Removal of the automatic louver motor
Remove the optional air panel in line with the instructions given in
chapter Removal of the air optional air panel.
Separate the connector from the AS motor.
Remove the screw securing the louver and one set screw on the
AS motor.
Remove the AS motor, pulling carefully with the louver and then
sliding it out.

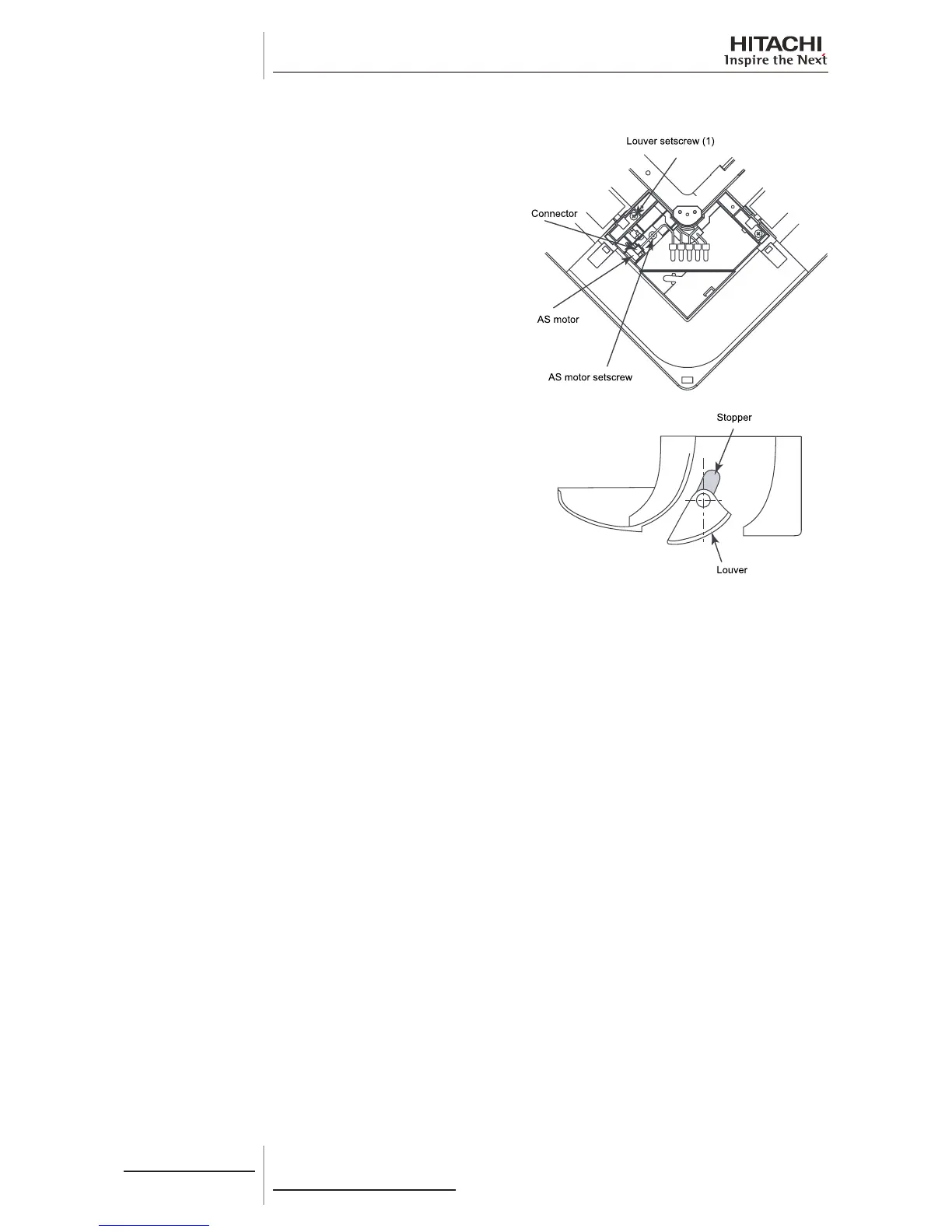

After removing the AS motor, reîš¿t the louver adjusting the stop
position as indicated in the îš¿gure: cut D on the shaft of the AS
motor must coincide with cut D on the louver.
