4-5-6. How to remove CIVCO biopsy needle guide and CIVCO bracket
Remove the CIVCO biopsy needle guide and CIVCO bracket from the probe according to the
instruction manual.
Dispose the used CIVCO biopsy needle guide and CIVCO bracket in a manner that prevents infection
and in accordance with the rules of the medical facility.
4-5-5. How to puncture using CIVCO bracket
(1)Attach the CIVCO bracket to the probe according to the instruction manual of CIVCO bracket.
(2)Attach the transducer cover to the probe according to Section 4-5-1.

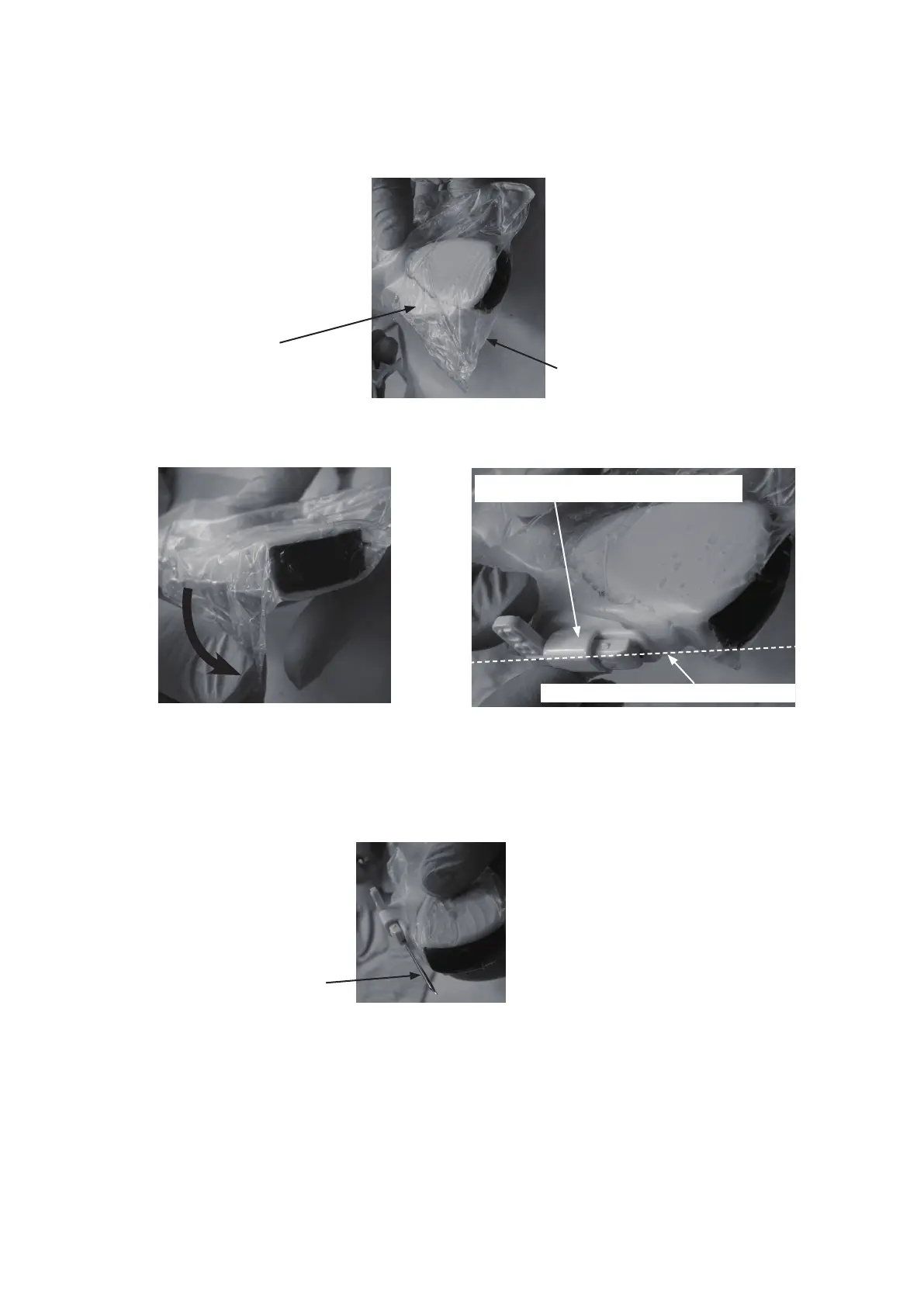

CIVCO bracket
(Inside transducer cover)
(3) Tuck in any part of the transducer cover that may be protruding and attach the CIVCO biopsy
needle guide. Attach the CIVCO biopsy needle guide according to the instruction manual.
Tuck in any part of the transducer cover
that may be protruding.
Attach the CIVCO biopsy needle guide to the probe
and nip the transducer cover protruding by CIVCO
bracket to prevent the contact of the puncture needle
tip to the transducer cover.
(4) Verify the puncture needle does not touch the transducer cover.
Puncture needle
CIVCO biopsy needle guide
Puncturing root of puncture needle
Transducer cover
(5) Verify that there is nothing wrong with the transducer cover before puncturing.
Do not use the transducer cover if there is visible damage, such as a tear, and throw away the
transducer cover.
