English
17
4. Mounting
(1) Get rid of dust around the cutter installing section and clean it up.
(2) Align the hole of a new cutter and the position of a pin, and insert into the installing
section.
(3) Also replace the hexagon socket bolt (packed along with the cutter) with a new one
simultaneously, completely tighten it using the attached Allen key, and then fix the
cutter.
CAUTION:
Install the cutter and accessories securely according to the instruction manual. If you fail
to install them properly, they may come off and cause an injury.
Be sure to unplug the power cord from the receptacle when the cutter is checked,
cleaned, and replaced. Failure to do so can result in a serious injury.
HOW TO USE (BENDING)
1. Setting bending angles by setting dial.
The bar can be bent according to the angles indicated on the setting dial, as shown in Fig.
12.
In bending the rebar of #3(3/8"), #4(1/2"), and #5(5/
8") diameters, a difference takes place in the bending
angle even in the same dial position depending
upon the difference of rebar's thickness. Slightly
change a position of the setting dial depending
upon the rebar's diameter even with the same
bending angle as shown in Fig. 13.
NOTE
Even at the same dial setting position, the bending angle can sometimes differ if the diameter
or hardness of the rebar is different. Use the angle marks merely as a rough guideline.

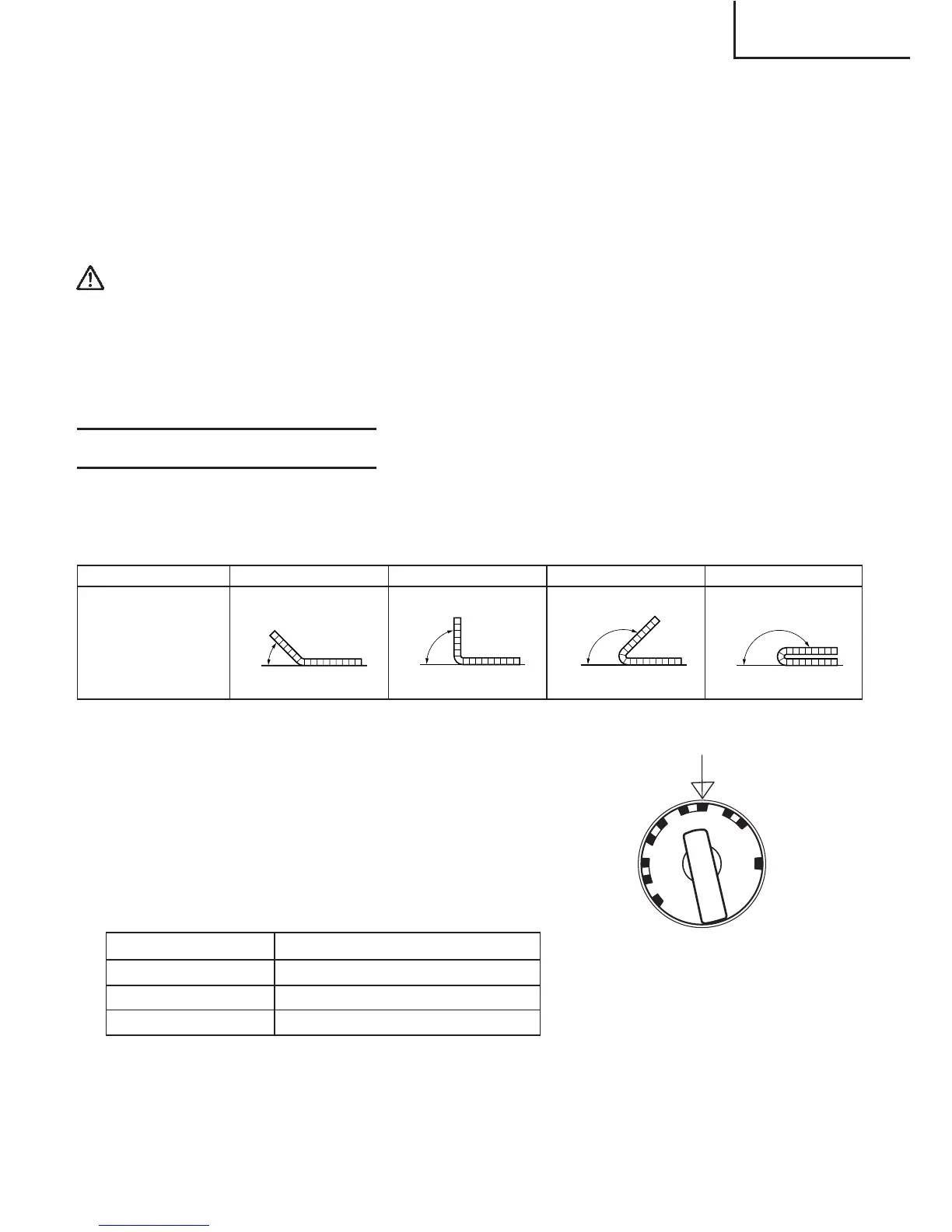

Fig. 12
Condition of rebar
Dial indication 45° 90° 135° 180°
180°135°90°45°
Fig. 13
Adjusting position
Size of rebar Colors of indicated marks
#3(3/8") White
#4(1/2") Red
#5(5/8") Yellow
0˚
RETURN
CUT
45˚
90
˚
135˚
180˚
