Port assignments for the back-end module
Number Port 0 Port 1
DKB-01D 01D-0 01D-1
DKB-01H 01H-0 01H-1
DKB-02D 02D-0 02D-1
DKB-02H 02H-0 02H-1
DKB-11D 11D-0 11D-1
DKB-11H 11H-0 11H-1
DKB-12D 12D-0 12D-1
DKB-12H 12H-0 12H-1

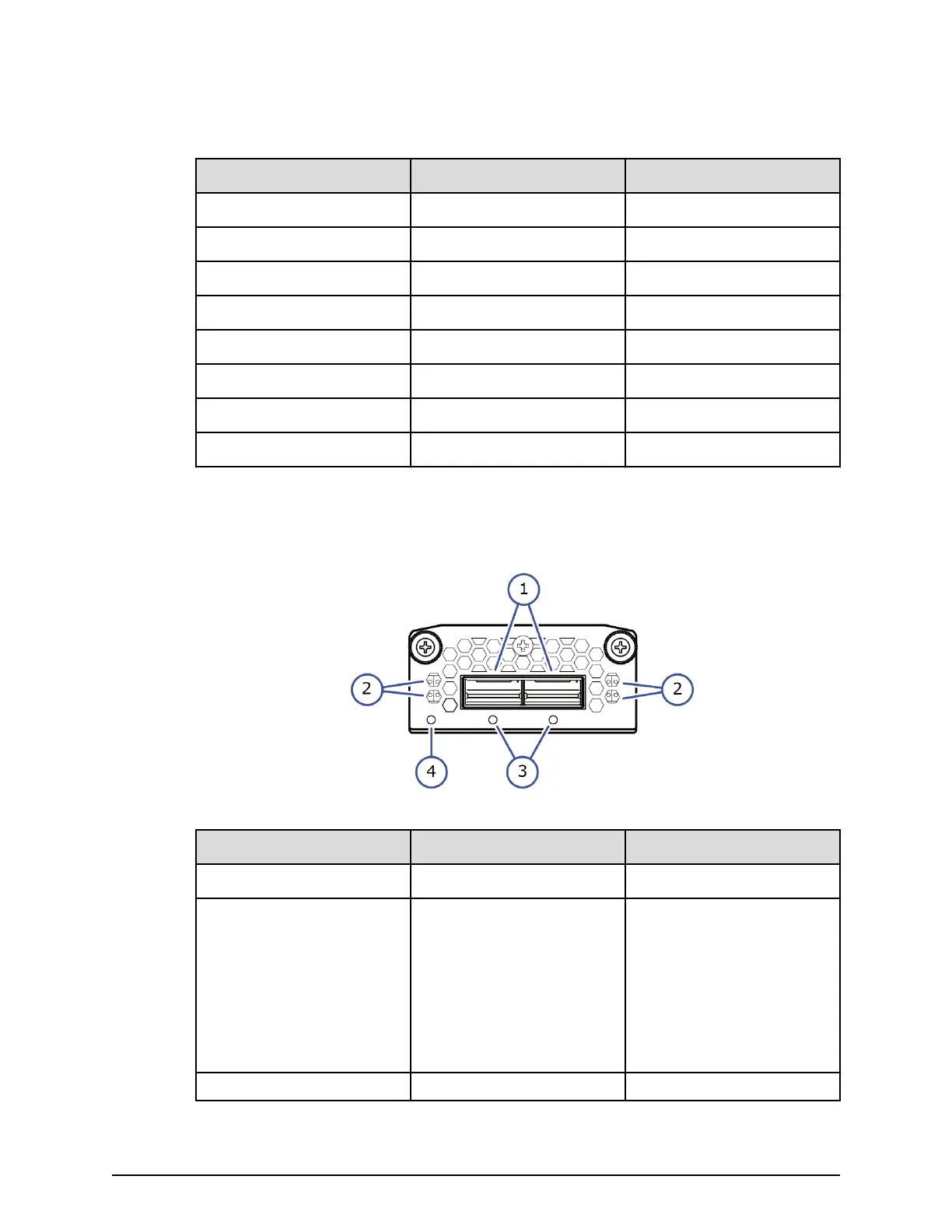

Fabric-acceleration module
Number Item Description
1 Ports
2 TBD Blinking (Yellow): The target
port is incorrectly
connected.
On (Yellow): Any of the
ports is incorrectly
connected.
Green: Not used.
3 PORT (LINK/LOCATE) On (Blue): Linked state.
Port assignments for the back-end module
Chapter 2: Hardware overview
Hitachi Virtual Storage Platform 5000 Series Hardware Guide 25
