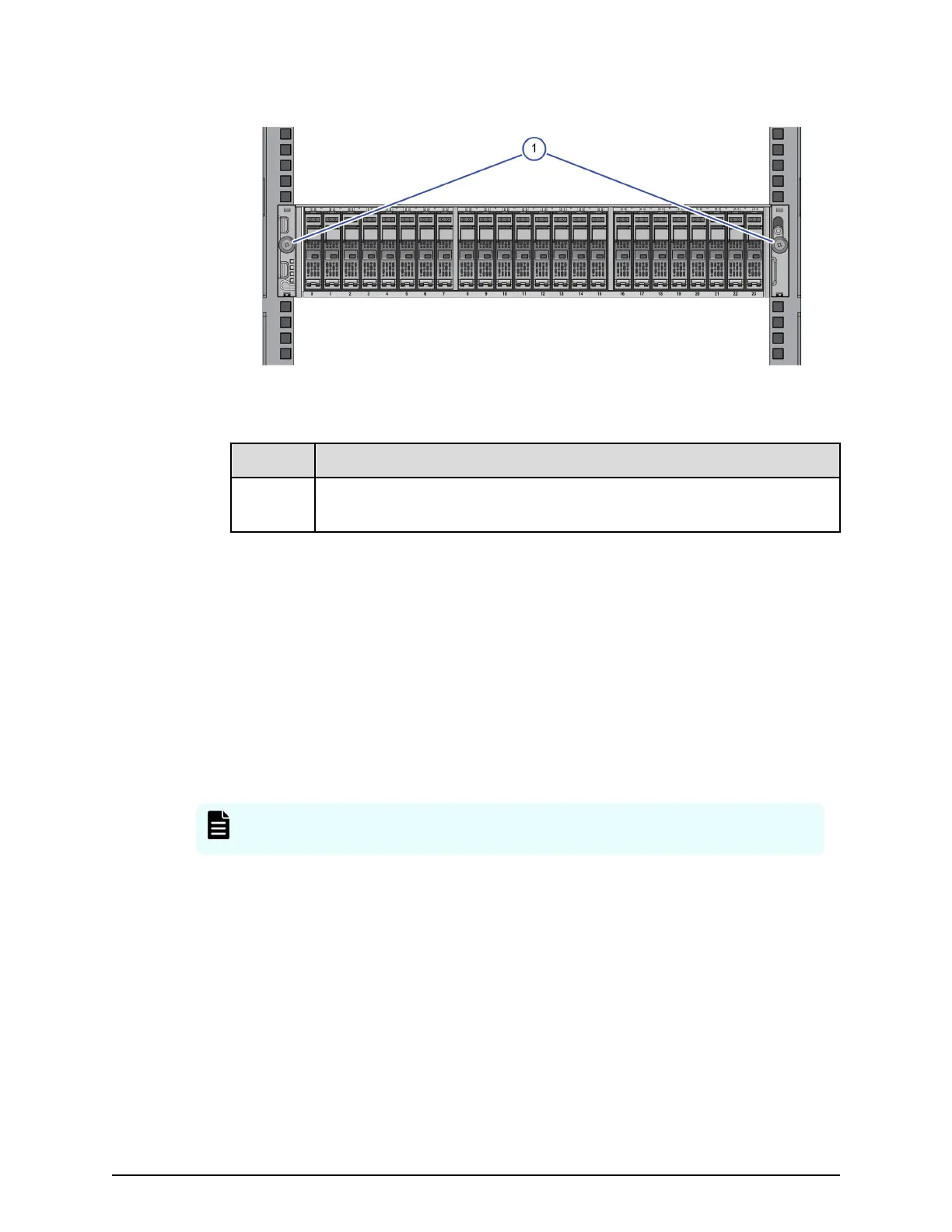

Item Description
1 Washers, O-rings, and screws securing the controller to the front of
the rack
Step 3: Connect the storage system to power
The storage system's input voltage is auto-adjusting for 100-120 (+6%) / 200-240 (-11%)
VAC, 50-60 Hz power connections. Power is provided through two power supplies, one
per controller.
For best practice, establish power redundancy by routing each power supply to
independent PDUs and then routing the PDUs to separate external power sources on
dierent branch circuits. This arrangement enables the storage system to continue
operating if AC power is lost to one power supply.
Note: Multiple outlets in a PDU or power strip do not constitute an
independent electrical source.
Procedure
1. Conrm that all power sources are o.
2. Connect an AC power cable to the power receptacle on the rear of each controller.
3. Route the power cables from each controller to separate PDUs, and then use the
pre-installed tie wraps at each controller power receptacle to secure the power
cables, as shown in the following gure.
Step 3: Connect the storage system to power
Installing your storage system
Storage system installation (without SVP) 10
