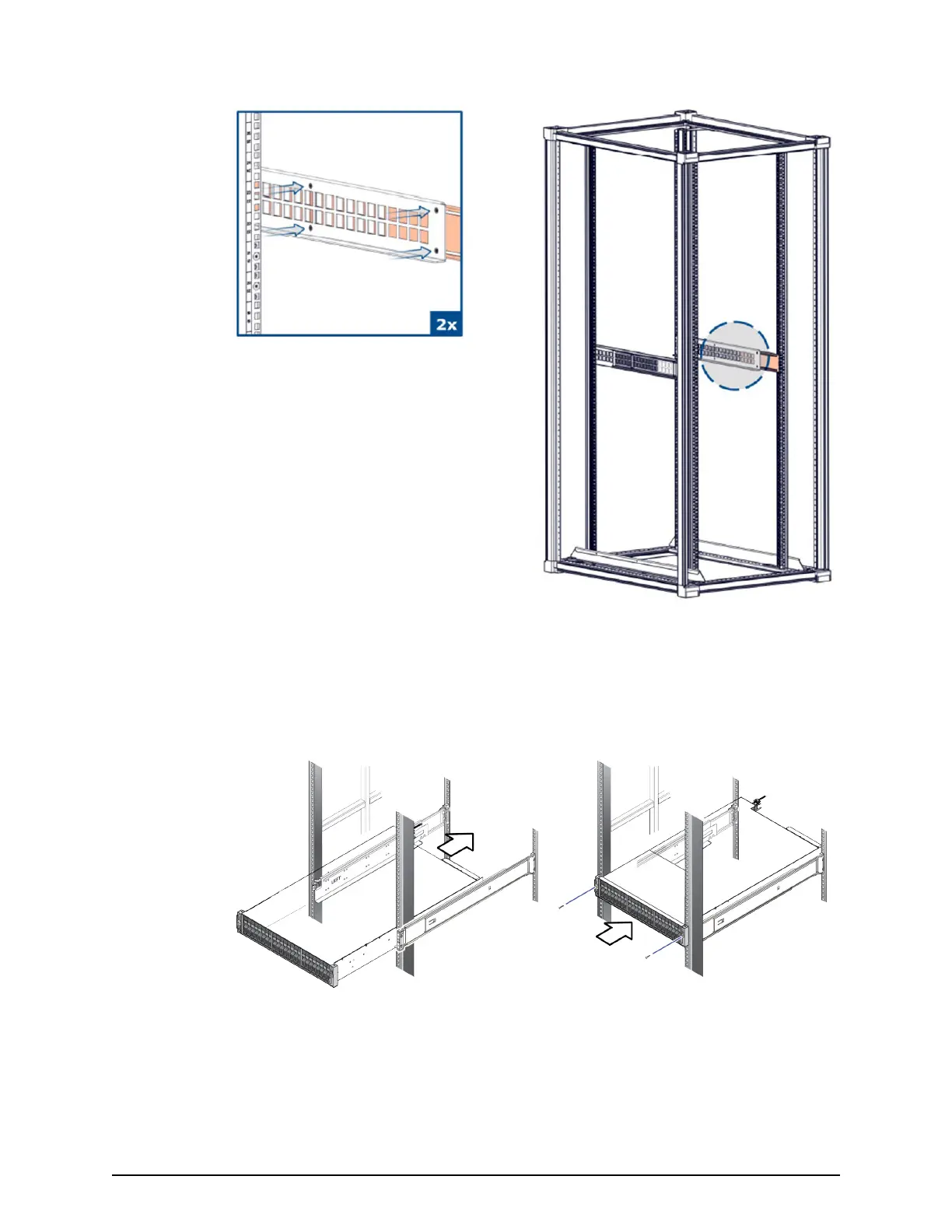

7. Repeat steps 1 through 6 to attach and secure the right mounting rail to the right
side of the rack.
8. Position the controller so the front faces the front of the rack, and then slide the
controller gently onto the rails. Stop sliding when the mounting anges on the front
of the controller touch the vertical face of the rack.
9. Find the washers, O-rings, and screws included with the bezel bracket mounting kit
(part number 043-100885-01.P). Then install a washer, O-ring, and screw (one per
side) between the mounting prole of the rack and the mounting "ears" of the
controller. The screw engages the threaded hole in the rail.
Step 2: Install the storage system into a rack
Installing your storage system
Storage system installation (without SVP) 8
