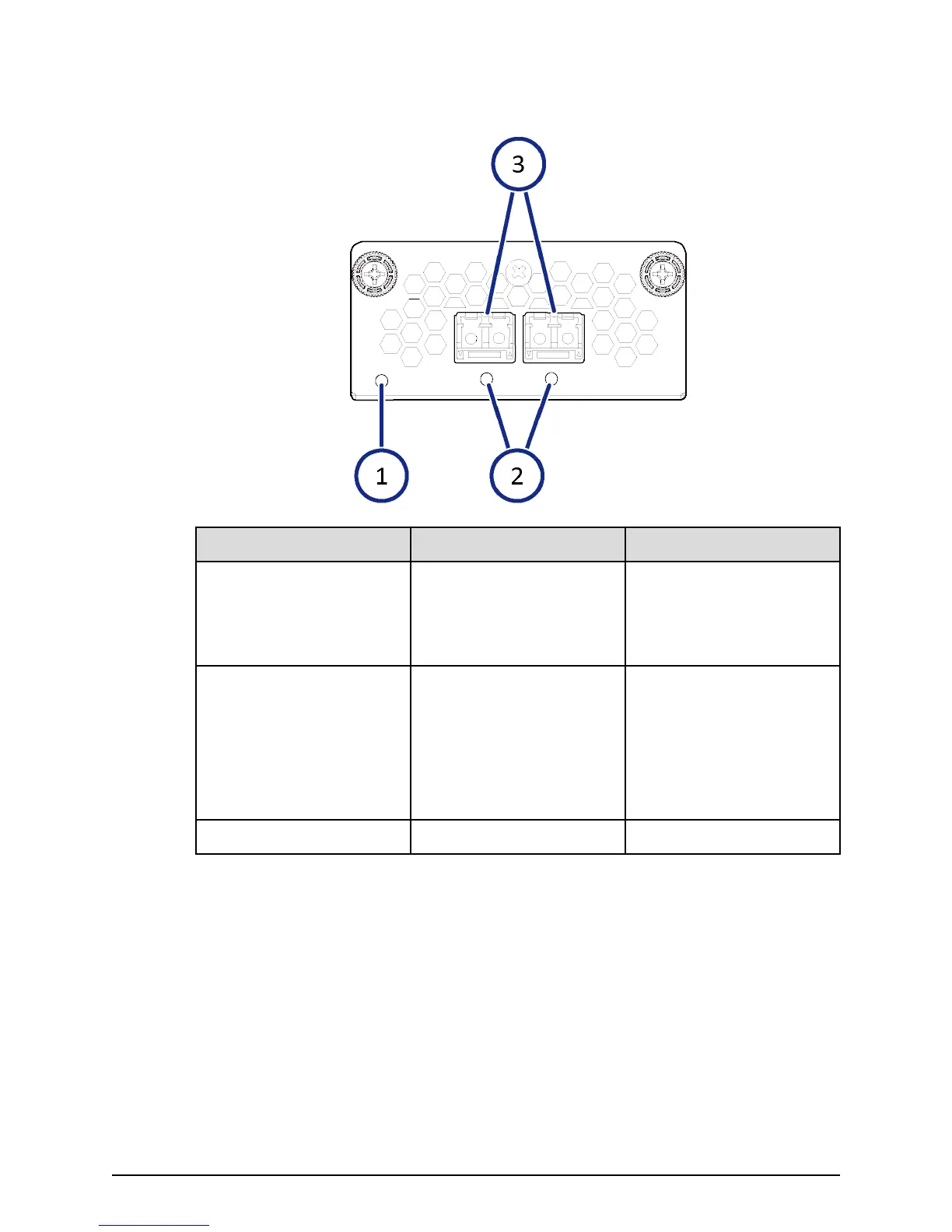

10-Gbps iSCSI board LEDs and connectors (optical)
Number Item Description
1 STATUS LED Green: Front end module is
in the power-on state.
Red: Front end module can
be removed safely.
2 PORT LED Red: Small form-factor
pluggable can be removed.
Blue: Normal link status.
Blink blue: Front end
module is in
communication status.
3 ISCSI connectors Connect to Ethernet cables.
10-Gbps iSCSI board LEDs and connectors (copper)
10-Gbps iSCSI board LEDs and connectors (optical)
Chapter 2: System controller
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 20
