Number Item Description
3 Locate LED Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned o by the
maintenance utility.
4 Lock Locks and unlocks the front
panel bezel by using the
supplied key.

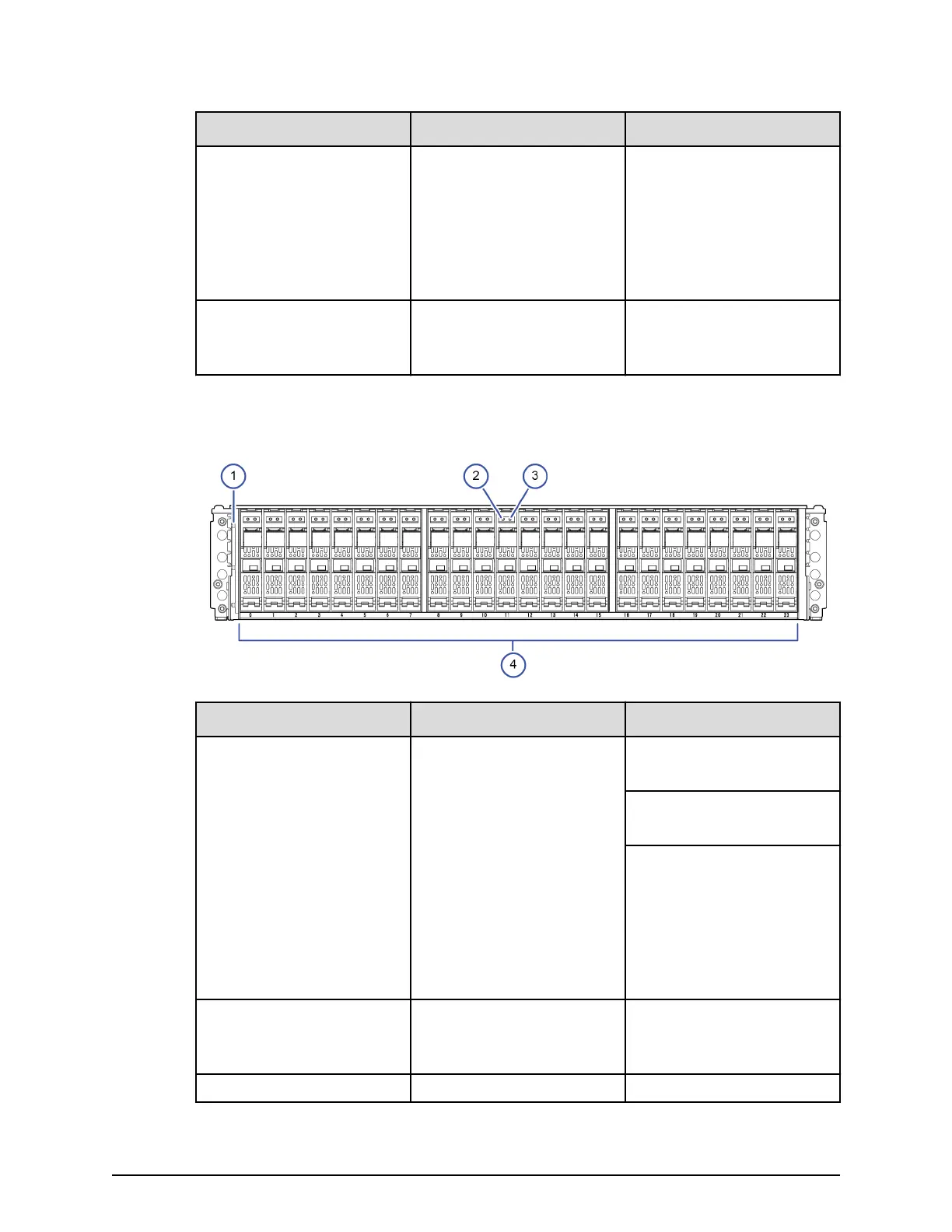

SFF front panel without bezel
Number Item Description
1 POWER, READY, and
LOCATE LEDs
Green: Drive tray is
powered on.
Green: Drive tray is
operational.
Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned o by the
maintenance utility.
2 ALM LED Red: Drive stopped due to
a failure and can be
replaced.
3 ACT LED Green: Normal operation.
SFF front panel without bezel
Chapter 3: Drive trays
Hitachi Virtual Storage Platform G350, G370 Hardware Reference Guide 34
