OPERATOR'S STATION
1-105

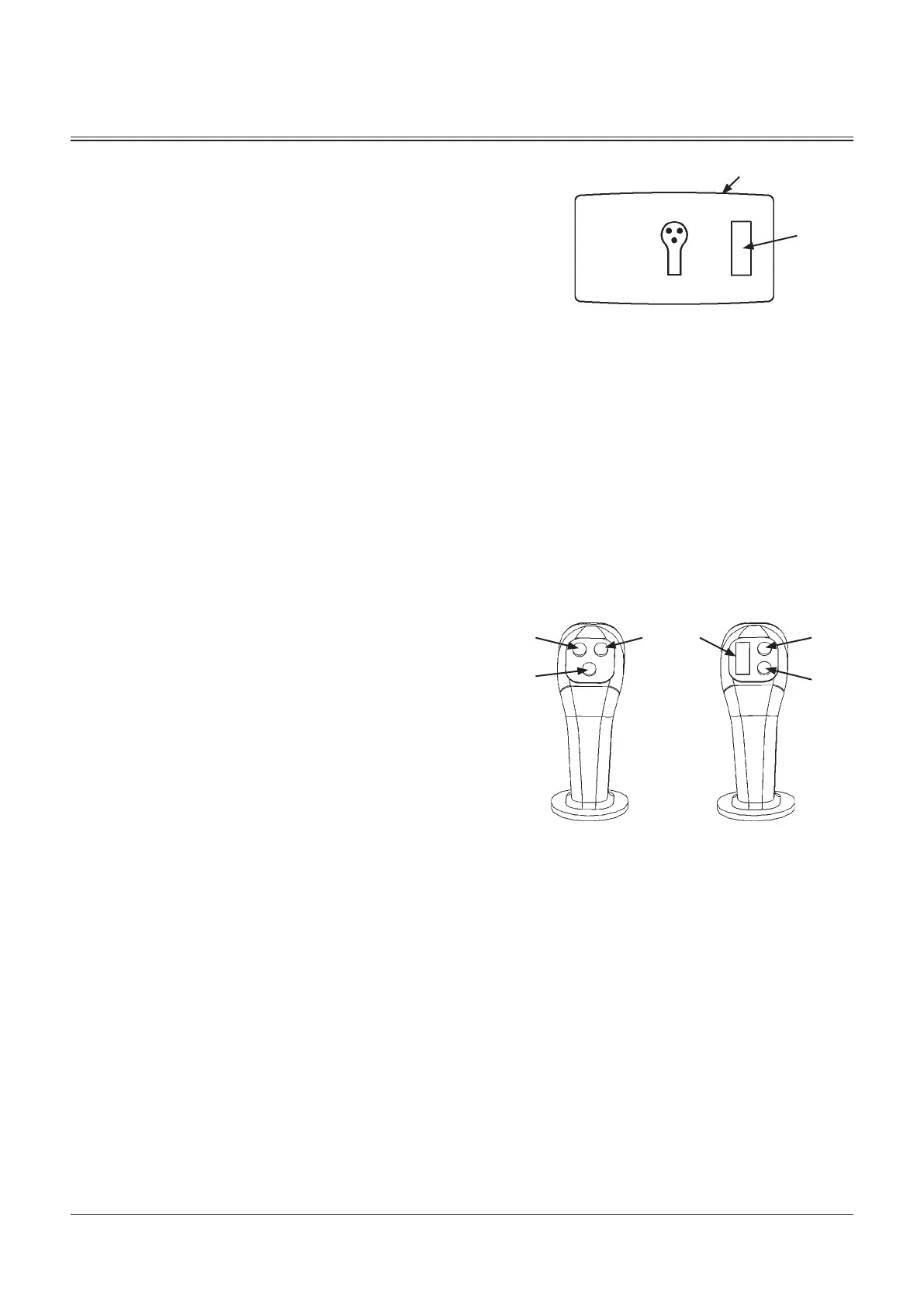

Electrical Control Main Switch (Optional)
Attachment Switch (Assist Operation) (Main Operation)
This switch (1) is mainly used for optional devices and
attachments with a rotary or a tilt function. The attachment
becomes operable when electrical control main switch (1) is
pushed and main switch indicator (2) is lit.
IMPORTANT: The attachment switch is operable only
when indicator (2) of electrical control main switch (1)
is lit. Indicator (2) will not light unless the pilot control
shut-off lever is in the UNLOCK position. Indicator
(2) turns OFF and the attachment switch becomes
inoperable when the pilot control shut-off lever is
placed in the LOCK position while indicator (2) is lit. To
operate the attachment switch, place the pilot control
shut-off lever in the UNLOCK position, and then push
electrical control main switch (1) to turn indicator (2)
light ON.
AUX Function Lever 1
1. Auxiliary
2. Power Boost Switch
3. Attachment Switch (Assist Operation)
4. Auxiliary
5. Horn Switch
6. Auxiliary
MDAA-01-311
1
2
2
1
4
6 3
5
MCGB-01-030MDAA-01-337
Left Control Lever Right Control Lever
To Next Page
