OPERATOR'S STATION
1-52

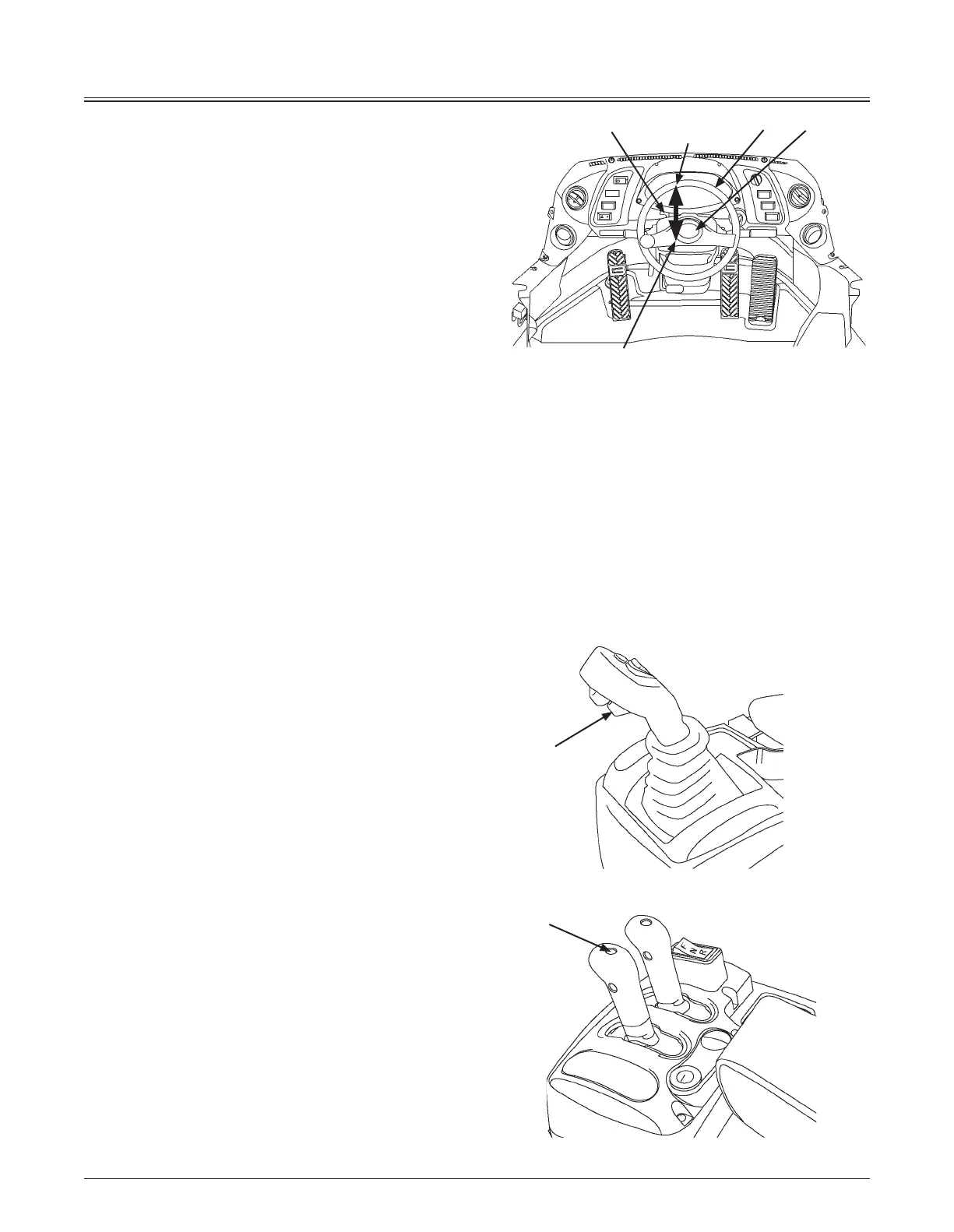

Neutral Lever Lock (for the Forward/Reverse
Lever)
d
WARNING: When the machine is parked or serviced,
be sure to place neutral lever lock (1) in the LOCK
position.
The neutral lever lock makes the forward/reverse lever
immovable so that the machine does not start moving even if
a body part comes in contact with the forward/reverse lever
by mistake.
Before starting the engine, set neutral lever lock (1) in the
LOCK position.
Pull : UNLOCK
Push : LOCK
Steering
IMPORTANT: When steering wheel (2) is fully turned, the
front and the rear frames come in contact with the
stoppers so that the steering wheel does not rotate
further. If the steering wheel is forcibly turned further,
the engine may stall or malfunction of the steering
system may result.
Horn Switch
Press horn switch (3) to sound the horn.
The horn switch is provided also on the control lever to
improve operator comfort.
Fingertip Control Type
Multi-Function Joystick Type
MNEC-01-042
MNEC-01-044
3
3
UNLOCK
LOCK
1 2
3
MNDB-01-001
To Next Page
