HITEC X1MF - Re-Peak Charge Mode; Discharging of NiMH;NiCd Batteries

21
X1 MF
NiMH/NiCD BATTERY PROGRAM
Elapsed
time
Charged
capacity
Battery
type
Charge
current
Battery
voltage
-
+
SELECT
Battery
type
Charge
current
Battery
voltage
Elapsed
time
Charged
capacity
Battery
type
-
+
> 3 seconds
Mode
Stop
SELECT
Press
Dial
Press
Dial

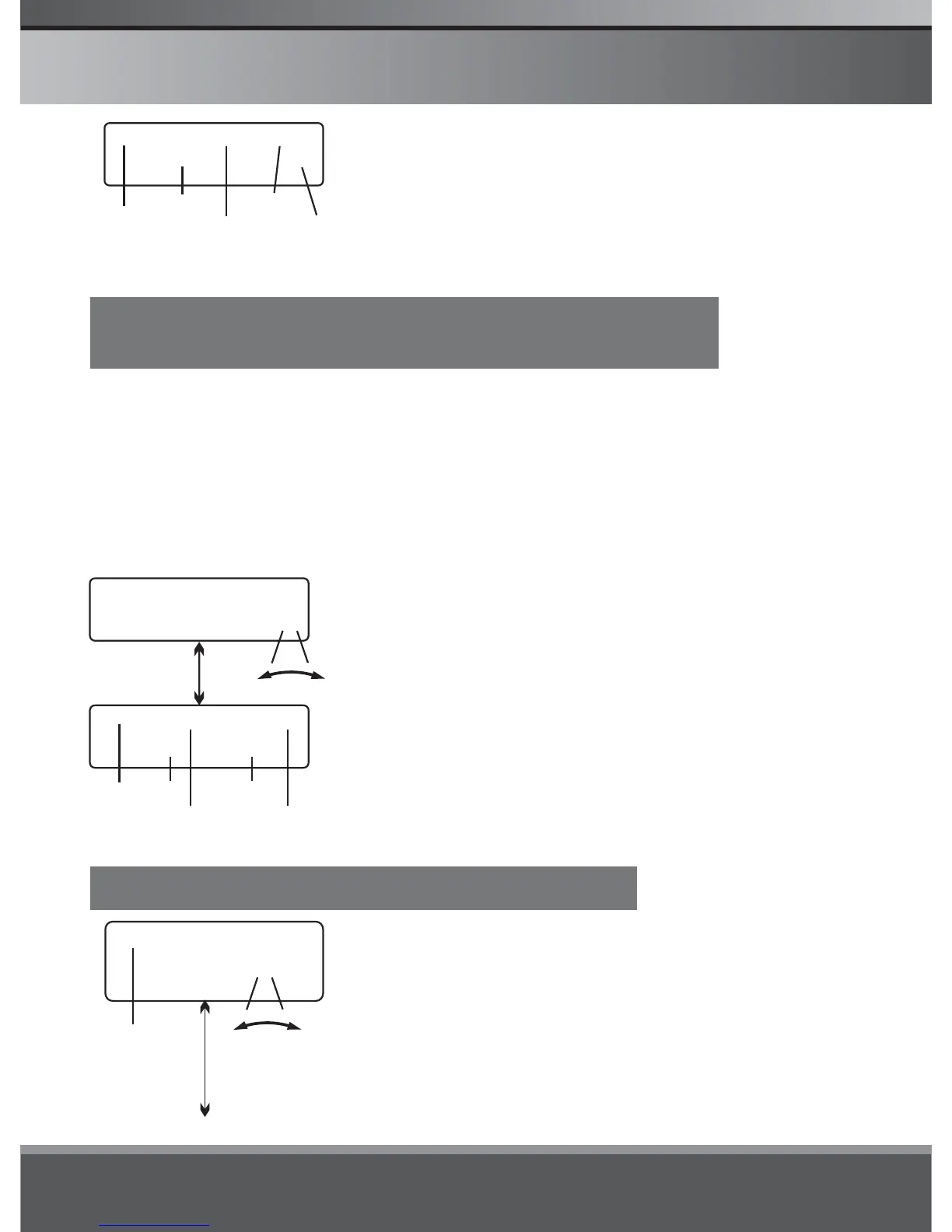

Applicable to NiMH and NiCd batteries only, in re-peak mode the
charger can peak charge the battery once, twice, or three times in a row
automatically. This process is good for confirming the battery is fully
charged and for verifying how well the battery can accept a fast charge.
A five-minute cool-down delay occurs after each re-peak charge. Press
the dial for 3 seconds to begin the re-peak process.
NiMH 2.0A 9.52V
AUT 000:13 00320
This screen displays the real-time status of
the charging process. Pressing the
Mode/Stop button once will end the charging
process and return you to the setup screen.
This screen displays the real-time status of the
re-peak process. Pressing the Mode/Stop
button once will end the re-peak process and
return you to the setup screen.
Set the discharge current on the left and the
final pack voltage on the right.
Discharge current range: 0.1 to 5.0A
Final voltage range: 0.1 to 25.2V
To start the process, press the dial for three
seconds.
NiMH RE-PEAK
1
Re-peak cycle number 1 is displayed on the
screen. Pressing the dial once will allow you to
scroll through and set up to 3 total cycles. Press
and hold the dial to begin the re-peak process.
NiMH 2.0A 9.59V
RPC 000:33 00017
NiMH DISCHARGE
0.1A CUT:1.0V
CHARGING NIMH/NICD BATTERIES IN RE-PEAK
CHARGE MODE
DISCHARGING OF NIMH/NICD BATTERIES
