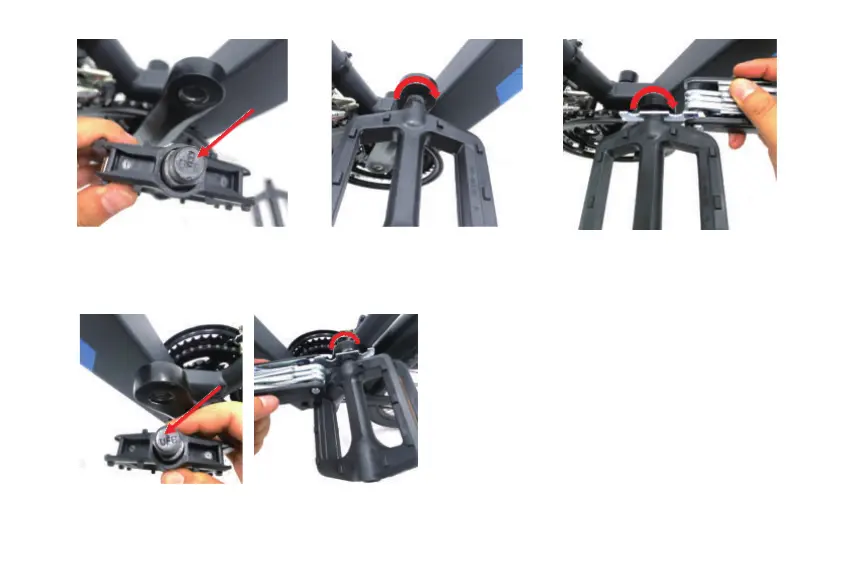

Right Pedal Installation Method:
The “R” marked on the pedal shaft means the right pedal. First, rotate the pedal shaft clockwise
to pre-screw it into the right crank with a chainring, and then use a No. 15 open-end wrench
clockwise to tighten it.
Left Pedal Installation Method:
The "L" marked on the pedal shaft means the
left pedal. First, turn the pedal shaft counter-
clockwise by hand to pre-screw it into the left
crank, and then use a No. 15 open-end
wrench to turn it counterclockwise to tighten it.
-9-
