HITWAY BK7 - Fender Support Rod Installation

4 5
6 7

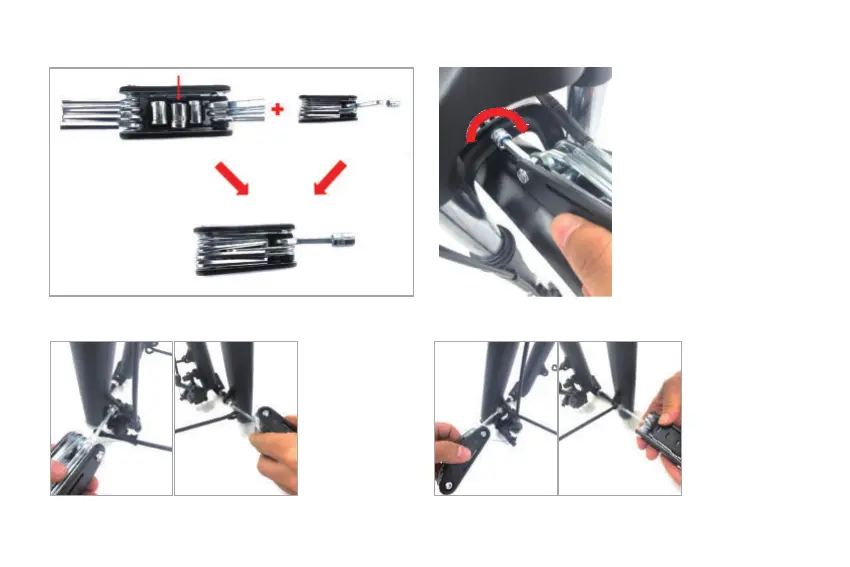

4. Take out the
10mm sleeve and
combine the
16-in-1 tool as
shown in the
picture.
5. Tighten the nut
with the combined
tool.
6. Use the No.
4 Allen key in
the 16-in-1 tool
to remove the
fender support
screws
pre-installed on
the left and
right sides of
the front fork.
7. Fix the front
fender support
rods to the
corresponding
screw holes of
the front fork
and use the No.
4 Allen key in
the 16-in-1 tool
to tighten the
screw.
-5-
