Hiwin HIMC User Manual

HIMC Installation Guide Wiring
3-2 HIWIN MIKROSYSTEM CORP.
MH07UE01-1911
3.1 Overview

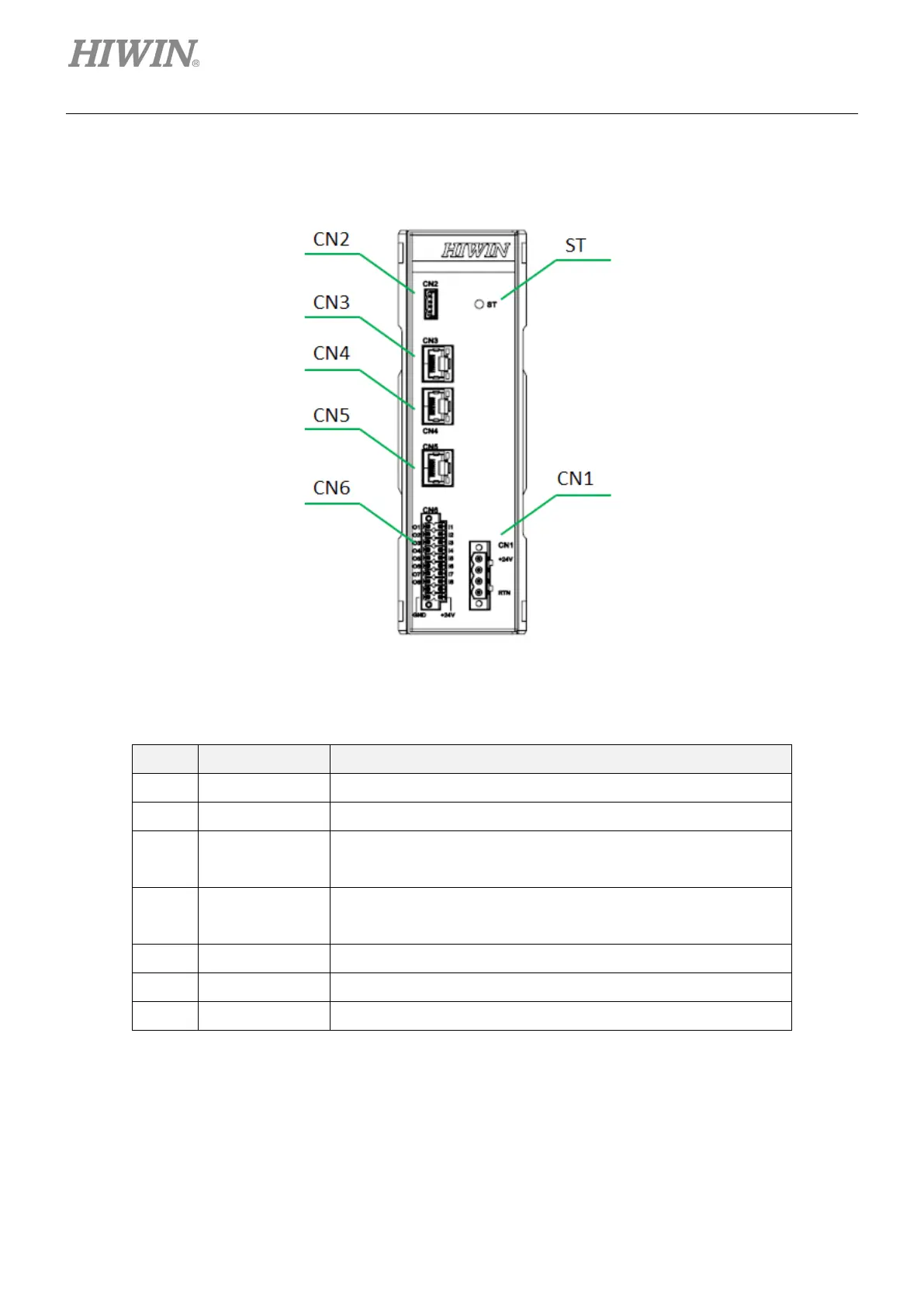

Figure 3.1.1 HIMC front panel
Table 3.1.1 Wiring overview
Item Connector Description
CN1 Phoenix 4 pin Power Input 24V
CN2 USB connector Update controller firmware
CN3 RJ45
Communication with customers’ PC or devices
(Default IP address: 0.0.0.0)
CN4 RJ45
Communication with customers’ PC or devices
(Fixed IP address: 169.254.188.20)
CN5 RJ45 Communication with mega-ulink over EtherCAT (MoE) slaves
CN6 Phoenix 20 pin Digital inputs/outputs
ST N/A Controller status
