HIMC Installation Guide Wiring
HIWIN MIKROSYSTEM CORP. 3-3
3.2 CN1 power input
REQUIRED
Use SELV or double insulated qualified power supply based on UL60950, UL61010-1 or UL61010-2-201
standard.
The power input connector (CN1) is suitable for AWG (American Wire Gauge) 18~22 (0.326~0.823 mm
2
).
With the rated load current, conductor limit temperature should be less than 60°C for operation.
Screw torque: 0.5N-m
Note: Make sure that the voltage of the DC power source is stable before connecting HIMC to DC power
input.

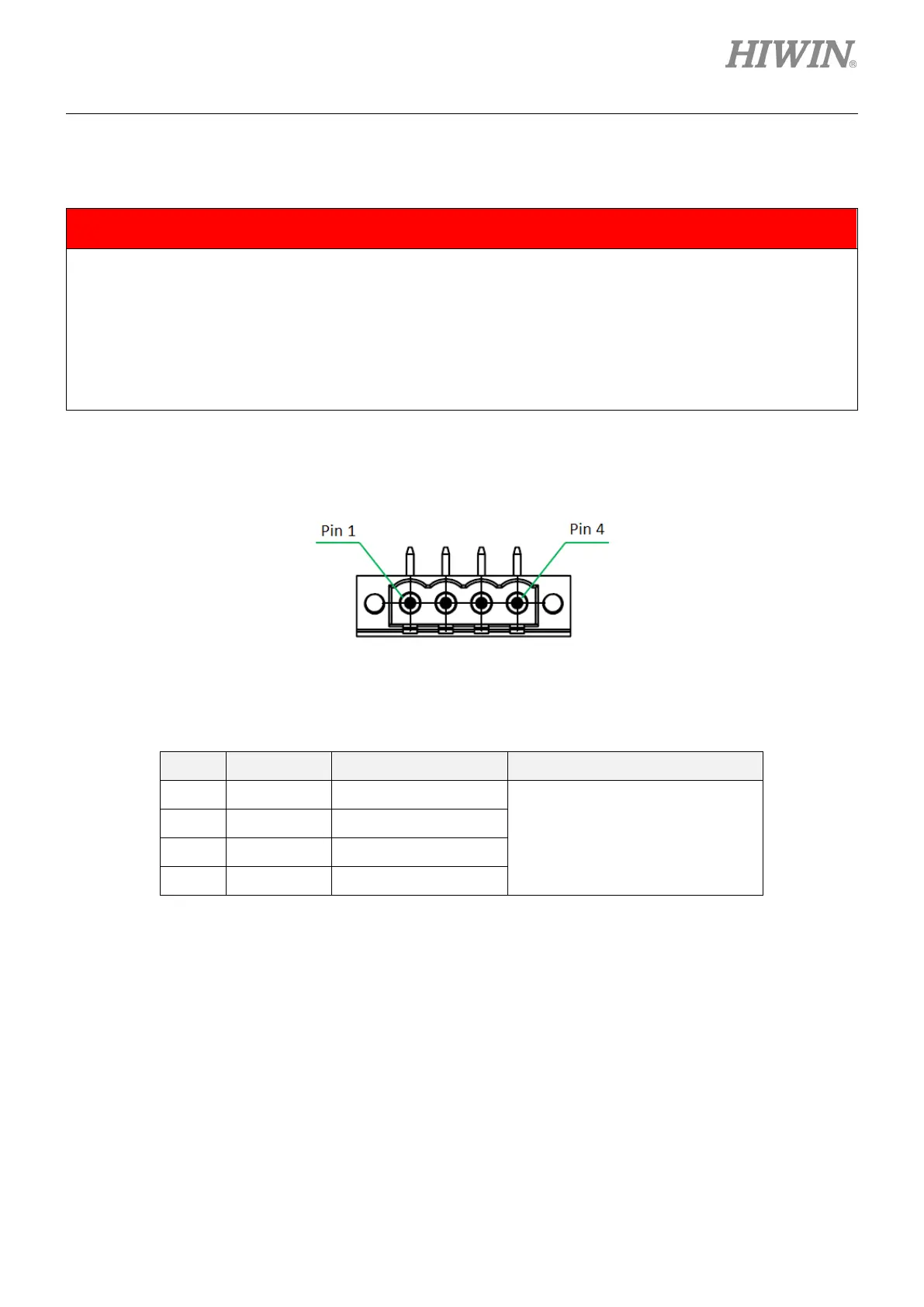

Figure 3.2.1 CN1 connector type
Table 3.2.1 CN1 pin assignment
Pin Name Description Remarks
1 +24V +24VDC supply
Power requirement: DC 24V/0.6A
2 N/C Not connected
3 N/C Not connected
4 RTN +24VDC supply return
To Next Page
