SONAR 115 Sub D 1.1
4
Caution:
To reduce
the risk of
electric
shock,
grounding
of the center
pin of this
plug must be
maintained.
SONAR
115 Sub D
Volume
Push to edit
Input
L
Thru
L
Input
R
Thru
R
On
O
PowerMains
Leave enough space for proper ventilation!
24bit Digital Signal Processor
Serial No.
HK Audio is a brand of Stamer Musikanlagen GmbH
.BHEFCVSHFS4USŦ4U8FOEFMŦ(FSNBOZ
7_Ţ)[
"!PVUQVUQPXFS
This device complies with part 15 of the FCC Rules. Operation is
TVCKFDUUPUIFGPMMPXJOHUXPDPOEJUJPOT5IJTEFWJDFNBZOPU
DBVTFIBSNGVMJOUFSGFSFODFBOEUIJTEFWJDFNVTUBDDFQUBOZ
JOUFSGFSFODFSFDFJWFEJODMVEJOHJOUFSGFSFODFUIBUNBZDBVTF
undesired operation.
$POGPSNTUP6-45%
Certified to CSA STD. C22.2
/P
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
1
2
3 4
3 4
5 6

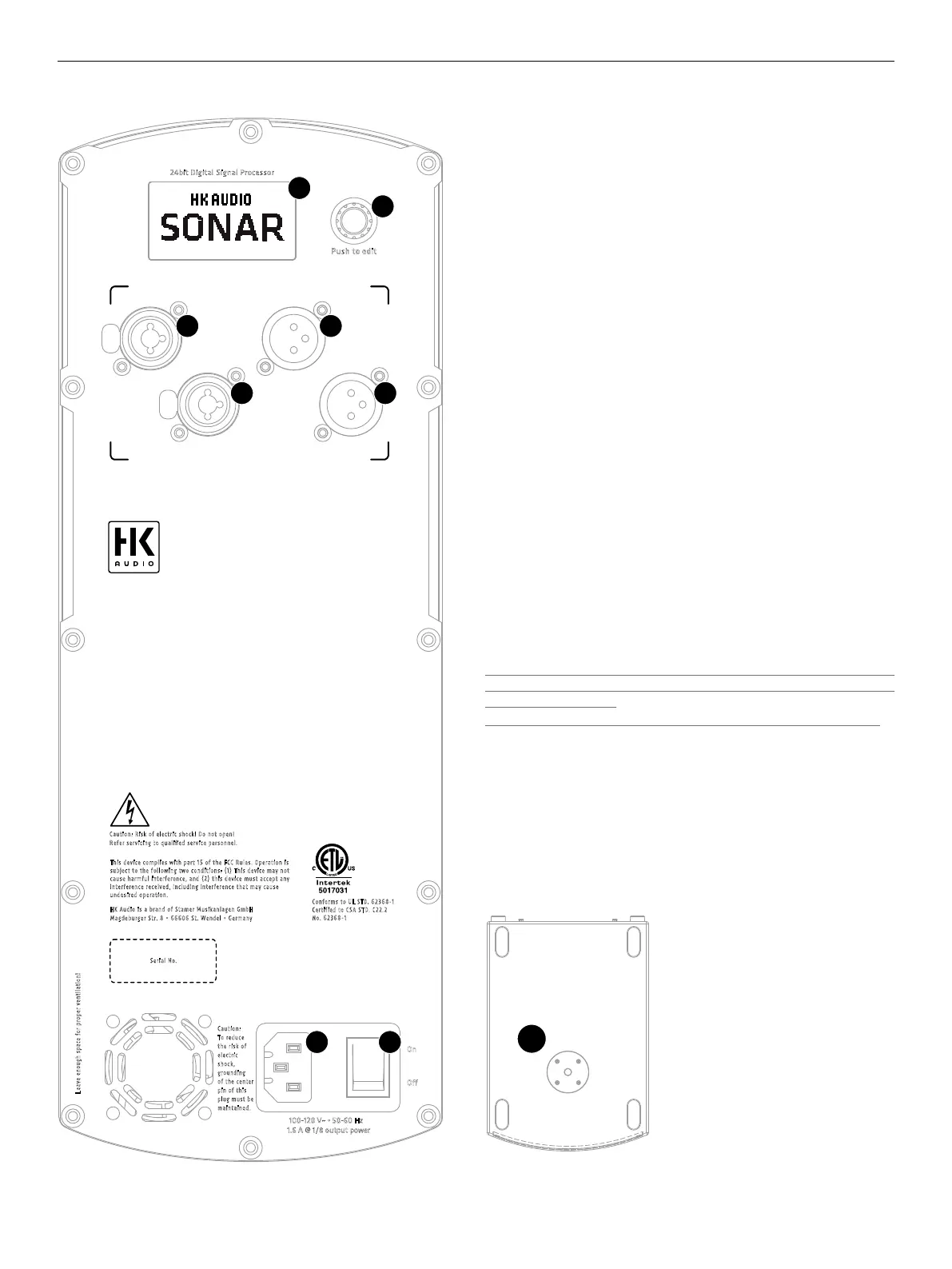

1 Connectors and Controls
●
1
Display
The display indicates the volume level and a ords you access to further
DSP functions.
• See section 2, DSP Menu, for more on this.
●
2
Volume (Push to edit)
The Volume knob on the right of the display serves primarily to adjust the
level. The display indicates the current value; the control range sweeps from
mute to +10 dB.
This is a push-to-edit control that you can turn and press to access and
adjust various settings. The display highlights the currently selected
parameter. Turn the Volume knob to navigate the menu. Press it to select
the current menu option or confi rm your entry.
●
3
Input (L/R)
These balanced XLR / 1/4" (6.35 mm) combo jacks accept an XLR connector
or a balanced or unbalanced 1/4" (6.35 mm) jack plug.
Heads up: A balanced signal is always preferable because it is less
susceptible to HF and other interference.
●
4
Thru (L/R)
These balanced XLR outputs route the input signals back out without
further processing.
●
5
Mains
Please use the factory-included power cable to connect this IEC mains
socket to a wall outlet.
Be sure your speaker is turned o before you plug the mains supply cord
into an electrical outlet.
Caution: Make sure the local mains voltage matches the voltage specifi ed
on the product. Connecting it to the wrong mains voltage may destroy its
electronic components.
Caution: It is essential to ensure that the fan is not covered or blocked.
●
6
Power
This on/o button powers the system up and down. When you switch
SONAR 115 Sub D on, it loads the most recently used DSP settings and will
be ready to operate within seconds when the volume setting appear in the
display.
●
7
Pole Mount socket
The M20 pole mount accepts speaker extension poles with an M20 thread.
7
