HMS CM CANopen - Appendix D Error Codes (RET); Function Block Error Codes

Doc.Id. HMSI-216-117
CM CANopen Module for SIMATIC S7-1200
Doc.Rev. 1.00
Appendix D

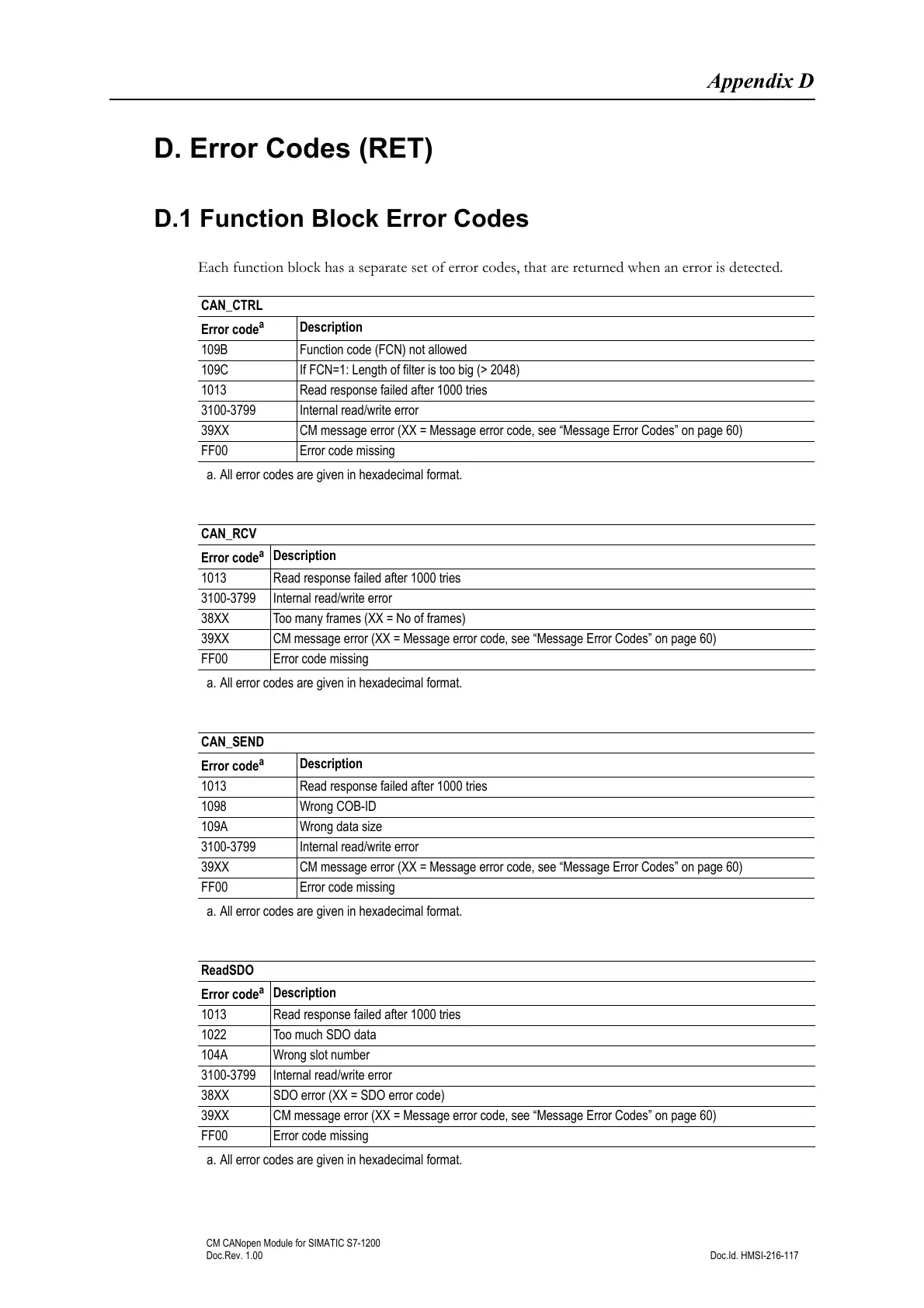

D. Error Codes (RET)
D.1 Function Block Error Codes
Each function block has a separate set of error codes, that are returned when an error is detected.
CAN_CTRL
Error code
a
a. All error codes are given in hexadecimal format.
Description
109B Function code (FCN) not allowed
109C If FCN=1: Length of filter is too big (> 2048)
1013 Read response failed after 1000 tries
3100-3799 Internal read/write error
39XX CM message error (XX = Message error code, see “Message Error Codes” on page 60)
FF00 Error code missing
CAN_RCV
Error code
a
a. All error codes are given in hexadecimal format.
Description
1013 Read response failed after 1000 tries
3100-3799 Internal read/write error
38XX Too many frames (XX = No of frames)
39XX CM message error (XX = Message error code, see “Message Error Codes” on page 60)
FF00 Error code missing
CAN_SEND
Error code
a
a. All error codes are given in hexadecimal format.
Description
1013 Read response failed after 1000 tries
1098 Wrong COB-ID
109A Wrong data size
3100-3799 Internal read/write error
39XX CM message error (XX = Message error code, see “Message Error Codes” on page 60)
FF00 Error code missing
ReadSDO
Error code
a
a. All error codes are given in hexadecimal format.
Description
1013 Read response failed after 1000 tries
1022 Too much SDO data
104A Wrong slot number
3100-3799 Internal read/write error
38XX SDO error (XX = SDO error code)
39XX CM message error (XX = Message error code, see “Message Error Codes” on page 60)
FF00 Error code missing
