– 2 –

Slicers with Feed-Screw Mechanism

For models 1712R, 1712RE, 1912R only.

WARNING: TURN SLICER OFF BEFORE ASSEMBLING FOOD CHUTE.

1. Turn the Knurled Knob on the Adjusting Screw

clockwise to move the Actuating Block all the

way to the front (Fig. 4).

2. Assemble the Food Chute so the ﬁrst Hanger

ﬁts around the Front Meat Grip Slide Rod

(Fig. 5). Slide the Food Chute and first

Hanger down the Front Meat Grip Slide Rod

and ﬁt the second Hanger around the Rod.

With both Food Chute Hangers in place around

the Slide Rod, lower the Food Chute to the

Carriage Tray.

3. Turn the Prongs of the Meat Grip toward the

Food Chute. Position the Pin on the Plunger

Knob shaft in the slot on the Plunger Housing

with the Meat Grip positioned at the top of the

Feed Screw (Fig. 6).

FORM 33999 Rev. A (06-06) PRINTED IN U.S.A.

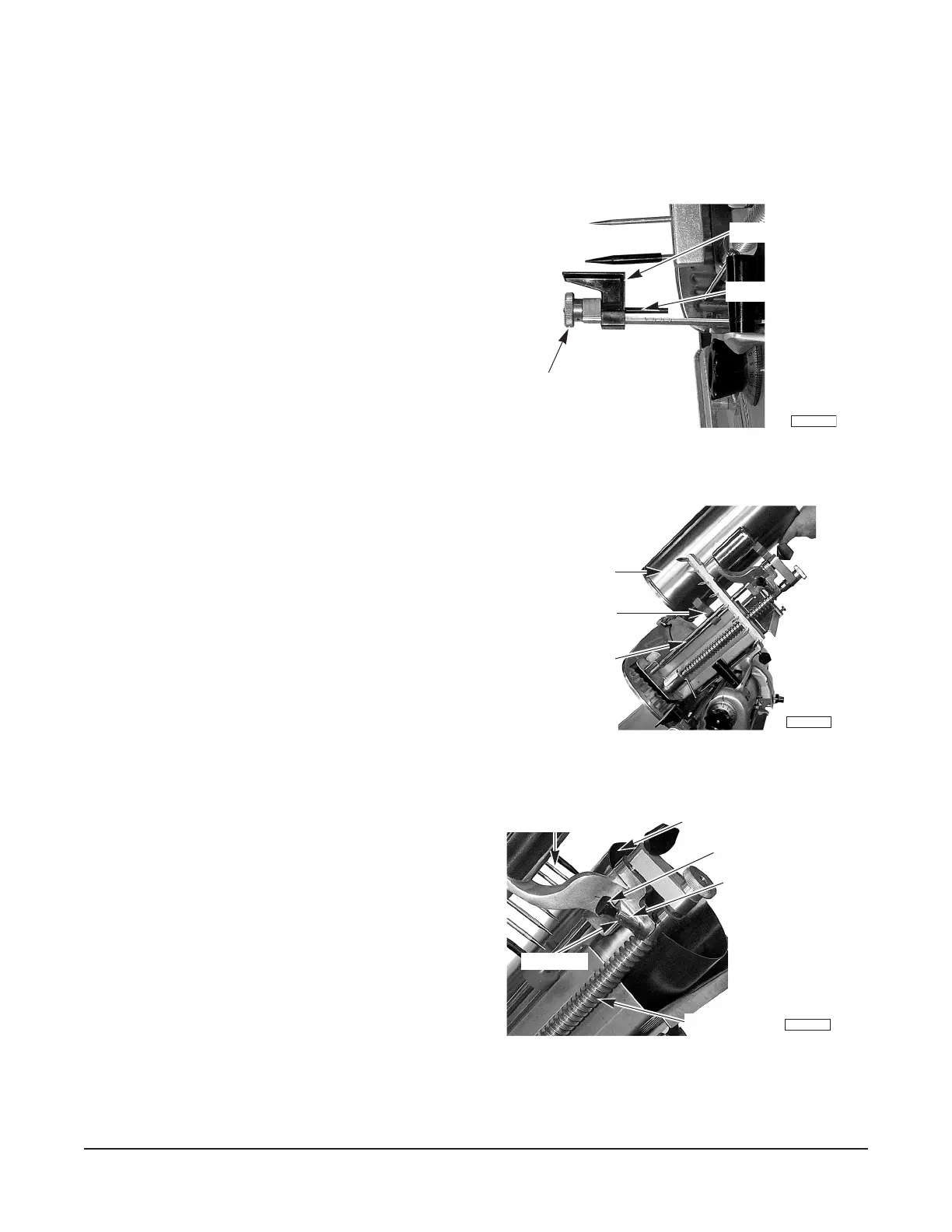

Fig. 4

Fig. 5

Fig. 6

PL-41132-1

ACTUATING BLOCK

ADJUSTING SCREW

KNURLED KNOB

PL-41133-1

HANGER

FRONT MEAT GRIP

SLIDE ROD

FOOD CHUTE

PL-41134-1

FOOD CHUTE

PLUNGER KNOB

FEED SCREW

PIN IN SLOT

PLUNGER HOUSING

MEA

T GRIP PR

ONGS
