– 5 –
Start Button
Stop Button
Timer
Gear Shift Lever
PL-40142-1
OPERATION
WARNING: MOVING BEATER IN BOWL, KEEP HANDS, CLOTHING, AND UTENSILS OUT WHILE IN
OPERATION, DO NOT USE WITHOUT INTERLOCKED GUARD.
Every D340 mixer is equipped with either an Electro-Mechanical Timer Control (described at the bottom
of this page) or a Programmable Timer Controller (described on pages 6 – 8). Also, become familiar with
the other operating parts (Fig. 2) and their functions, which are referenced throughout the
OPERATION
section (pages 5 – 11).
The Bowl Guard must be in position or the mixer will not operate. Refer to page 10.
If the Bowl Support is not all the way up, the mixer will not operate unless the START button is held in.

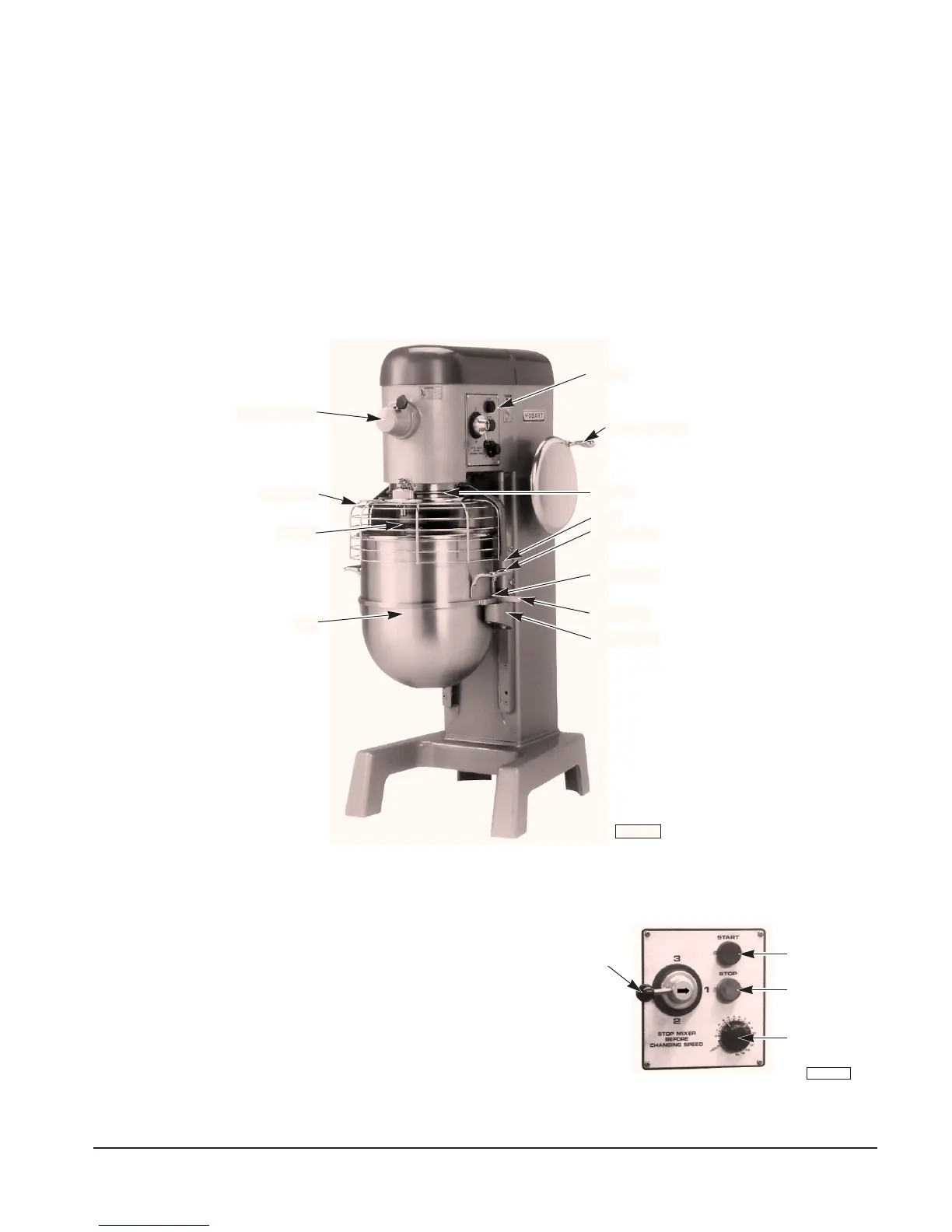

Fig. 2
ELECTRO-MECHANICAL TIMER CONTROLS (when equipped)
The START button is used to start the mixer.
The STOP button is used to stop the mixer.
The TIMER is used in conjunction with the START
button for timed mixing operations and will stop the
mixer when a preset time has elapsed.
For non-timed mixing — Set the timer on HOLD
and use the STOP button to stop the mixer.
Fig. 3
PL-40144-1
Controls
Bowl Lift Handle
Drip Cup
Apron
Alignment Pin
Bowl Handle
Bowl Clamp
Bowl Support
Attachment Hub
Bowl Guard
Agitator
Bowl
