Stroke Count
Speed #1 Low 30
Speed #2 Medium Low 40
Speed #3 Medium High 50
Speed #4 High 60
*Numbers reflect full strokes per minute.
Knife Speed
Knife speed - 430 RPM
Knife Dimension
13"(new) to 12-3/4"(min.)
Knife Sharpener
Top mounted removable two Borazon stone type.
Weight
Approximate shipping weight 135 lbs. , Net 103 lbs.
LUBRICATION
Lubricants Where Used
Lubriplate FMO- 200-
AW
Part No. 437906
Carriage Transport
Assembly- in wick for slide
rod.
Lightly coat- index seal.
Lubriplate SFL-000
NSF H-1
Lightly coat- meat grip slide
rod.
Lubriplate SFL-1
NSF H-1
Lightly coat- meat grip shaft.
Chevron ALC-EPO
Coat- index mechanism shaft,
index cam grooves, gauge
plate boot.
Lubriplate FGL-0
Lightly coat- index shaft, knife
shaft boot.
TOOLS
Required Tools
• Standard set of hand tools.
• VOM with A/C current tester (any quality VOM
with a sensitivity of at least 20,000 ohms per volt
can be used).

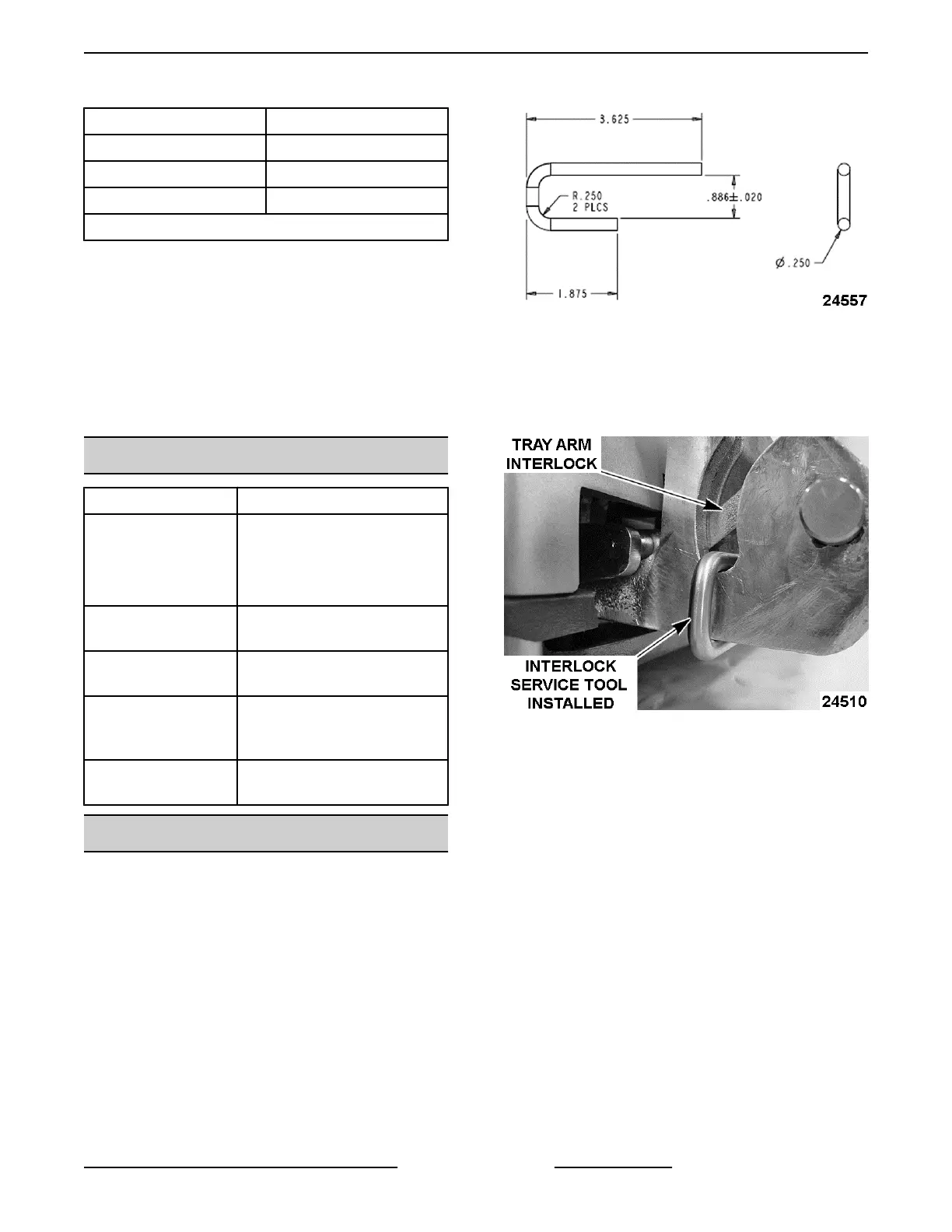

• Interlock Service Tool, Part No. 00-915522.
Inserted into carriage transport assembly to allow
movement during times when carriage tray unit
is removed but carriage transport assembly
needs to be moved for removal or adjustment of
parts.
Fig. 1
Interlock Service Tool Installation Instructions
1. Press down tray arm interlock and Insert interlock
service tool as shown . Transport is now free to
move without the tray.
Fig. 2
2. The transport must be returned to home position
in order to remove interlock service tool. Pull out
tool.
Special Tools
1. Wire Harness (Jumper Plug) Part No.
00-915276.
2. Loctite® Primer, obtain locally.
NOTE: Apply Loctite primer any time Loctite is used.
3. Loctite® 603™, obtain locally.
4. Loctite® 222™, obtain locally.
5. Loctite® 242™, obtain locally.
6. Loctite® 271™, obtain locally.
7. Dow Corning® RTV 732™, obtain locally.
8. Never-Seez® Food Grade NSWT-14, Part No.
00-511907
9. Torque Wrench (20-400 in.-lbs)
HS Series Slicer - GENERAL
Page 7 of 85 F45476 Rev. A (0313)
