Exterior Structure
05-9

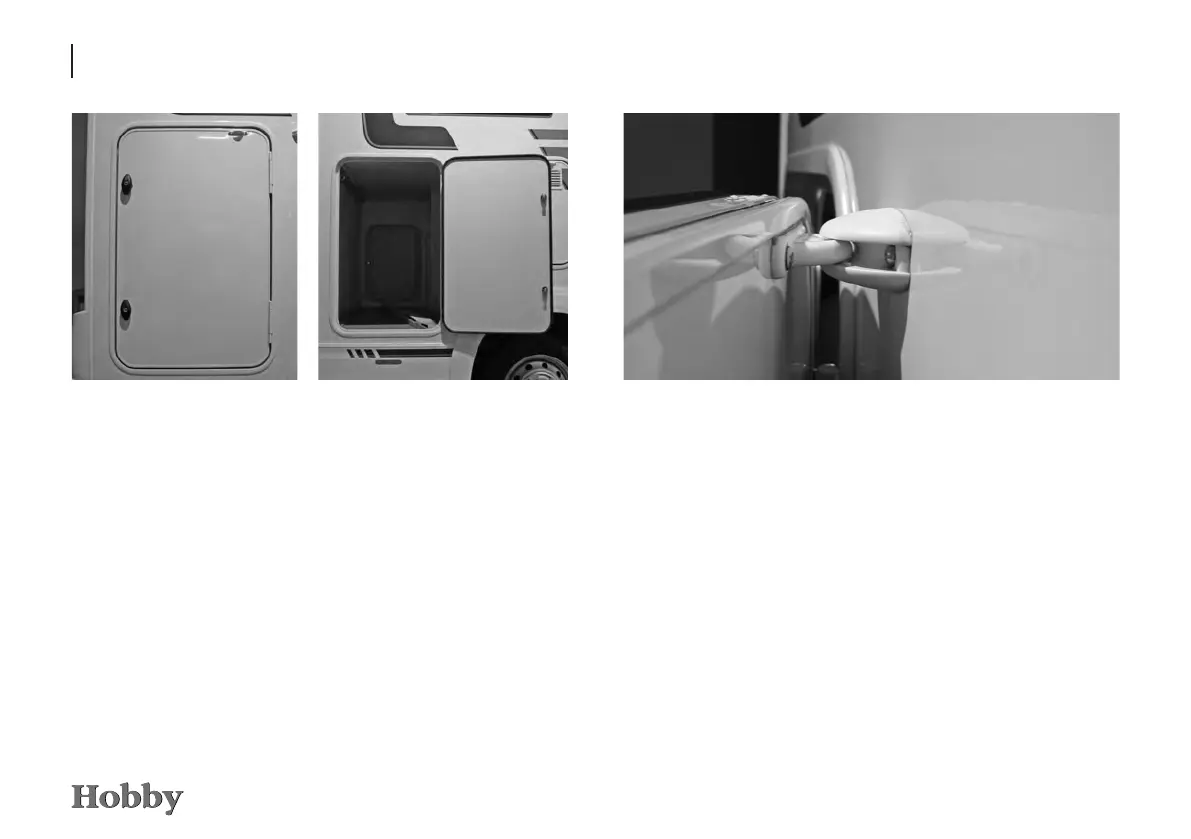

Flap locks
Some of the external aps can be fastened using the lock
on the outside wall of the mobile home.
To lock
• Open the ap all the way.
• Press the nose fastened to the ap into the counterpart on
the outside wall of the mobile home. Take care to ensure
that it clicks rmly into place.
To unlock
• Pull the nose out of the counterpart.
Garage ap
To open
• Unlatch both locks with the key. The handles will be slightly
projected.
• Turn the handle to the left.
• Swing the ap up.
To close
• Swing the ap shut.
• Turn the handle to the right until the ap is pulled into the seal.
• Latch both locks with the key and push the handles in until
they click into place.
