Service of Power Components
CAUTION: Always disconnect the fl ight battery from
the model before removing the propeller.
Disassembly

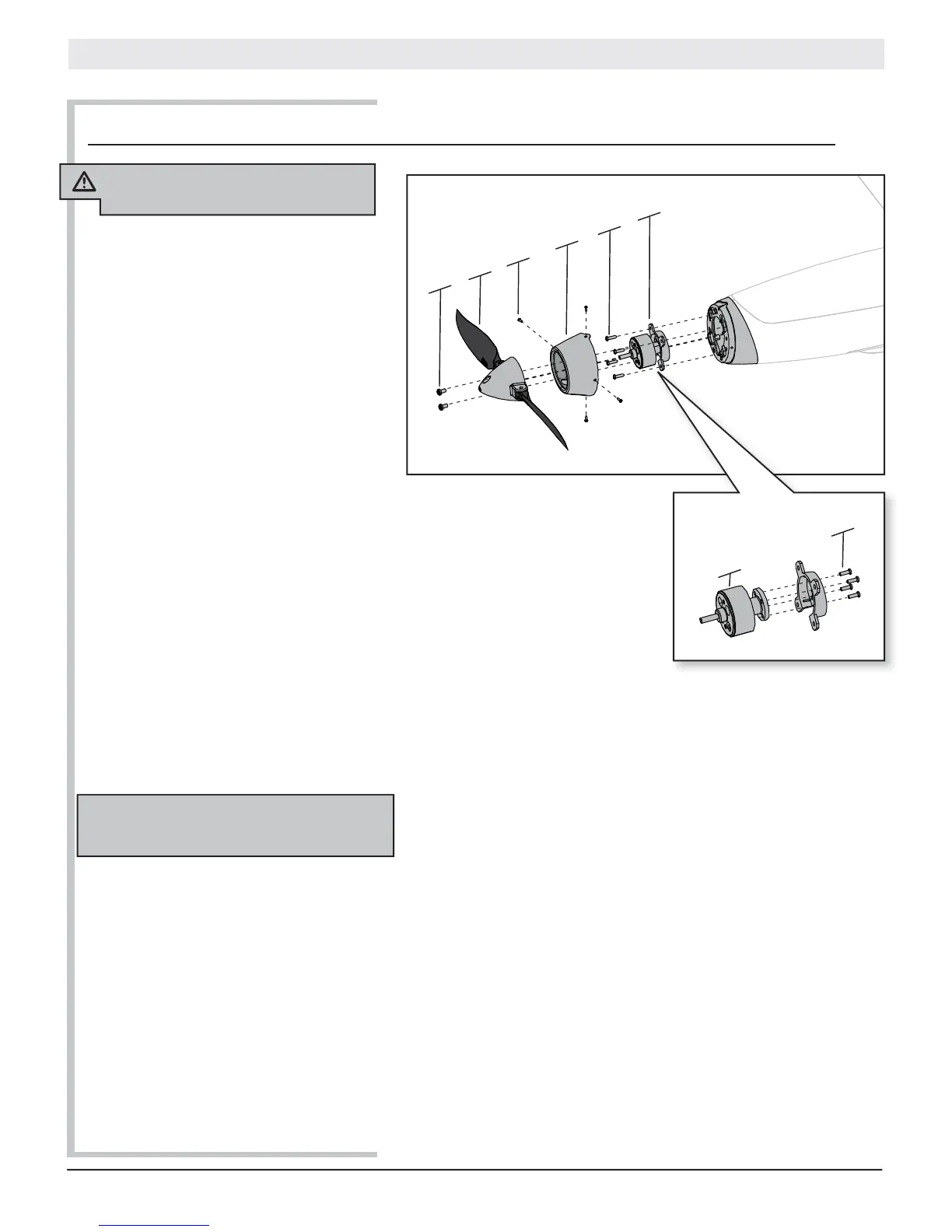

1. Remove the 2 screws (A) and spinner-prop unit (B)
from the motor.
2. Carefully remove the 4 screws (C) and cowling (D)
from the fuselage.
3. Remove the 4 screws (E) and x-mount (F) with the
motor from the fuselage.
4. Disconnect the motor connectors from the ESC con-
nectors.
5. Remove the 4 screws (G) to separate the X-mount
from the motor (H).
6. Assemble in reverse order.
Assembly Tips
• Correctly align and connect the motor wire colors with
the ESC wires.
• Ensure that all screws are tight and secure.
Service and Repair
NOTICE: If you replace the receiver, install the new re-
ceiver in the same orientation and manner as the original
receiver or damage may result.
Thanks to the Z-Foam™ material in the wing and
fuselage of this aircraft, repairs to the foam can be made
using virtually any adhesive (hot glue, regular CA (cyano-
acrylate adhesive), epoxy, etc).
