Transmitter and Receiver
Binding
IMPORTANT: The included receiver has been
programmed for operation only in this aircraft.
The included RTF transmitter should be bound to the
aircraft at the factory, but if you need to re-bind, follow
the binding procedure as shown.
You need to ‘bind’ your chosen Spektrum
™
DSM2
®
/
DSMX
®
technology equipped aircraft transmitter to the
receiver for proper operation. Please refer to the optional
parts list in this manual or visit www.bindnfl y.com for a
list of compatible transmitters.
Refer to your transmitter instructions for binding to a
receiver.
Please visit www.bindnfl y.com for a complete list of
compatible transmitters.
* The throttle will not arm if the transmitter’s throttle
control is not put at the lowest position. If you encounter
problems, follow the binding instructions and refer to the
transmitter troubleshooting guide for other instructions. If
needed, contact the appropriate Horizon Product
Support offi ce.
6
2
2
6
4
9

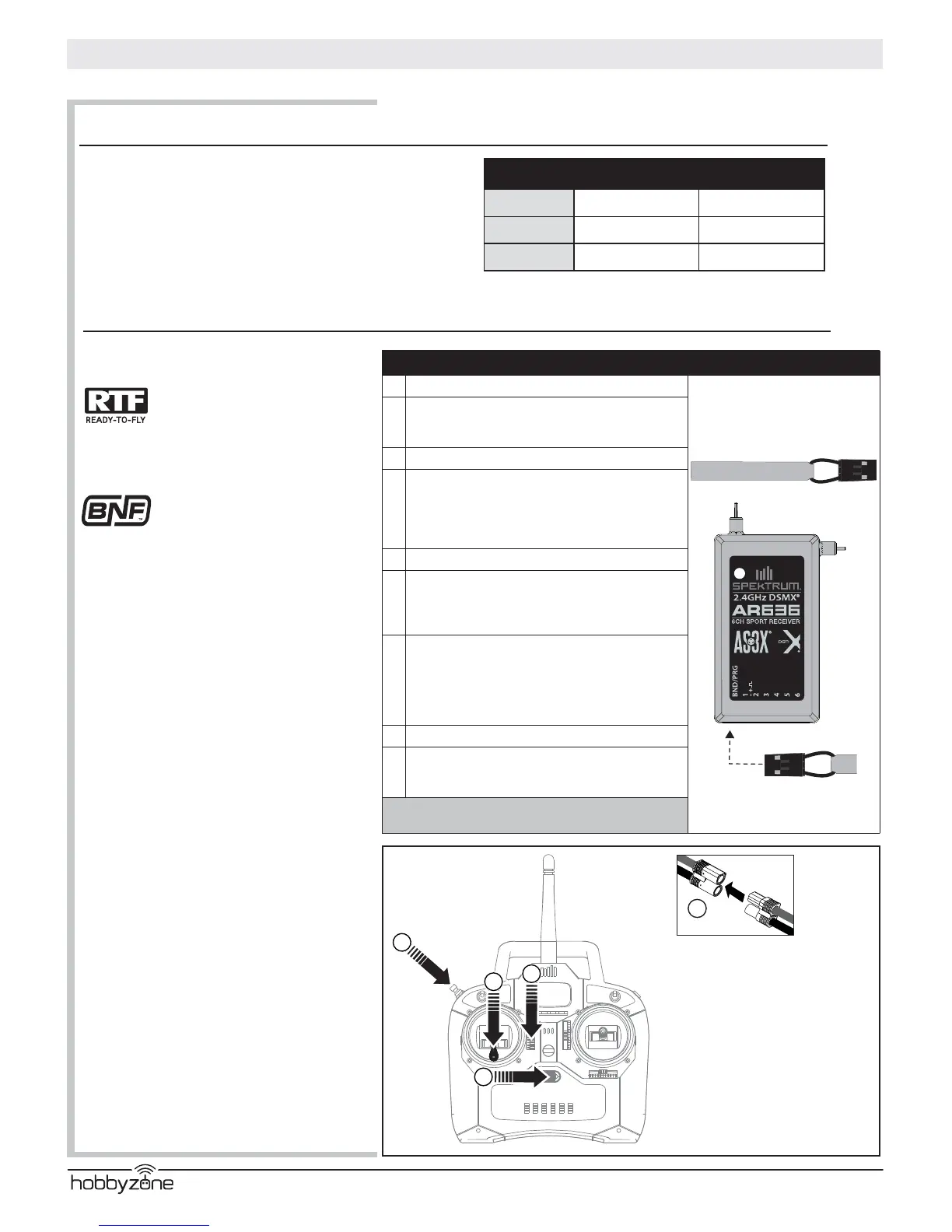

Binding Procedure Reference Table
1. Make sure the transmitter is powered off.
BIND PLUG
2. Make sure the transmitter controls are neutral,
the throttle and throttle trim are in the low posi-
tion and the aircraft is immobile.
3. Install a bind plug in the receiver bind port.
4. Connect the fl ight battery to the ESC. Ensure
that the aircraft is upright.The ESC will
produce a series of sounds. One long tone, then
2 short tones confi rm that the LVC is set for the
ESC.
5. The receiver LED will begin to fl ash rapidly.
6. Power on the transmitter while holding the
transmitter bind button or switch. Refer to
your transmitter’s manual for binding button or
switch instructions.
7. When the receiver binds to the transmitter, the
orange bind light on the receiver will turn solid
and the ESC will produce ascending tones. The
tones indicate the ESC is armed, provided the
throttle stick and throttle trim are low enough to
trigger arming.
8. Remove the bind plug from the bind port.
9. Safely store the bind plug (some owners attach
the bind plug to their transmitter using two-part
loops and clips).
The receiver should retain the binding instructions re-
ceived from the transmitter until another binding is done.
The included DSM2/DSMX full range transmitter features
dual rates to allow you to select the amount of travel that
you want from the control surfaces.
Hi/Low Rate Switch (Dual Rates)
Dual Rate High Rate Low Rate
Aileron 100% 70%
Elevator 100% 70%
Rudder 100% 70%
