Hobie Mirage Compass Instructions

14

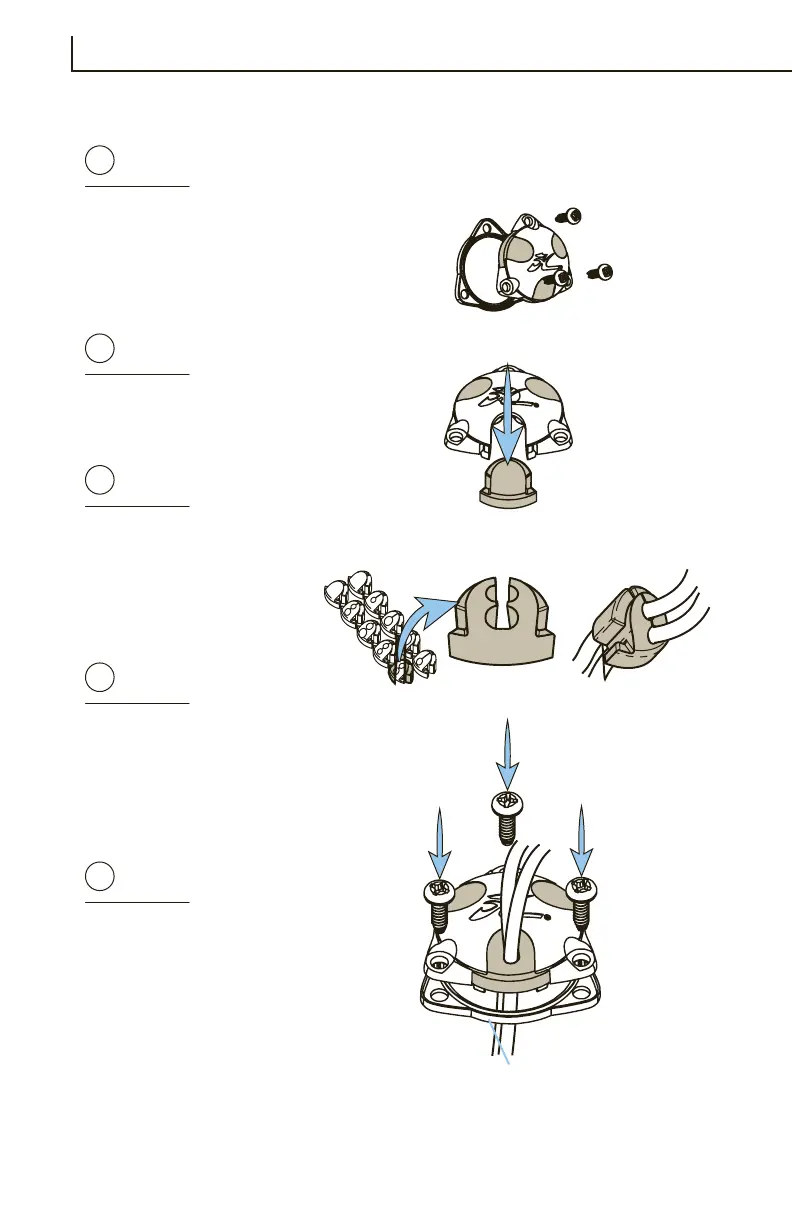

Locate the thru-hull
plug assembly in the
small parts kit.
Remove the solid
rubber plug.
Choose the correct
plug for your wire size
and insert the wire by
opening the plug along
the slit.
Press the new plug
with the wire installed
into the plastic plug
making sure it fits
tightly.
DO NOT USE A DRILL
for the three way
plug. Screw the thru-
hull wire assembly
to the hull using the
screws. Make sure
you have the o-ring or
gasket installed.
Thru-Hull Plugs: 3-way Wire System
1
2
3
4
5
Lowrance Ready Option
Gasket

Hobie Mirage Compass Specifications

General

Fitted Hull Weight	68 lbs / 31 kg
Capacity	400 lbs / 181 kg
Hull Construction	Rotomolded Polyethylene
Seat	Vantage CT
Length	12 ft / 3.66 m
Width	34 in / 0.86 m
Storage	Front Hatch, Rear Cargo Area
Vantage Seat Capacity	275 lbs / 125 kg
