Hobie Mirage Compass Instructions

15
hobie.com
Hole #1
1
3/8”
Choice for Hole #2
1
3/8” Left or right
Lowrance Ready Option

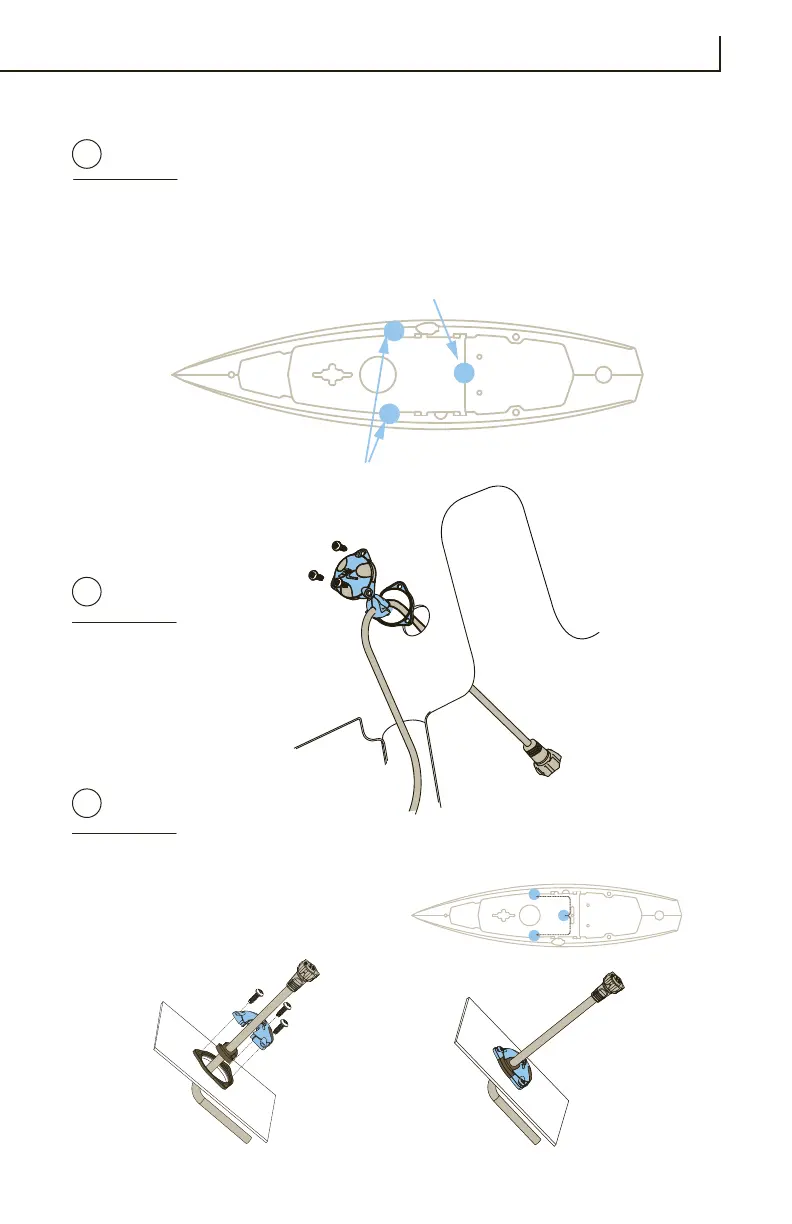

Drill two 1 3/8” holes using a hole saw in the areas indicated. The forward
hole can be drilled on the left or right. The hole for the wire coming up
from the scupper should be located on the firewall behind the seat.
Run cable through the plug
and into the hole drilled on
the firewall behind the seat.
Lead the cable through the inside of the
hull and exit the cable through the 3-way
Thru-Hull Plug. Hand tighten screws to
avoid stripping threads.
2
3
Wire Installation
1

Hobie Mirage Compass Specifications

General

Fitted Hull Weight	68 lbs / 31 kg
Capacity	400 lbs / 181 kg
Hull Construction	Rotomolded Polyethylene
Seat	Vantage CT
Length	12 ft / 3.66 m
Width	34 in / 0.86 m
Storage	Front Hatch, Rear Cargo Area
Vantage Seat Capacity	275 lbs / 125 kg
