16 Installation
HP-327 HIT-4U
PCA192
Puls e+
Puls e‐
Alarm+
Alarm‐
TxA
TxB
TB3
TB2
Flow+
Flow‐
TB1
DC+
DC‐
Analog
4‐20mALoad
+
‐
MCP
Pickup
RS485
RS485
123456
SW1
J2
PCA193
TB1
A
B

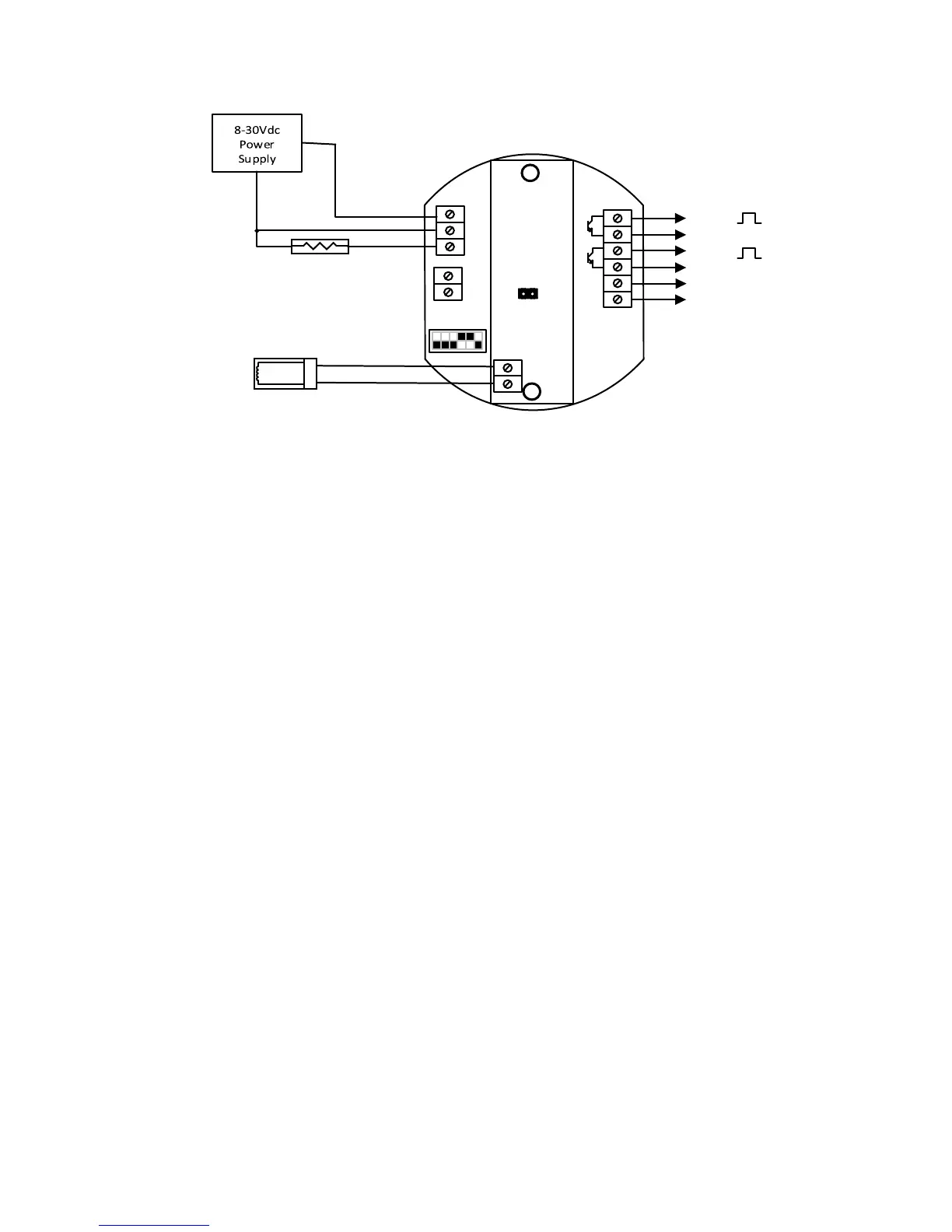

DC Powered with Analog Output
and MCP/RF Pickup

