Vehicle Care 10-29
A
A. Fuse panel

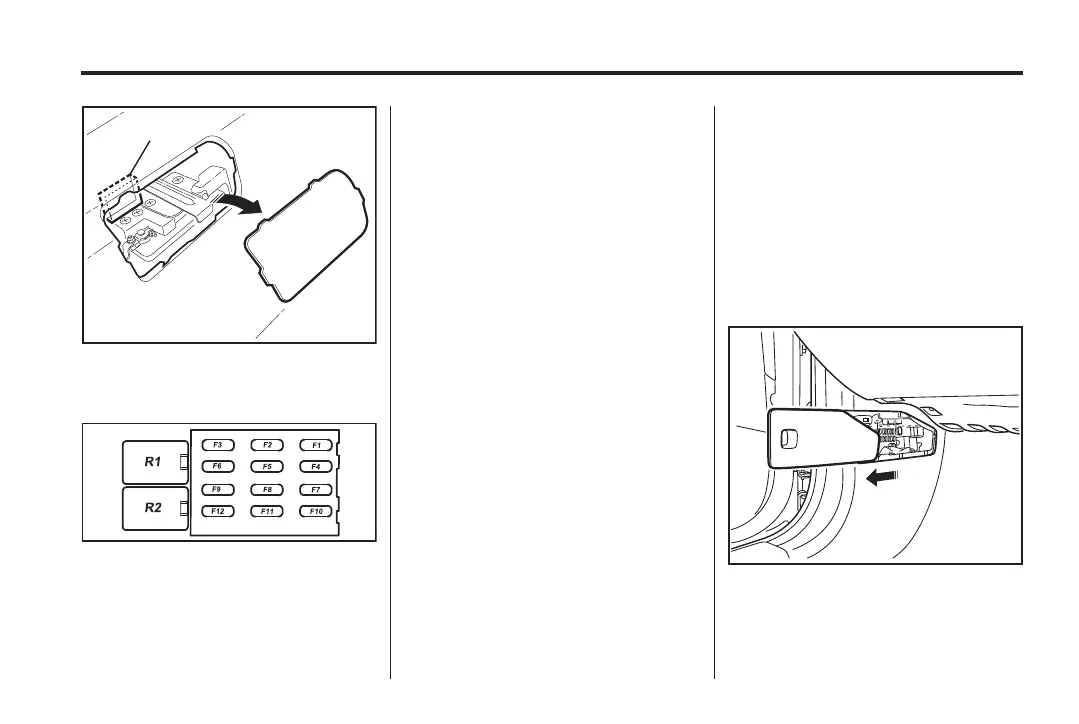

Fuse and relay index
The vehicle may not be equipped
with all of the fuses, relays and
features shown.
Fuses
F1 REAR SEAT
ENTERTAINMENT
(10A)
F2 AMPLIFIER (30A)
F3 DEALER
OPTIONS
(10A)
F4 RADIO &
INFOTAINMENT
(25A)
F5 IPC/RFA/
DLC/LAMP
(10A)
F6 REAR
ACCESSORY
POWER
OUTLET (APO)
(20A)
F7 TRAILER ( 30A)
F8 LIFTGATE
MODULE LOGIC
(10A)
F9 FUEL SHUT-OFF
SOLENOID
(15A)
F10 RVC SENSOR (7.5A)
F11 ECM BATT (15A)
F12 FUEL SYSTEM
CONTROL
MODULE
(20A)
Relays
R1 SPARE
R2 SPARE
Cabin fuses and relays
Pull on the slot in the fuse panel
cover and slide rearwards to access
the fuse panel.
