Seats and Restraints 3-21
Using outer anchorage points

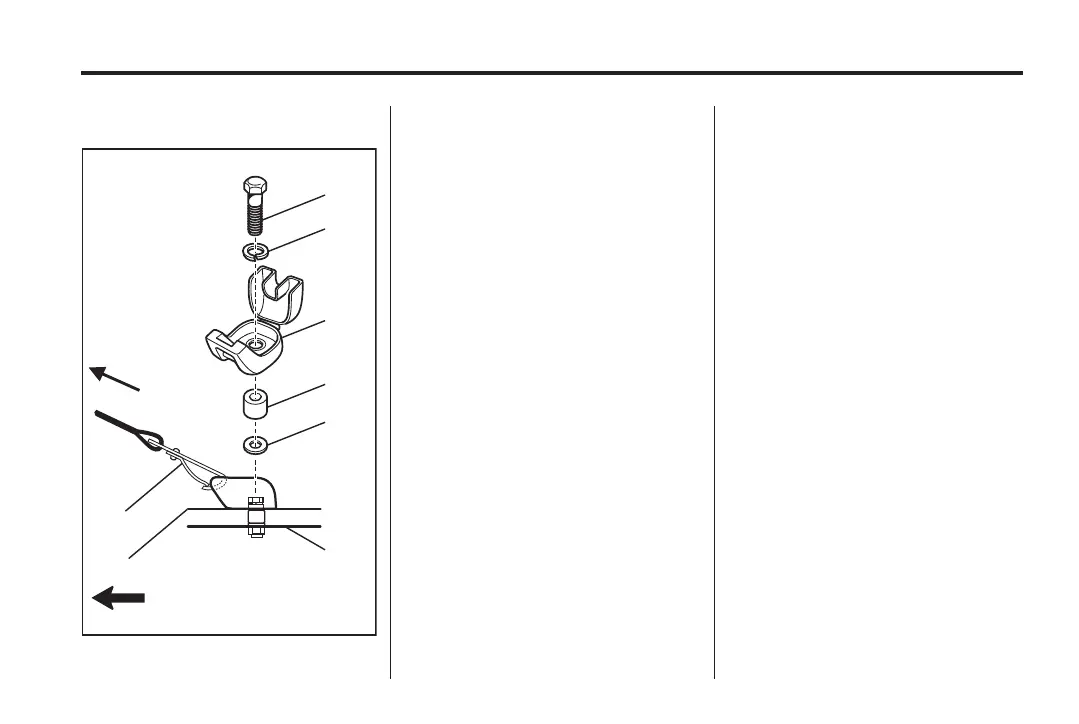

A
B
C
D
E
F
G
H
I
J
A. 30 mm long bolt
B. Lock washer
C. Anchor fitting
D. 10 mm spacer
E. Paper assembly washer
F. Metal parcel shelf
G. Front of vehicle
H. Parcel shelf trim
I. Attaching clip
J. Direction of child restraint
Holden child restraint fitting
1. Unscrew the cover plug.
2. Install the bolt (A), lock
washer (B), anchor fitti ng (C),
spacer (D) and paper
washer (E).
3. Tighten the bolt to 20 ± 5 Y
(Newton me tres ).
Generic child restraint anchor
fitting
Unscrew the cover plug.
Some generic fittings come with a
selection of spacers.
A 10 mm spacer is required.
