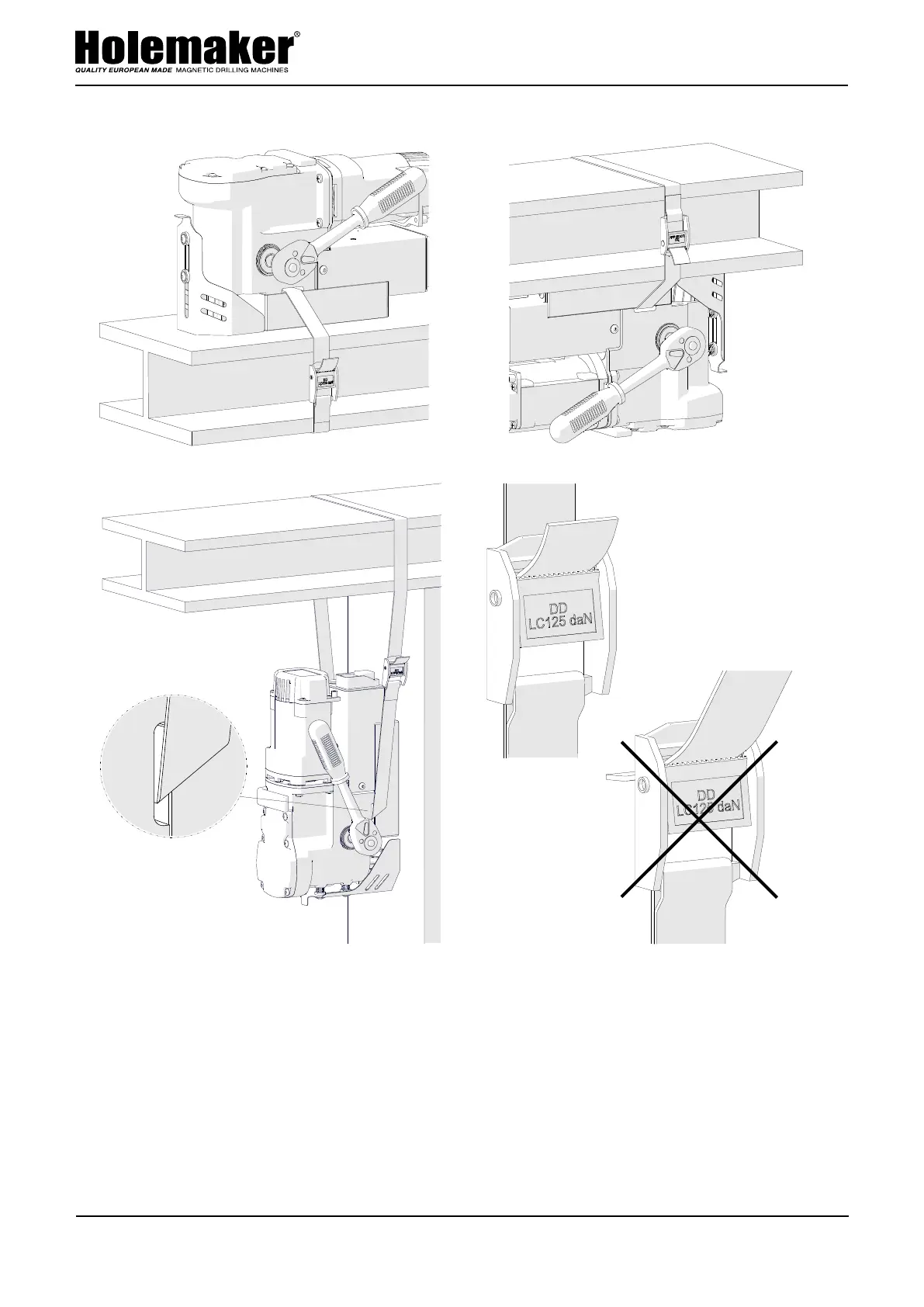

Fig. 5. Protecting the machine from falling by using the safety strap
Rotate the handle to the left to place the pilot pin (drill bit) above the workpiece.
Fill the coolant bottle (not included) with a cutting fluid. Do not use pure water as
the cutting fluid. However, using emulsions formed from mixing water and drilling oil
is satisfactory.
When drilling in vertical positions (Fig. 5a), apply
the coolant manually into the
drilling
area. When drilling in inverted or horizontal positions (Fig. 5b, 5c) use coolants
under pressure or in the form of spray or paste.
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
12
a)
b)
Vertical drilling
Inverted drilling
c)
Horizontal drilling
Maximum possible
twist of the strap
d)
INCORRECT
CORRECT
✓
