HMPRO36AD OPERATOR’S MANUAL
14

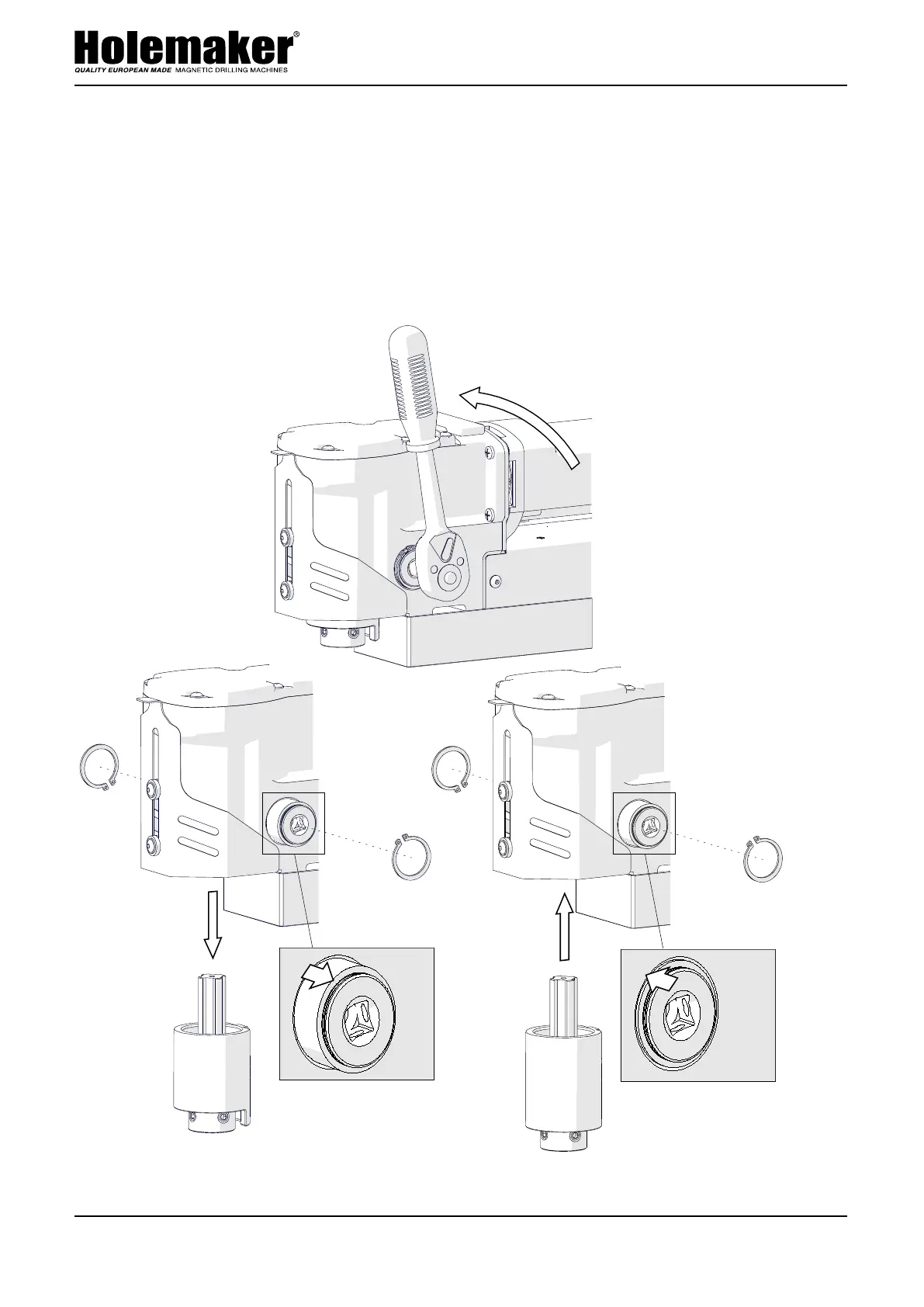

To install the assembly, unplug the machine from the power source, raise the cover,
and then rotate the handle to the left (1, Fig. 7) to lower the standard TCT quill
assembly as much
as possible. Next, remove the handle, use pliers to remove the
retaining rings (2), and then push out the shaft (3) by 16 mm (10/16’’), which will expel
the TCT quill assembly (4). Insert the HSS quill assembly (5), push in the shaft (6), and
then place the retaining rings back in place (7).
Fig. 7. Installing the HSS quill assembly
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
16
1
7
2
3
4
5
6
2
7
