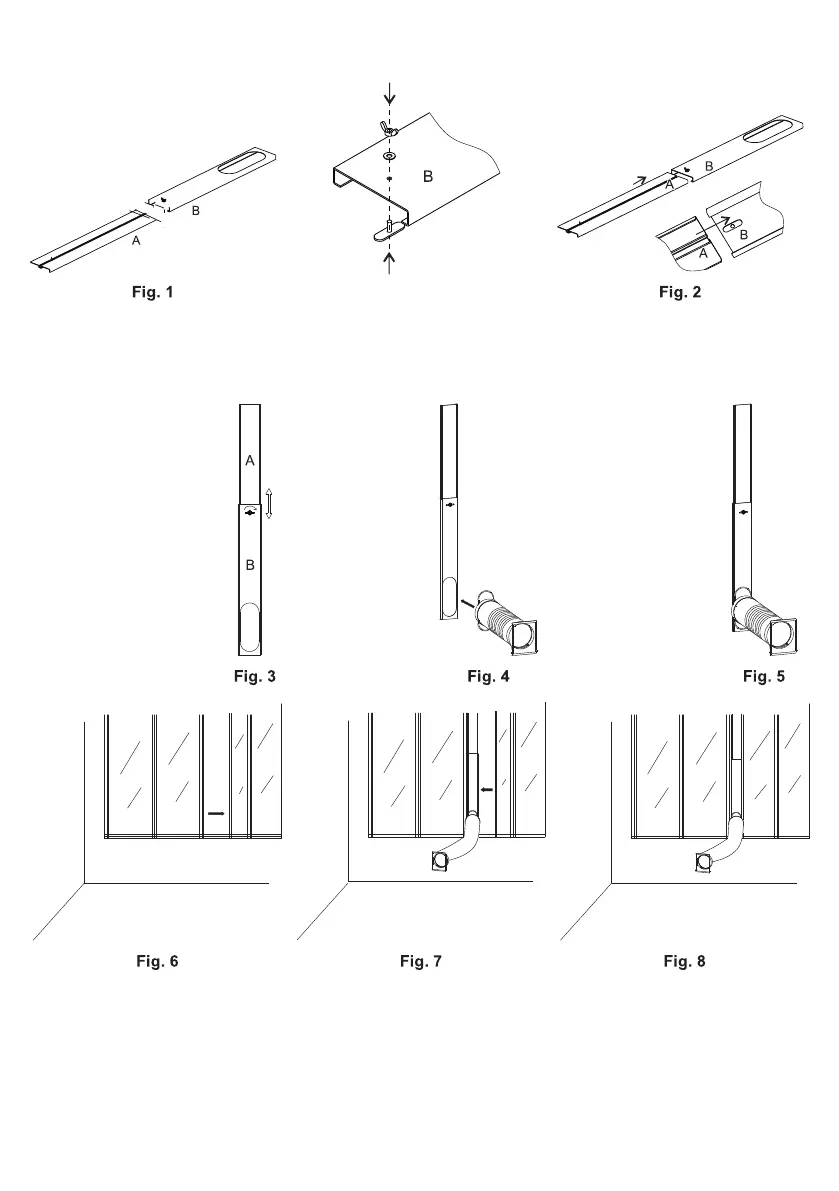

Install Window Kit
3. Insert A board into B board
according to arrowhead
direction.
2.Screw the wing nut through
the B board. Leave 2/3 mm
of free space.
1. Separate both boards A
board, and B board
6. Assembly
finished.
5. Install exhaust
air duct & its
accessories
into window
kit according
to arrowhea
direction.
4. Assembly
finished, you can
adjust A board
up or down,
according to
height of the
window. Screw it
unit it is tight.
9. Install exhaust air duct,
window kit and their
accessories onto window
according to Fig8 drawing
illustrated.
8. Install exhaust air duct,
window kit and their
accessories onto window,
then close the window
according to arrowhead
direction in Fig7 drawing to
press window kit tightly.
7. Open the window where
need install exhaust air
duct, window kit and their
accessories.
