HOMCOM A91-176 - Step 5; Step 6

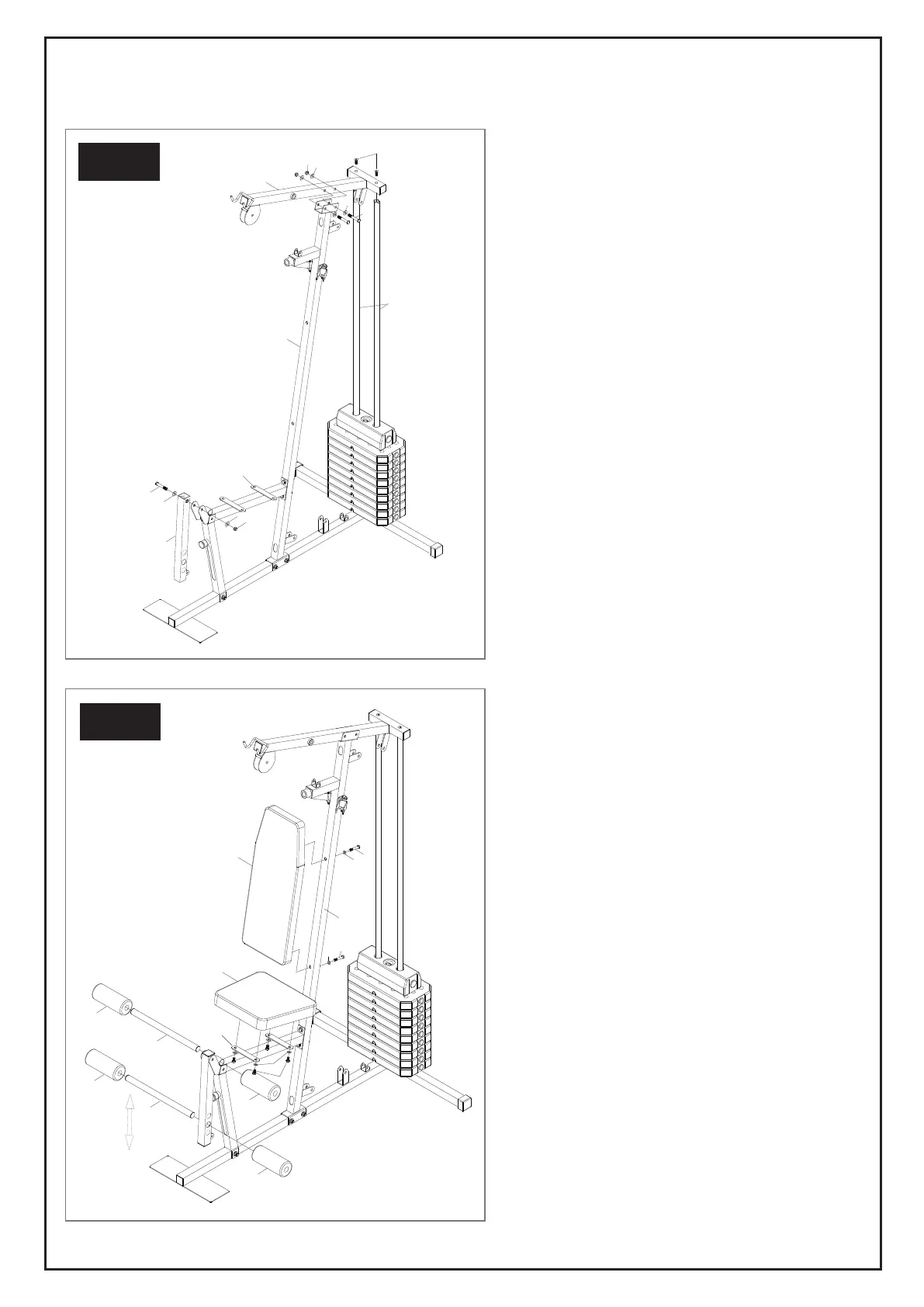

ASSEMBLY STEPS
STEP 5:
Attach the Upper Cross Beam (9) to the Weight
Guide Tubes (3) using 2 Bolts (72).
Attach the Upper Cross Beam (9) to the Support
Frame (8) using 2 Hex Bolts (58), 4 Washers (67)
and 2 Nylon Nuts (70).
Proceed to attach the Leg Extension Frame (6) and
the Seat Base Frame (7) by using 1 Hex Bolt (58), 2
Washers (67) and 1 Nylon Nut (70).
Ensure all bolts are tight before proceeding.
STEP 6:
Attach the Back Cushion (14) to the Support Frame
(8) using 2 Hex Bolts (62) and 2 Washers (68).
Now attach the Seat Cushion (13) to the Seat Base
Frame (7) using 4 Hex Bolts (65) and 4 Washers
(68).
Insert the Foam Tube (17) into the Leg Extension
Frame (6) and the Seat Base Frame (7).
Ensure all bolts are tight before proceeding.
Slide the Leg Foam Rollers (30) onto the Foam
Tubes (17).
Leg length is different, up and down adjustment
Foam Tube(17) can adjust to the appropriate
position.
