Assembly - Blade Installation

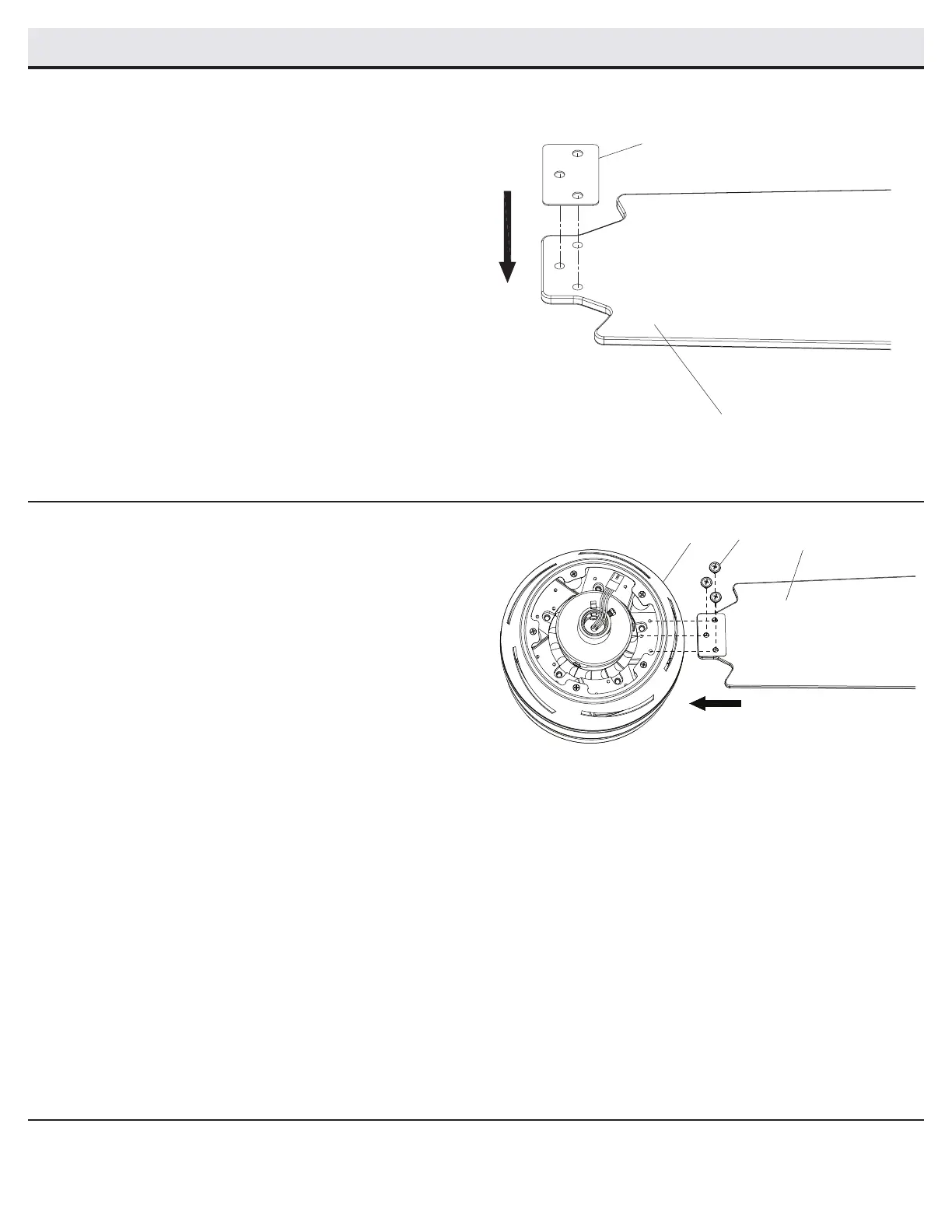

Installing the blades
□ Attach a blade (F) to the fan motor assembly (E) by inserting
the blade (F) into slots in the side of the fan motor
assembly (E) and aligning the three screws holes in the
blade with the holes in the center ywheel and secure with
screws (BB).
□ Make sure all the screws are rmly tightened.
□ Repeat these steps for the remaining blades.
2
E
BB
F
Attaching the blade support plate
□ Remove the paper backing from the adhesive lm on the
back side of the blade support plate (J).
□ With the adhesive side of the support plate (J) facing towards
the blade (F), align the three holes in the blade (F) with the
three holes on the support plate (J) and rmly press the
support plate (J) to the blade (F).
□ Repeat these steps for the remaining support plates.
1
J
F
