7
HANDLE

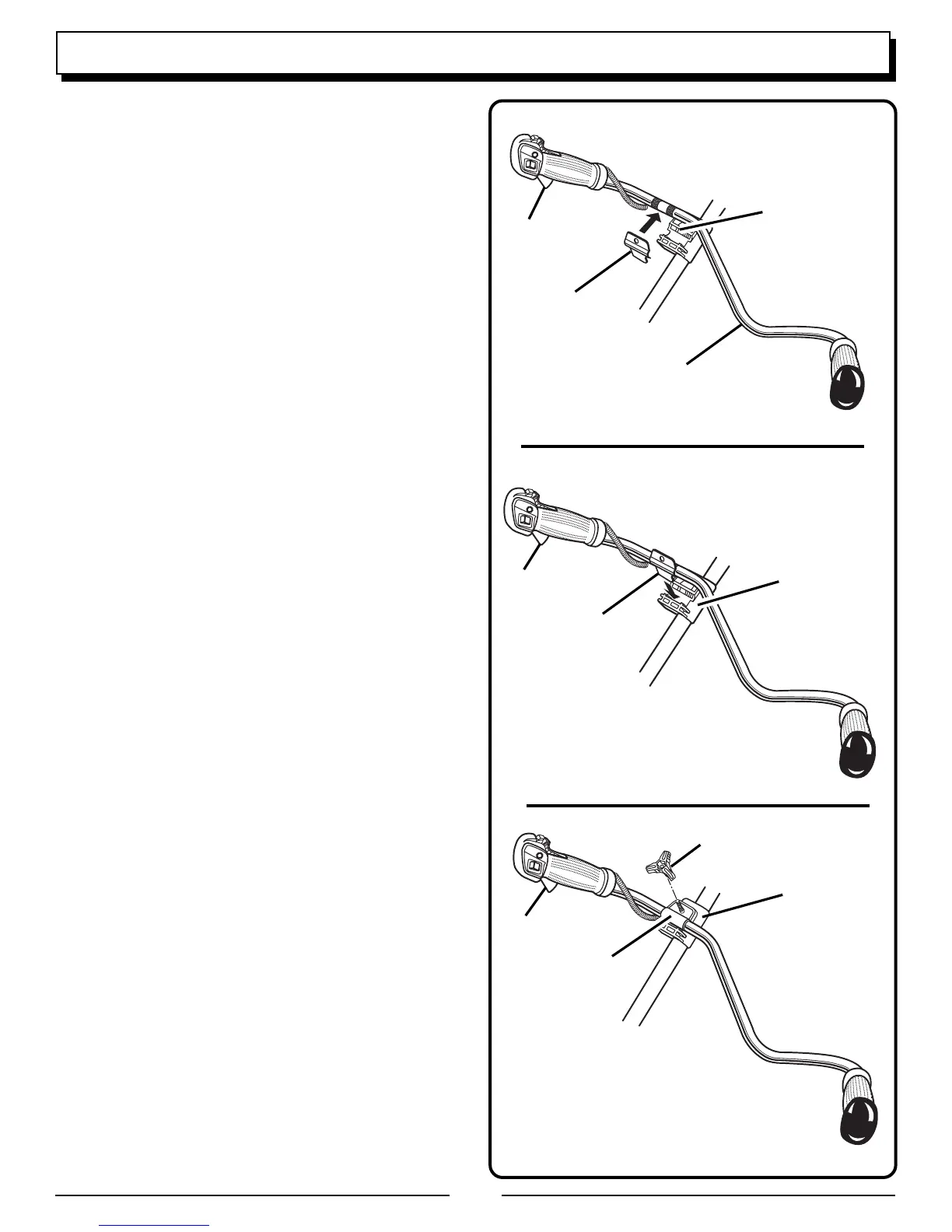

See Figure 2.
1. Place the handlebar in the bottom clamp located on the
shaft housing.
NOTE: The throttle trigger must be mounted to the
operator’s right side.
2. Insert the square tab of top clamp into the mounting hole
of the bottom clamp.
3. Adjust the handlebar for best operator control in a
comfortable upright position.
4. Install the knob and tighten securely.
BOTTOM
CLAMP
TOP CLAMP
THROTTLE
TRIGGER
Fig. 2
KNOB
BOTTOM
CLAMP
TOP CLAMP
THROTTLE
TRIGGER
BOTTOM
CLAMP
TOP CLAMP
THROTTLE
TRIGGER
ASSEMBLY
HANDLEBAR
