Homelite HG5700 Series User Manual

Page 10 — English
ON
OFF
PRODUCT SPECIFICATIONS
ENGINE
Engine Type .................................................. 4 Stroke, OHV
Cooling System ...................................................Forced Air
Starting System ......................................................... Recoil
Ignition System ............................................................T.C.I.
Spark Plug .....................................................NGK BPR4ES
Engine Lubricant Volume...........................................1.1 qt.
Fuel Volume ................................................................ 7 gal.
FEATURES

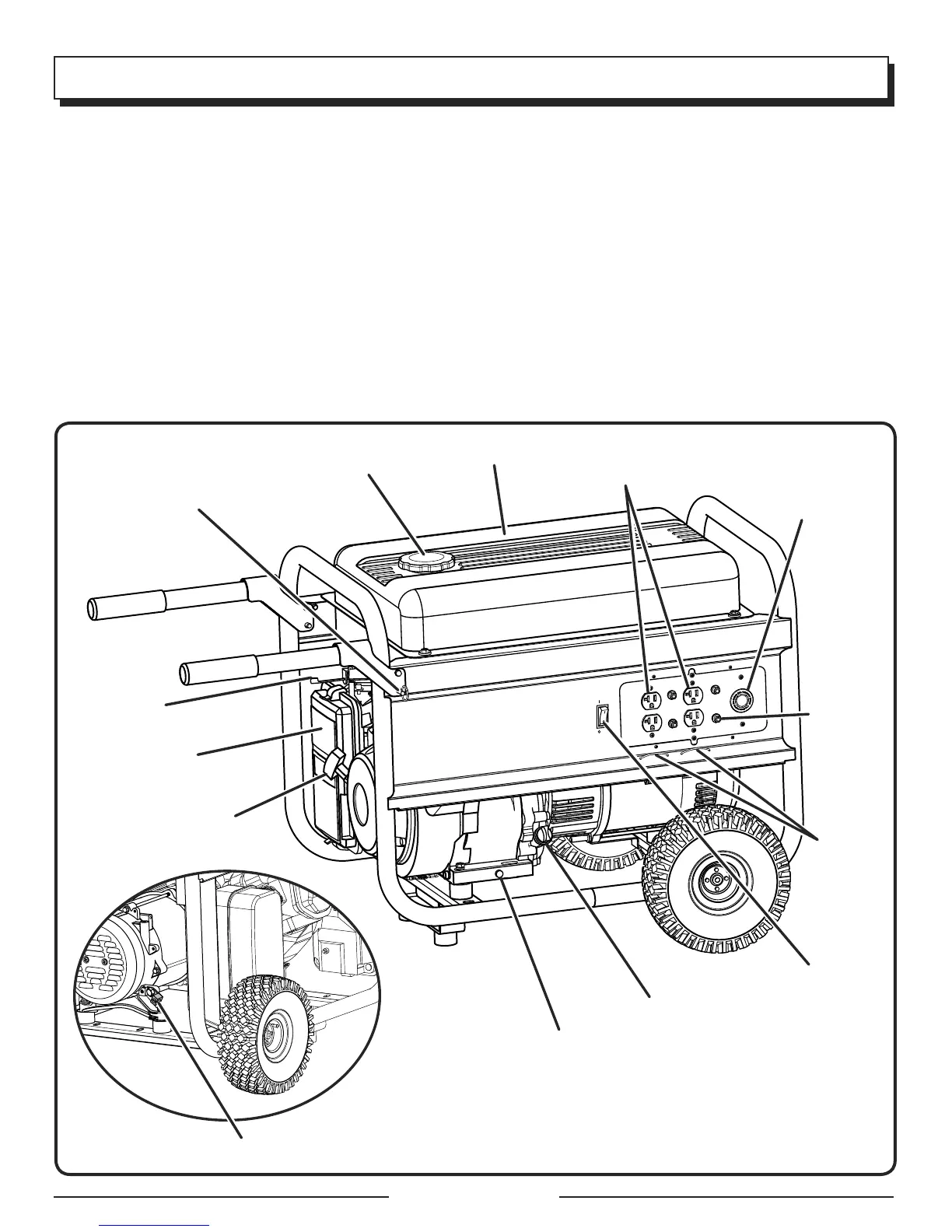

Fig. 1
recoil starter
grip
air filter
choke
lever
ac
circUit
Breaker
240 volt ac
30
aMp
receptacle
120 volt ac
20 aMp
receptacles
f
Uel tank
oil cap/ dipstick
oil drainage
B
olt
fUel cap
GENERATOR
Rated Voltage .....................................................120V/240V
Rated Amps ................................................. 47.5 A/23.75 A
Rated Output ..........................................................5,700 W
Maximum Output....................................................7,125 W
Rated Frequency ........................................................60 Hz
D
IMENSIONS
Length ..................................................................... 28.5 in.
Width ................................................................... 20.875 in.
Height .................................................................... 24.25 in.
Weight .................................................................... 170 lbs.
cord
retainers
engine
switch
groUnd
terMinal
handle
lock pin

Homelite HG5700 Series Specifications

General

Brand	Homelite
Model	HG5700 Series
Category	Portable Generator
Language	English
