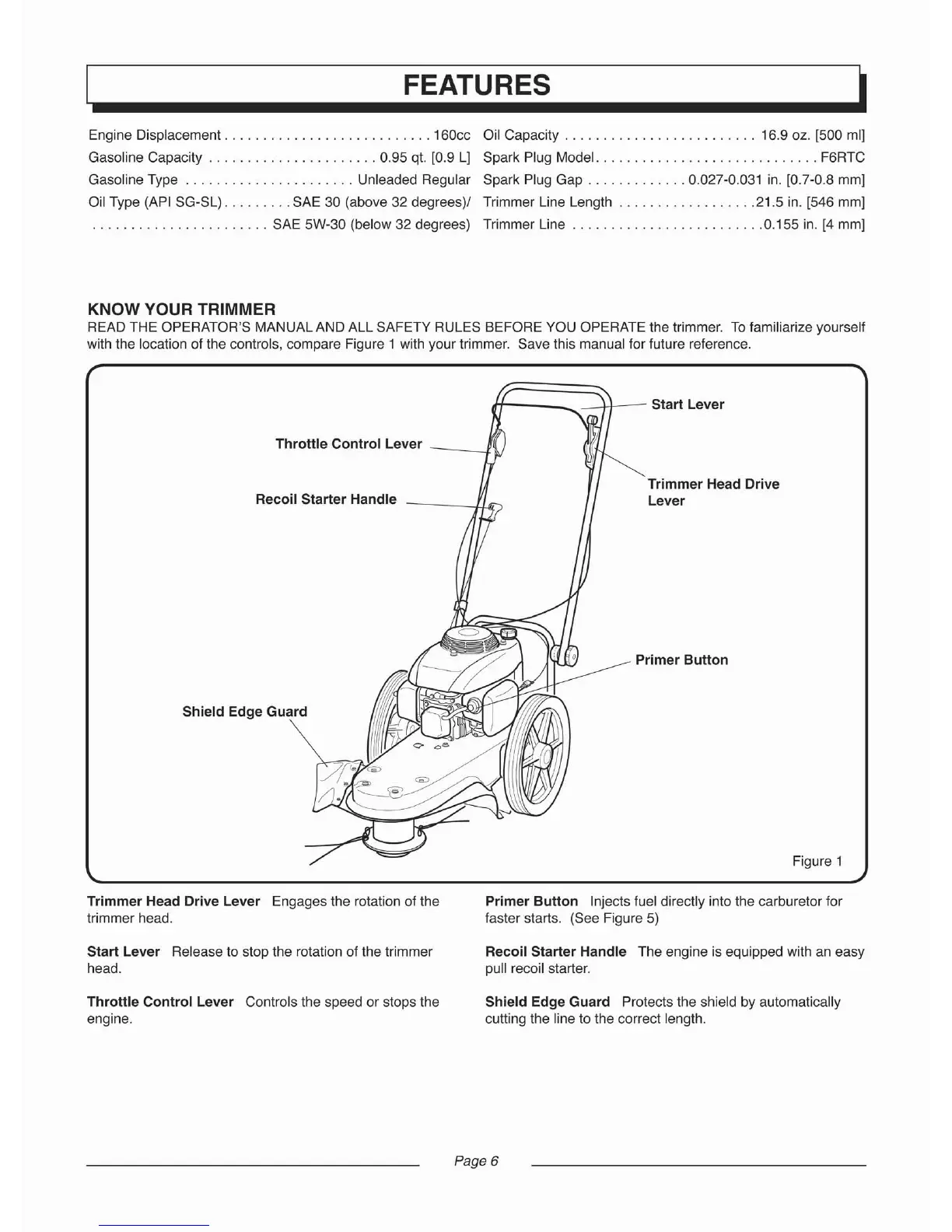

FEATURES
Engine Displaceme nt. 160cc Oil Capacity 16.9 oz. [500 ml]
Gasoline Capacity 0.95 qt. [0.9 L] Spark Plug Model. F6RTC
Gasoline Type Unleaded Regular Spark Plug Gap 0.027-0.031 in. [0.7-0.8 mm]
Oil Type (API SG-SL) SAE 30 (above 32 deg rees)1 Trimmer Line Length 21.5 in. [546 mm]
... ... ... .. . .. ...... . . . SAE 5W-30 (below 32 degrees) Trimmer Line 0.155 in. [4 mm]
KNOW YOUR TRIMMER
READ THE OPERATOR'S MANUAL AND ALL SAFETY RULES BEFORE YOU OPERATE the trimmer. To familiarize yourself
with the location of the controls, compare Figure 1 with your trimmer. Save this manual for future reference.
dt---_.. - +t--- Start Lever
Throttle Control Lever --- .n
Recoil Starter Handle
r
I
Trimmer Head Drive
Lever
Shield Edge Guard
Primer Button
Figure 1
Trimmer Head Drive Lever Engages the rotation of the
trimmer head.
Start Leve r Release to stop the rotation of the trimmer
head.
Throttle Control Lever Controls the speed or stops the
engine.
Primer Button Injects fuel directly into the carburetor for
faster starts. (See Figure 5)
Recoil Starter Handle The engine is equipped with an easy
pull recoil starter.
Shield E dge Guard Protects the shield by automatically
cutting the line to the correct length.
Page 6
