NOTE: You may need to slightly rotate pole from side to
side until it locks into place.
Lower the threaded collar onto the threaded base and
rotate clockwise to secure.
WARNING:
Failure to lock telescoping pole as directed above could
result in serious injury or death.
ASSEMBLY

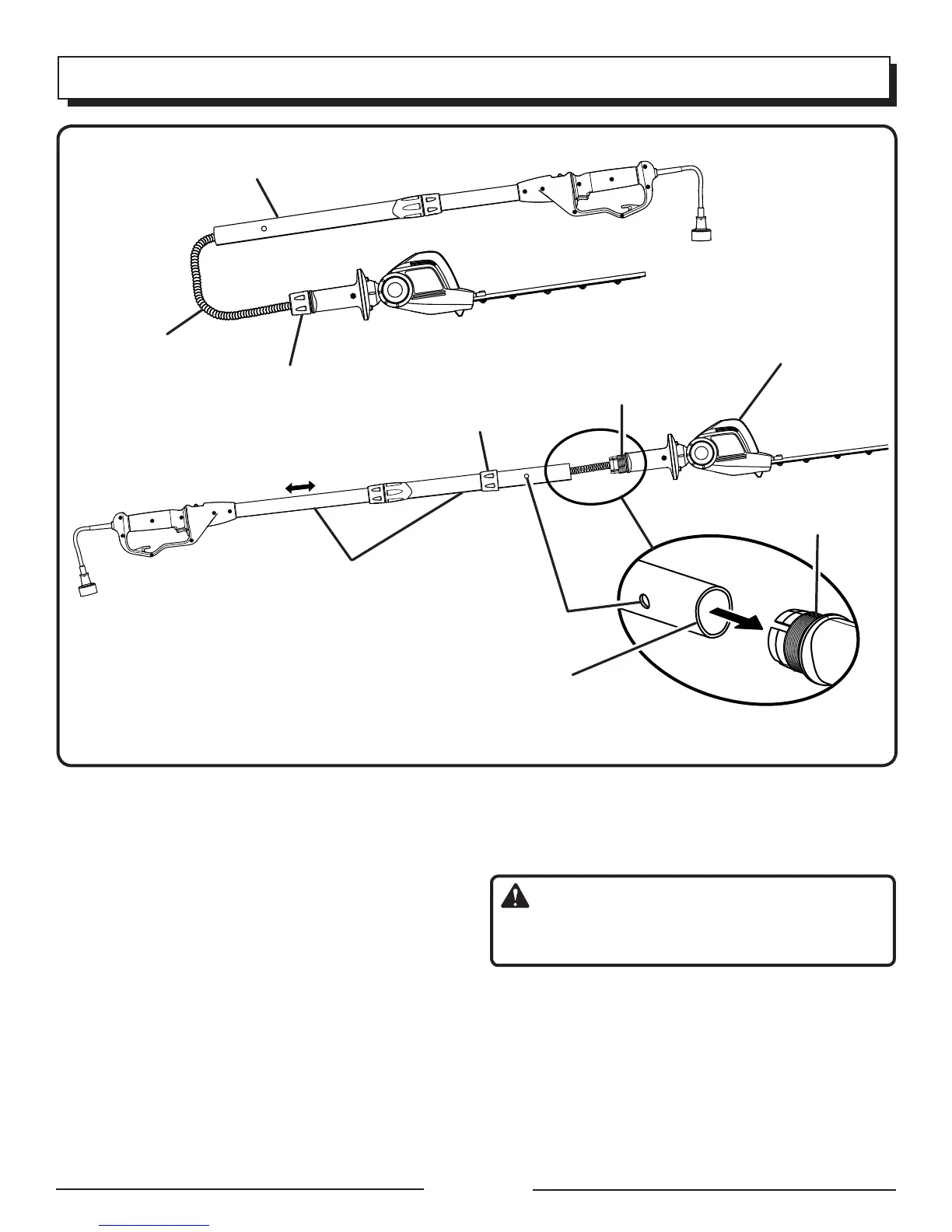

Fig. 3
threaded base
cord
packaged tool
egg-shaped pole
lock hole
telescoping pole
(extended)
threaded
collar
threaded collar
(pulled back)
trimmer head
threaded base
ASSEMBLING THE TOOL
See Figure 3.
Before using the pole hedge trimmer, a one-time assembly
is required.
The telescoping pole and trimmer head come unassembled.
Remove from packaging and extend telescoping pole to
its longest operating position as shown in Figure 6 in the
Operation section of this manual.
Unscrew the threaded collar from trimmer head base and
pull back over the cord to the extended telescoping pole
as shown.
Insert the telescoping pole into the trimmer head threaded
base until the lock holes click into place. The tubes are
egg-shaped and will only install one way. The threaded
base will spread open during assembly.
