Mounting
5 Mounting
5.1 General notes on installation
The powerful lens (A) of the presence sensor can reliably
detect smallest movements, like a hand or head move-
ment, within a close detection range of 3.5 m. Larger
movements like walking movements of people can be
detected in the entire detection range. With a detection
angle of 105°, a range of up to 7 m can be achieved.

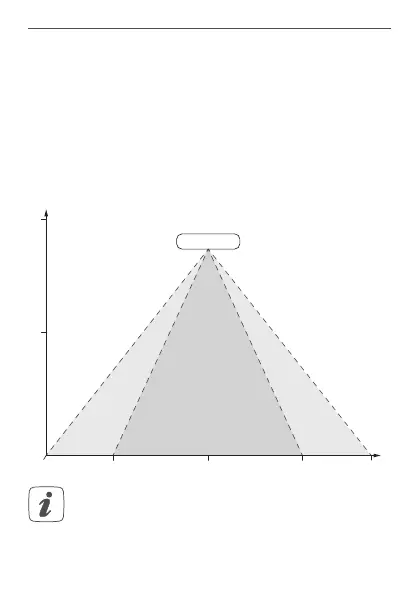

mounting height in m
detection range in m
3.0
1.75
0
5.25
7.0
3.5
wide
range
wide
range
close
range
presence sensor
To be able to use the entire scope of functions of
the presence sensor (smallest movements in the
close range) we recommend to not exceed a
mounting height of 3 m. However, operation of
