Assembly Instructions 2/9

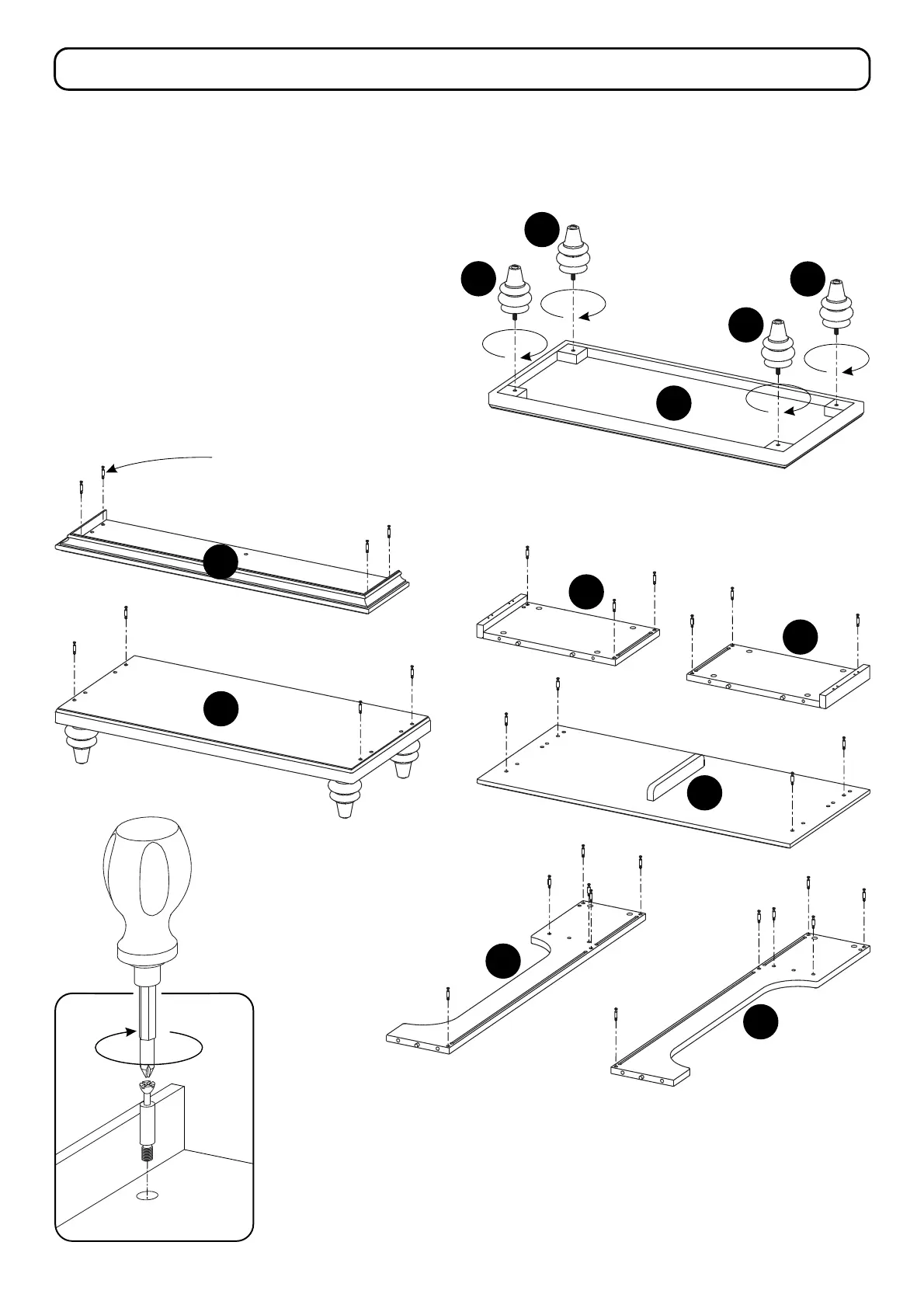

STEP 2
Insert Cam Lock Screws into pre-drilled holes in Top (A), Seat (G),
Bottom (H) and Side Panels (C), (D), (S), (T). (See Figure 1)
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
The unit must be level to work properly. Use the included adjustable levelers to level.
STEP 1
Place Bottom (H) upside down on a soft cloth.
Attach Feet (F) to Bottom (H).
F
F
F
F
C
D
S
T
H
H
Cam Lock Screw
Figure 1
G
A
To Next Page
