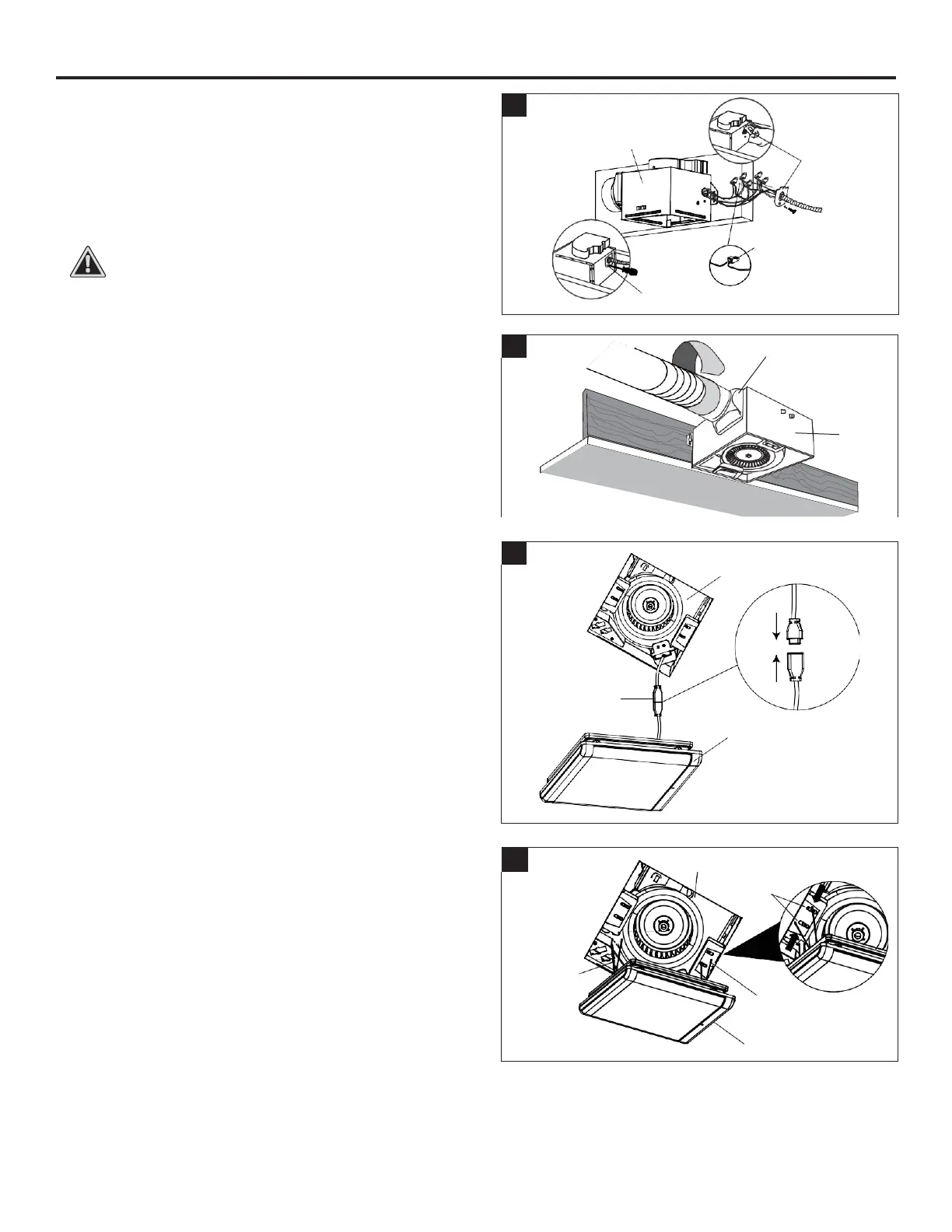

NEW CONSTRUCTION INSTALLATION INSTRUCTIONS (continued)
5. Remove the wiring box cover from the fan housing (A). Pull the
house wires through the hole in the wiring box cover. Using the
quick connectors, connect the house wiring from the wall switch
to the fan housing (A). 14 AWG is the smallest conductor that
should be used for branch-circuit wiring. Please refer to the
wiring diagrams on page 5 to ensure proper wire connections
are made.
Carefully push the wire connections into the wiring box housing
and reattach the wiring box cover.
CAUTION: If your electrical wires do not match the colors
listed, consult a licensed electrician to determine what
each house wire represents before connecting the fan.
6. Connect a 4 in. circular duct to the duct connector on the fan
housing (A), securing it with duct tape or a clamp. Vent the duct
to the outside.
Finish ceiling work. The ceiling hole should be aligned with
the edge of the fan housing (A).
7. Join the connectors from the fan housing (A) to the grille (B).
The grille (B) must be connected BEFORE turning on power
to the fan.
8. Attach grille (B) by pinching the mounting springs and inserting
them into the narrow rectangular slots in the fan housing (A).
Turn on power source. Test the unit.
