Honda 08E91-E22-100A - Page 13

© 2008 American Honda Motor Co., Inc. – All Rights Reserved. AII 38576-38846 (0802) 13 of 23

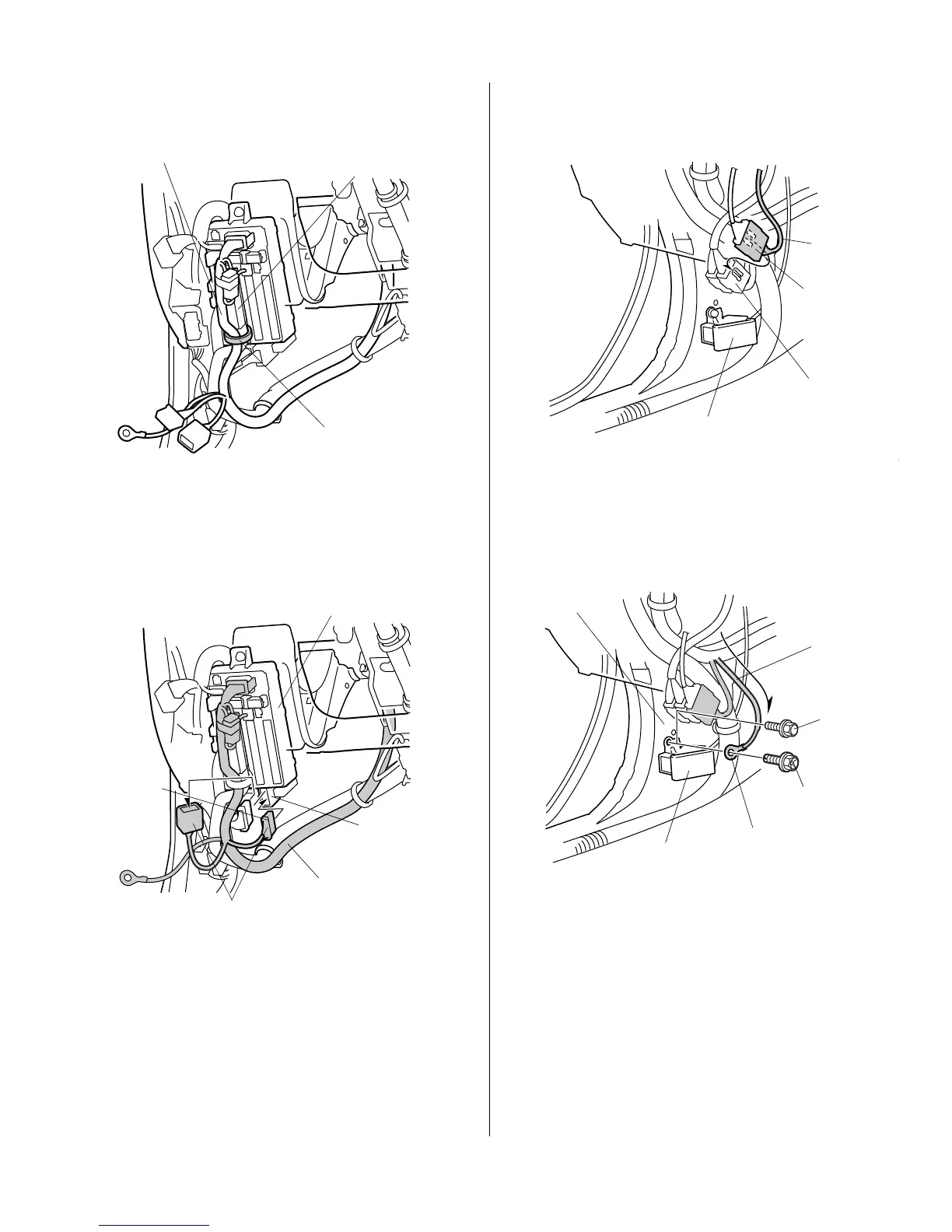

42. Loosely attach the engine starter harness to the
vehicle harness with one wire tie.
43. Disconnect the vehicle 20-pin connector from the
fuse box, and plug it into the engine starter harness
20-pin connector. Plug the remaining engine starter
harness into fuse box 20-pin connector.
6D1824AY
VEHICLE HARNESS
ENGINE STARTER
HARNESS
WIRE TIE
(Attach loosely.)
6D1825AY
FUSE BOX
VEHICLE
20-PIN
CONNECTOR
ENGINE STARTER HARNESS
20-PIN CONNECTOR
ENGINE STARTER
HARNESS
VEHICLE
20-PIN
CONNECTOR
44. Attach the clip from the engine starter harness
connector to the clip on the vehicle connector.
45. Remove and discard the upper hood opener bolt,
and install the ground bolt supplied with the ground
terminal attached.
6D18260Y
CLIP
HOOD
OPENER
VEHICLE
CONNECTOR
ENGINE
STARTER
HARNESS
6D18270Y
VEHICLE
BOLT
(Discard.)
HOOD
OPENER
VEHICLE
PANEL
GROUND TERMINAL
GROUND
BOLT
ENGINE
STARTER
HARNESS
