12 of 23 AII 38576-38846 (0802) © 2008 American Honda Motor Co., Inc. – All Rights Reserved.

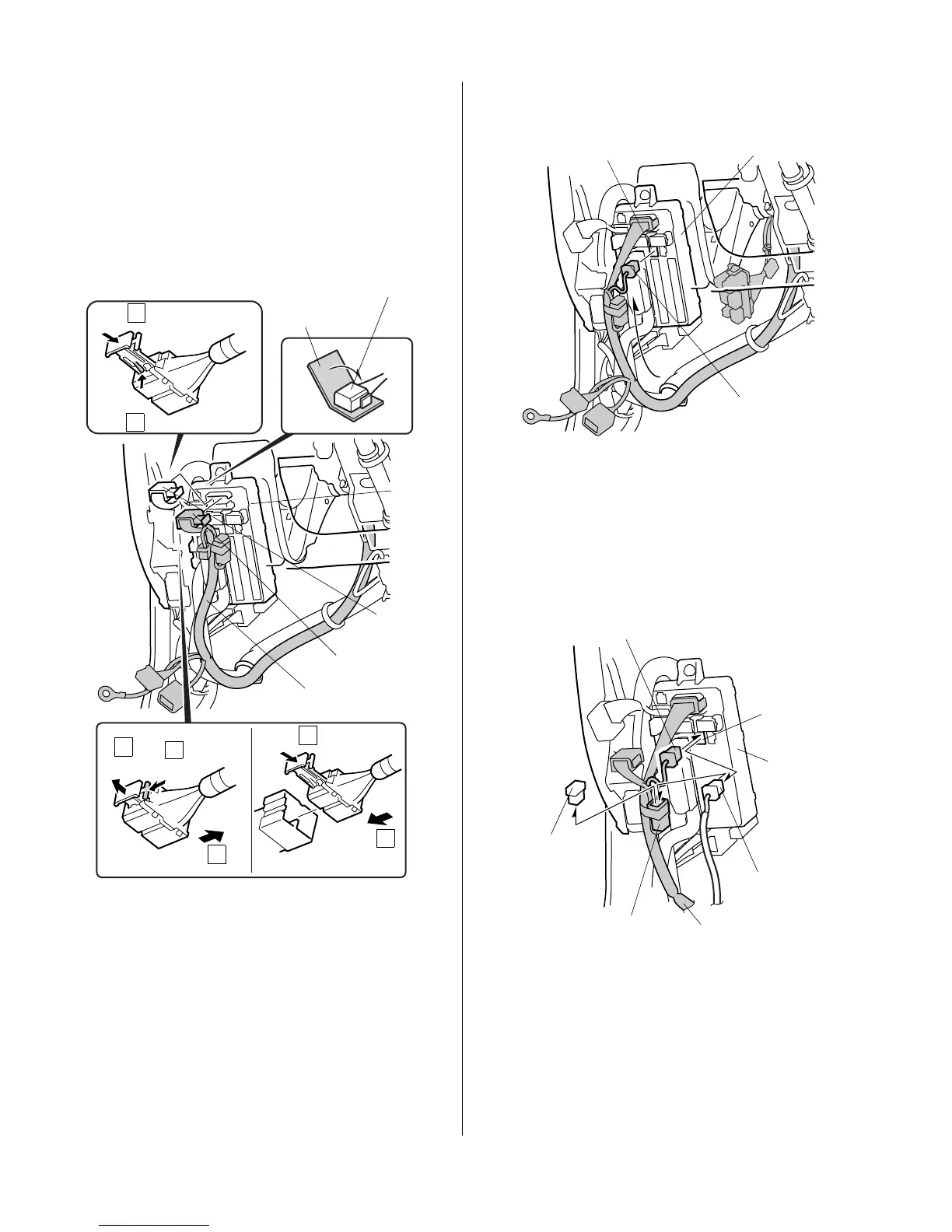

40. Disconnect the vehicle 5-pin connector from the fuse
box. Plug the engine starter harness 5-pin connector
into the fuse box 5-pin connector. Wrap one
urethane tape around the vehicle 5-pin connector.
NOTE: Check that the engine starter harness 5-pin
connector is connected to the vehicle connector and
locked securely. A loose connector can cause the
engine to stall.
6D1823DY
FUSE
BOX
VEHICLE
5-PIN
CONNECTOR
5-PIN
CONNECTOR
Unlock Connector
VEHICLE
5-PIN
CONNECTOR
Push.
Pull.
Push.
ENGINE STARTER
HARNESS
URETHANE
TAPE
Lock Connector
Push.
Lock Connector
Push.
1
2
3
1
2
1
2
41. Plug the engine starter harness 12-pin connector
into the fuse box 12-pin connector.
NOTE: If the 12-pin connector is already being used,
unplug the 12-pin connector from the fuse box, and
plug the engine starter harness12-pin into the fuse
box. Remove and discard the dummy connector
from the engine starter harness and plug 12-pin
connector into the engine starter harness.
6D1821BY
FUSE BOX 12-PIN
CONNECTOR
FUSE BOX
12-PIN CONNECTOR
ENGINE STARTER
HARNESS
6D1822BY
FUSE BOX
12-PIN
CONNECTOR
12-PIN CONNECTOR
12-PIN CONNECTOR
DUMMY
CONNECTOR
FUSE
BOX
OTHER
ACCESSORY
CONNECTOR
ENGINE
STARTER HARNESS
