© 2008 American Honda Motor Co., Inc. – All Rights Reserved. AII 38576-38846 (0802) 11 of 23

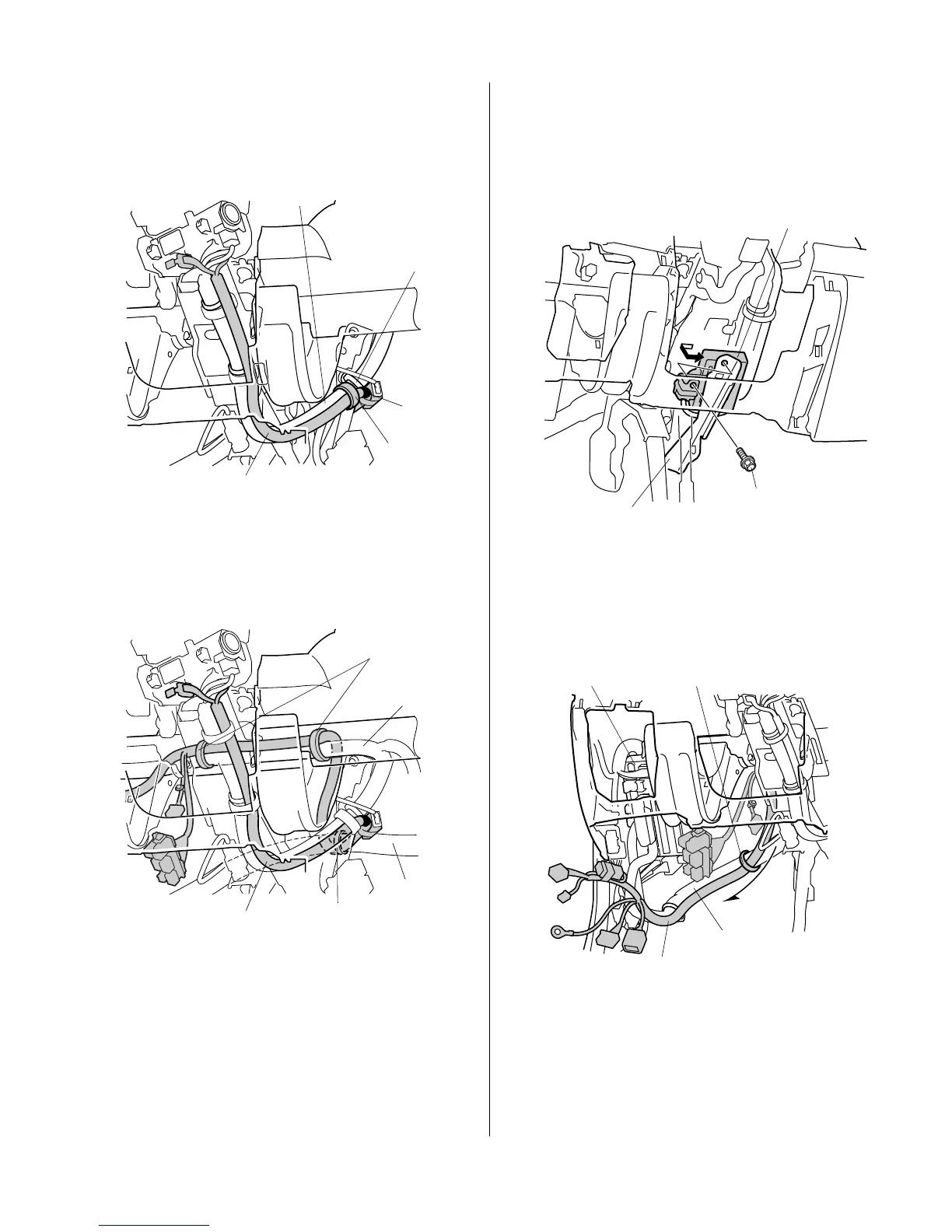

34. Align the green tape on the engine starter harness
with the clip on the vehicle harness, and secure the
engine starter harness to the vehicle harness with
one wire tie.
35. Near the connector, secure the engine starter
harness to the vehicle harness with one wire tie.
6D1811AY
VEHICLE
HARNESS
ENGINE
STARTER
HARNESS
WIRE TIE
VEHICLE
CLIP
GREEN
TAPE
6D1819EY
ENGINE STARTER
HARNESS
VEHICLE
HARNESS
WIRE TIE
VEHICLE
HARNESS
2 LONG
WIRE TIES
36. Secure the engine starter harness to the vehicle
harness with two long wire ties at the locations
shown.
37. Reinstall the vehicle unit to the vehicle bracket using
the vehicle bolt removed in step 24.
38. Route the engine starter harness along the vehicle
harness to the front of the fuse box.
39. Loosely attach the engine starter harness to the
vehicle harness with one wire tie.
721503AY
VEHICLE
BRACKET
VEHICLE
UNIT
TPMS CONTROL UNIT BOLT
(Removed in step 24.)
6D1820AY
WIRE TIE
(Loosely secure.)
FUSE BOX
ENGINE
STARTER
HARNESS
VEHICLE
HARNESS
