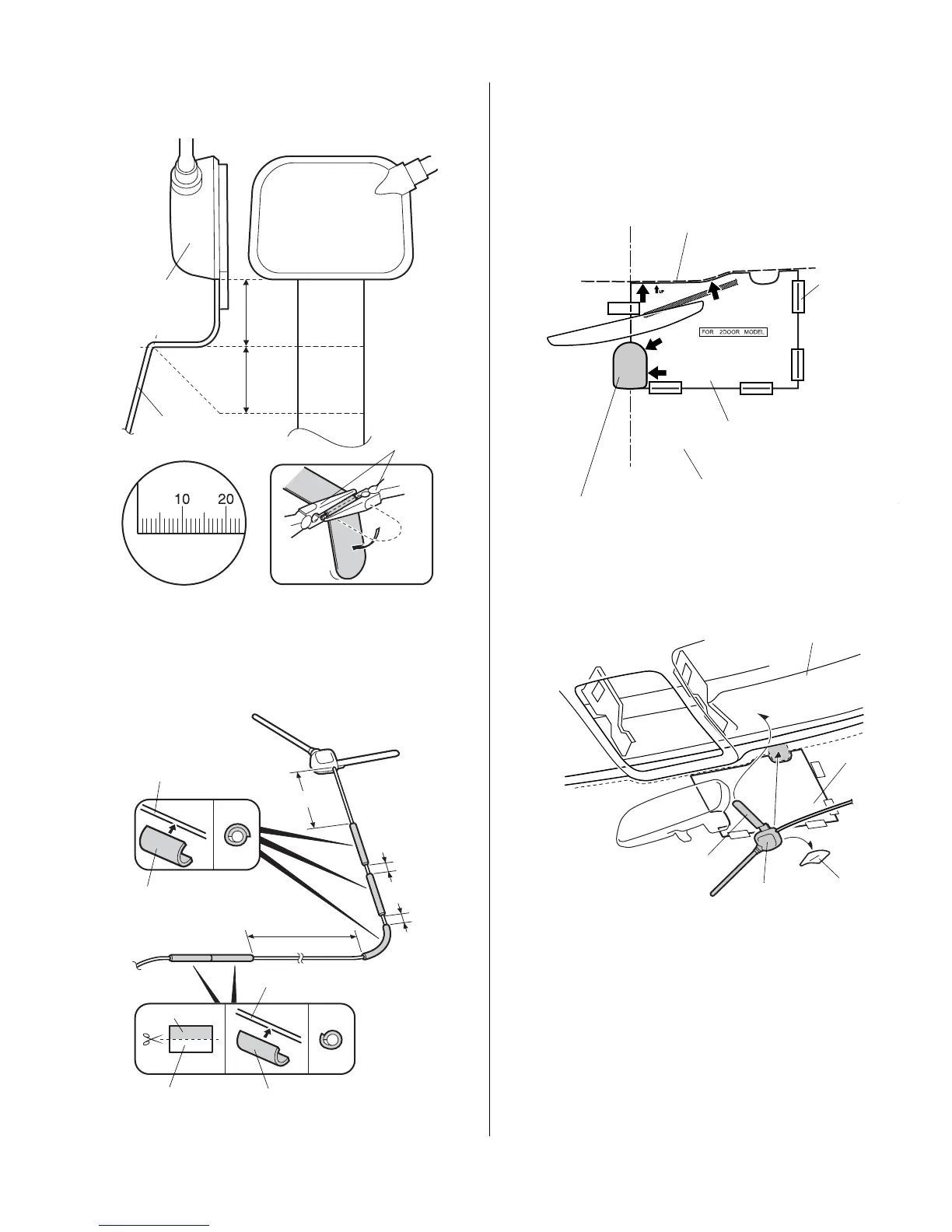

50. Using two pairs of needle nose pliers, bend the
antenna plate according to the dimensions shown.
51. Starting near the antenna end of the cable, wrap
three foam cushions around the antenna cable at the
measurements shown.
721508AY
ANTENNA
PLATE
15 mm
15 mm
SCALE
NEEDLE NOSE
PLIERS
7111110Y
390 mm
20 mm
20 mm
620 mm
ANTENNA
CABLE
URETHANE
TAPE
Cut.
ANTENNA CABLE
URETHANE TAPE
USE 1/2 URETHANE
52. Using scissors, cut one foam cushion in half. Wrap
the two halves of the foam cushion around the
antenna cable at the measurements shown.
53. Attach the template to the front window.
54. Using isopropyl alcohol on a shop towel, clean the
windshield where the antenna will attach.
6D1836BY
BLACK CERAMIC
TEMPLATE
CENTER
BLACK CERAMIC
of MIRROR BASE
TAPE
FRONT WINDOW
771014AB
TEMPLATE
ROOF LINING
ANTENNA
PLATE
ADHESIVE
BACKING
